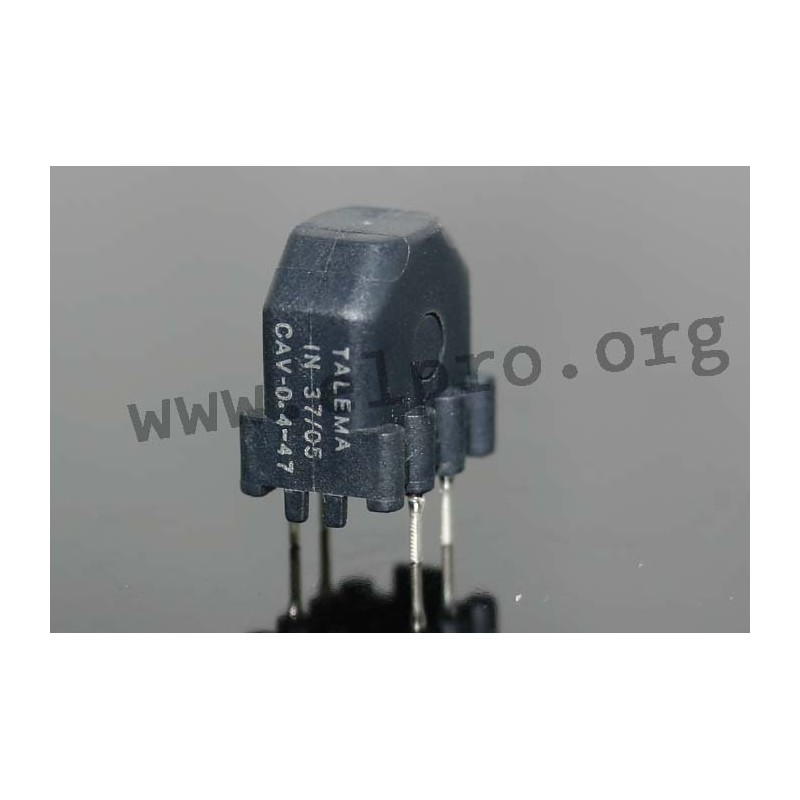

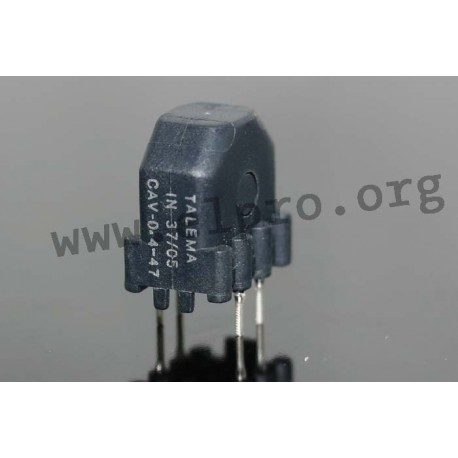

KDST 47mH/0,9A

Talema choke series CA

Current-compensated chokes in a partially pottes housing. These inductors have a vertical design and have two separate windings for a low capacitive resistance. They are suitable for an operating temperature range of -40 to +125°C and have four soldering pins (0,6x0,88mm). We offer various types of this Talema series.

  • vertical
  • partially potted
  • test voltage: 1500V AC (60sec)
  • operating temperature: -40 to +125°C
KDST_

KDST 47mH/0,9A

32467 KDST 47mH/0,9A CAV-0,9-47 CAV-0,9-47 Talema choke series CA. Current-compensated chokes in a partially pottes housing. These inductors have a vertical design and have two separate windings for a low capacitive resistance. They are suitable for an operating temperature range of -40 to +125°C and have four soldering pins (0,6x0,88mm). We offer various types of this Talema series. vertical partially potted test voltage: 1500V AC (60sec) operating temperature: -40 to +125°C

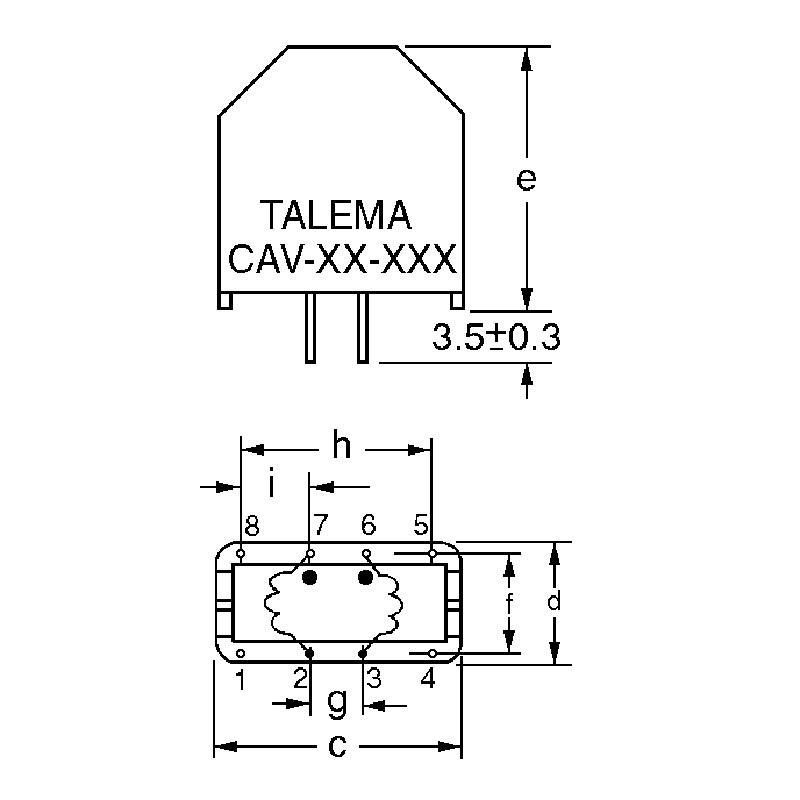

Specifications

manufacturer
Manufacturer's name CAV-0,9-47
E [mm] 35
Rated current [mA] 900
E [mm] 35
D [mm] 18
F [mm] 15
Internal resistance [mΩ] 658
G [mm] 12,5
C [mm] 32,5
Rated inductance [mH] 47
Data Sheet

Unit price

2,99 €

Stock: 400
