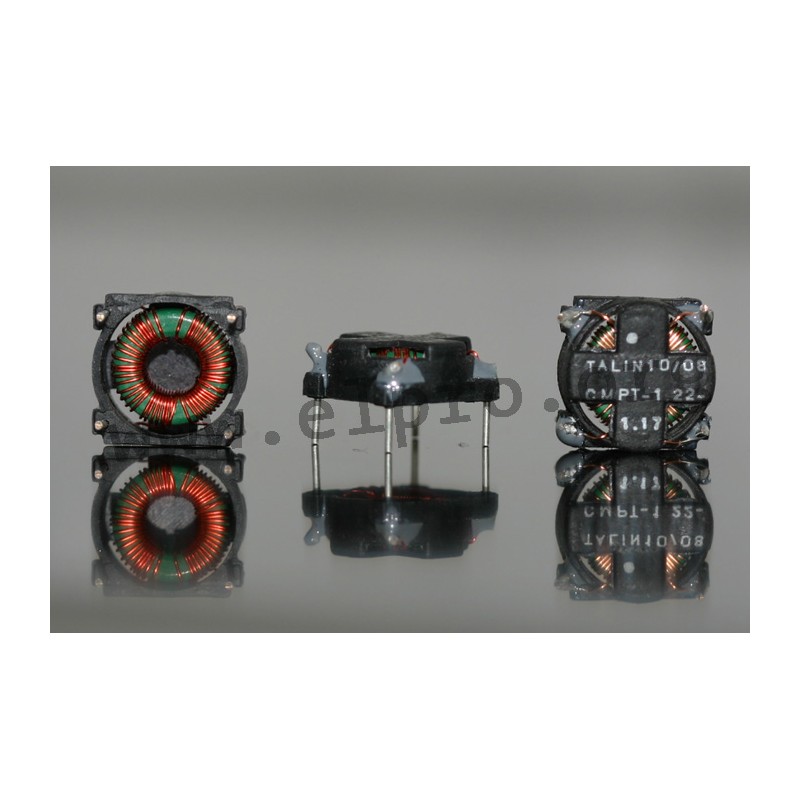

CMPT-1,63-0,88

current compensated suppression chokes

* vertical
* by Talema
* designed for DC/DC Converters
* two separated windings for minimum capacitance
* terminals through 4 tin soldered-in pins
* operating temperature -40 to 125°C
* meets lead free reflow level J-STD-020C
CMPT_

CMPT-1,63-0,88

29565 CMPT-1,63-0,88 CMPT-1.63-0.88 CMPT-1.63-0.88 current compensated suppression chokes. * vertical* by Talema* designed for DC/DC Converters* two separated windings for minimum capacitance* terminals through 4 tin soldered-in pins* operating temperature -40 to 125°C* meets lead free reflow level J-STD-020C

Specifications

manufacturer
Manufacturer's name CMPT-1.63-0.88

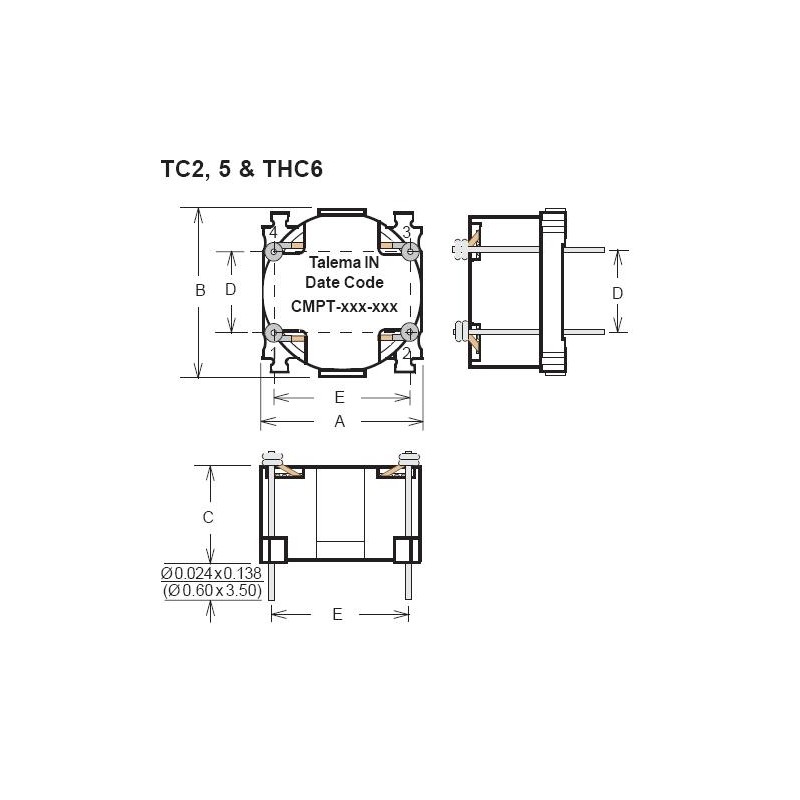

Case TC2
E [mm] 8,89mm
Rated current [mA] 1630
A [mm] 12
Width [mm] 12
E [mm] 8,89
D [mm] 10,16
Inductance [µH] 0,884
C [mm] 5,02
DC resistance [Ω] 110
Data Sheet

Unit price

3,09 €

Stock: 360

Minimum order quantity 10 units or
multiples of 10.
