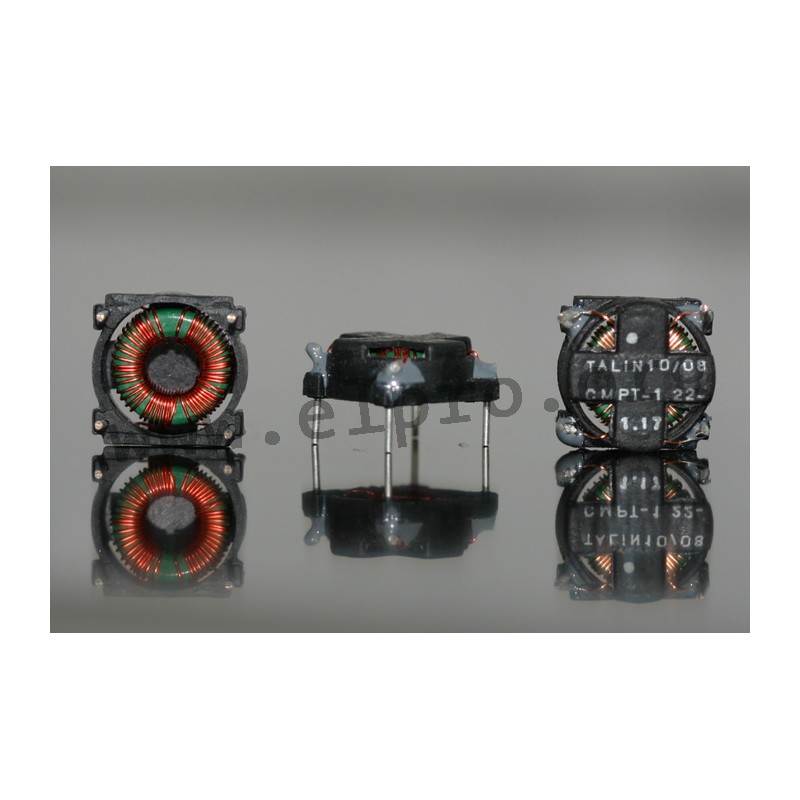

CMPT-4,70-0,77

current compensated suppression chokes

* vertical
* by Talema
* designed for DC/DC Converters
* two separated windings for minimum capacitance
* terminals through 4 tin soldered-in pins
* operating temperature -40 to 125°C
* meets lead free reflow level J-STD-020C

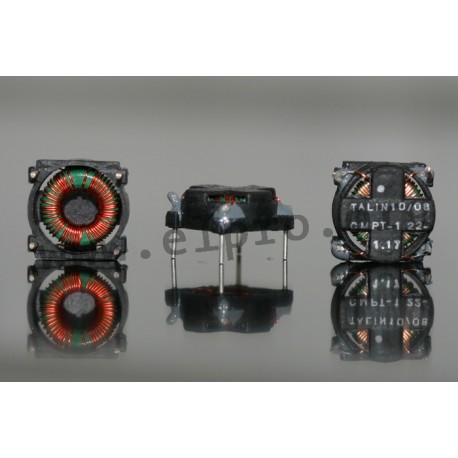

CMPT_

CMPT-4,70-0,77

29574 CMPT-4,70-0,77 CMPT-4.7-0.77 CMPT-4.7-0.77 current compensated suppression chokes. * vertical* by Talema* designed for DC/DC Converters* two separated windings for minimum capacitance* terminals through 4 tin soldered-in pins* operating temperature -40 to 125°C* meets lead free reflow level J-STD-020C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name CMPT-4.7-0.77
Case TC5
E [mm] 12,7mm
Rated current [mA] 4700
A [mm] 16,82
Width [mm] 19,31
E [mm] 12,7
D [mm] 12,7
Inductance [µH] 0,768
C [mm] 9,2
DC resistance [Ω] 40
Data Sheet

Unit price

3,09 €

Stock: 100

Minimum order quantity 10 units or
multiples of 10.
