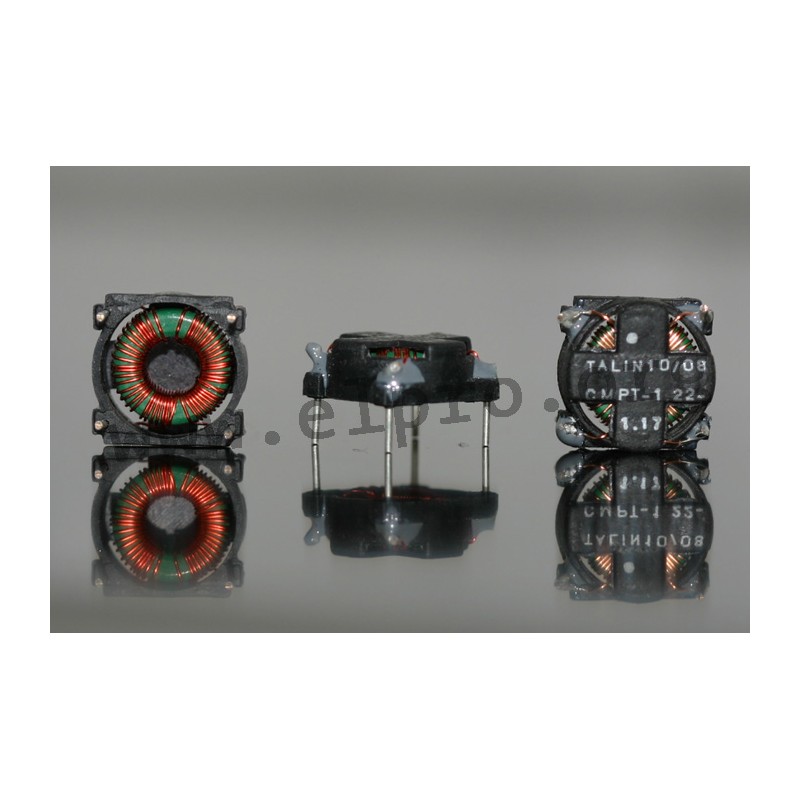

CMPT-5,60-0,59

current compensated suppression chokes

* vertical
* by Talema
* designed for DC/DC Converters
* two separated windings for minimum capacitance
* terminals through 4 tin soldered-in pins
* operating temperature -40 to 125°C
* meets lead free reflow level J-STD-020C

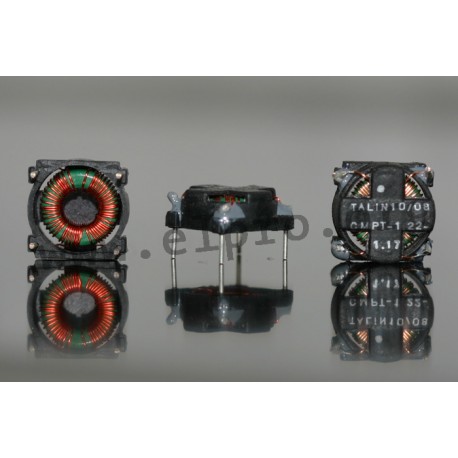

CMPT_

CMPT-5,60-0,59

29575 CMPT-5,60-0,59 CMPT-5.6-0.59 CMPT-5.6-0.59 current compensated suppression chokes. * vertical* by Talema* designed for DC/DC Converters* two separated windings for minimum capacitance* terminals through 4 tin soldered-in pins* operating temperature -40 to 125°C* meets lead free reflow level J-STD-020C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name CMPT-5.6-0.59

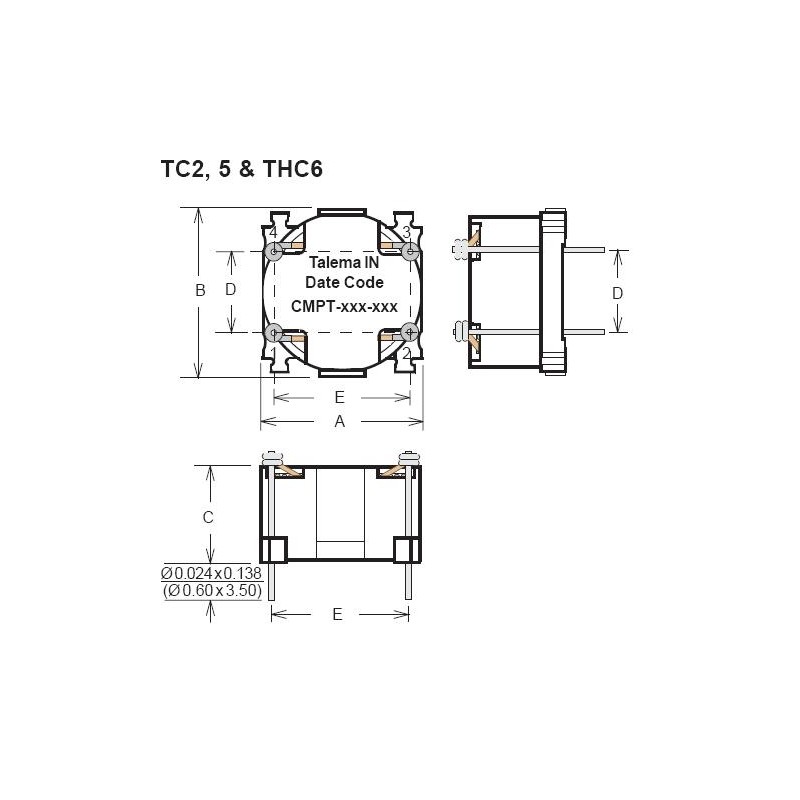

Case TC5
E [mm] 12,7mm
Rated current [mA] 5600
A [mm] 16,82
Width [mm] 19,31
E [mm] 12,7
D [mm] 12,7
Inductance [µH] 0,59
C [mm] 9,2
DC resistance [Ω] 20
Data Sheet

Unit price

3,39 €

Stock: 510

Minimum order quantity 10 units or
multiples of 10.
