> Passive elements>Inductors>Current transformers>Talema current tranformers, 1:2500, 50/60Hz, ACX series>ACX-1050

Manufacturers

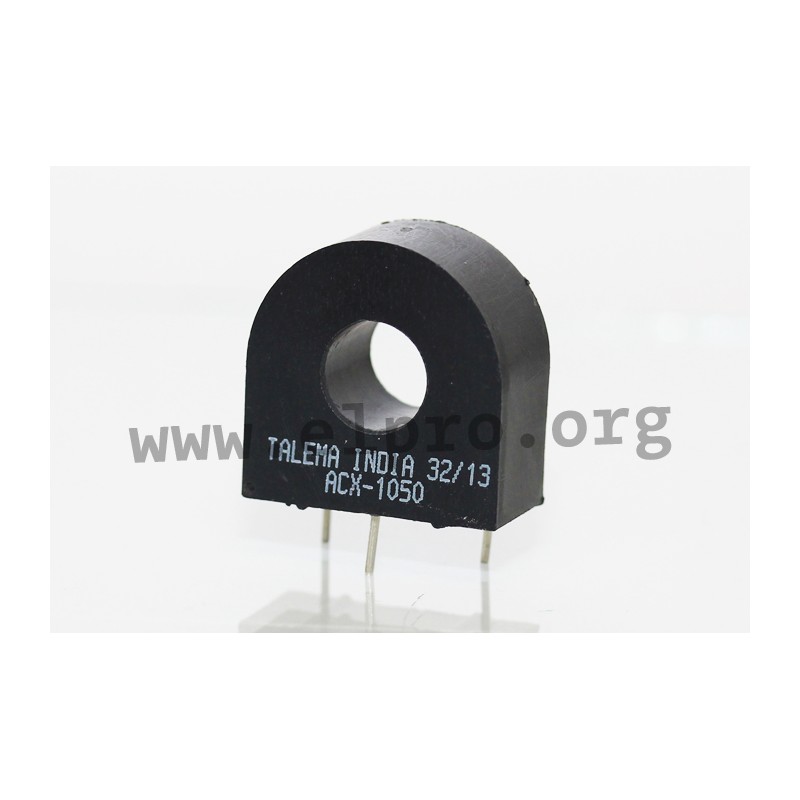

ACX-1050

current transformers ACX by Talema

* for 50/60Hz
* for optimal PCB mounting
* high output voltage
* fully potted
* series: ACX
* centerhole for current-carrying line
* for primary current range 50...150A
* 1% accuracy
* turns ratio: 2500:1
* rated burdon resistor: 33Ω
* operating temperature: -40...+85°C
* by Talema

* AC series of current transformers operate as the sealed secondary of a current transformer, while the conductor carrying the current to be measured functions as a one turn primary. Measurement accuracy can be improved by increasing the number of primary turns.

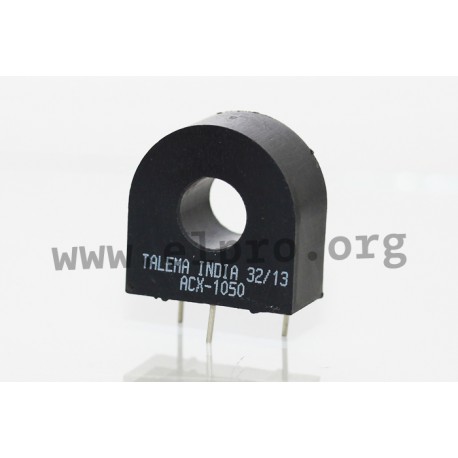

series ACX by Talema

ACX-1050

43264 ACX-1050 ACX-1050 current transformers ACX by Talema. * for 50/60Hz* for optimal PCB mounting* high output voltage* fully potted* series: ACX* centerhole for current-carrying line* for primary current range 50...150A* 1% accuracy* turns ratio: 2500:1* rated burdon resistor: 33Ω* operating temperature: -40...+85°C* by Talema* AC series of current transformers operate as the sealed secondary of a current transformer, while the conductor carrying the current to be measured functions as a one turn primary. Measurement accuracy can be improved by increasing the number of primary turns.

Specifications

manufacturer
Manufacturer's name ACX-1050

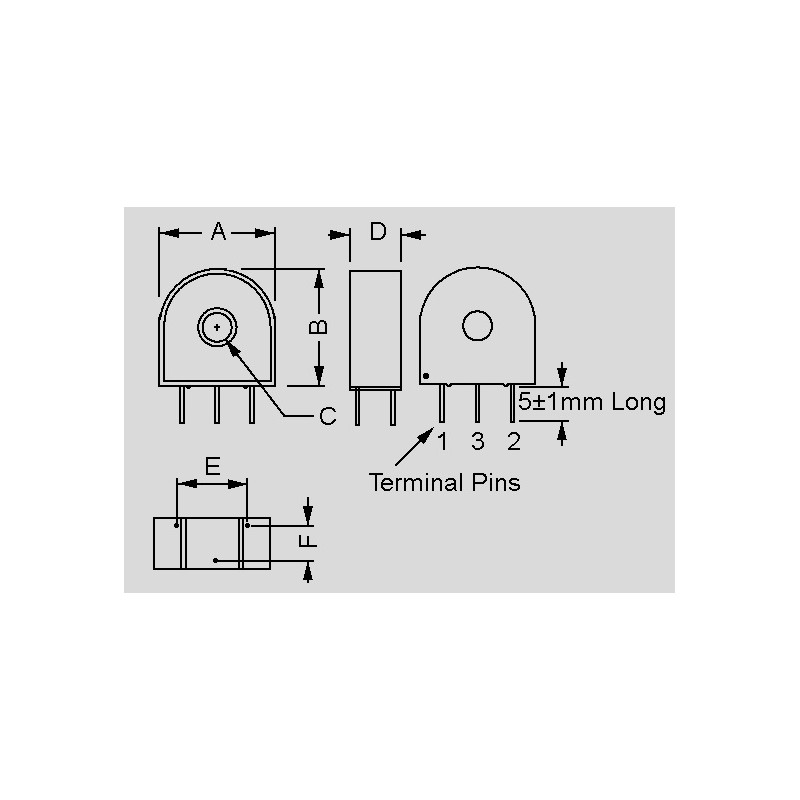

E [mm] 15,24
C Ø [mm] 9,5
Pin Ø [mm] 0,8
Pin Ø 0,8
A [mm] 23,8
E [mm] 15,24
B [mm] 23,8
D [mm] 11,12
F [mm] 7,62
Rated input current [A] 50
Data Sheet

Unit price

3,09 €

Stock: 641

Minimum order quantity 5 units or
multiples of 5.
