> Passive elements>Inductors>Current transformers>Talema current tranformers, 1:2500, 50/60Hz, ACX series>ACX-1075

Manufacturers

ACX-1075

current transformers ACX by Talema

* for 50/60Hz
* for optimal PCB mounting
* high output voltage
* fully potted
* series: ACX
* centerhole for current-carrying line
* for primary current range 50...150A
* 1% accuracy
* turns ratio: 2500:1
* rated burdon resistor: 33Ω
* operating temperature: -40...+85°C
* by Talema

* AC series of current transformers operate as the sealed secondary of a current transformer, while the conductor carrying the current to be measured functions as a one turn primary. Measurement accuracy can be improved by increasing the number of primary turns.
series ACX by Talema

ACX-1075

43265 ACX-1075 ACX-1075 current transformers ACX by Talema. * for 50/60Hz* for optimal PCB mounting* high output voltage* fully potted* series: ACX* centerhole for current-carrying line* for primary current range 50...150A* 1% accuracy* turns ratio: 2500:1* rated burdon resistor: 33Ω* operating temperature: -40...+85°C* by Talema* AC series of current transformers operate as the sealed secondary of a current transformer, while the conductor carrying the current to be measured functions as a one turn primary. Measurement accuracy can be improved by increasing the number of primary turns.

Discontinued items. Only remainder of stock available.

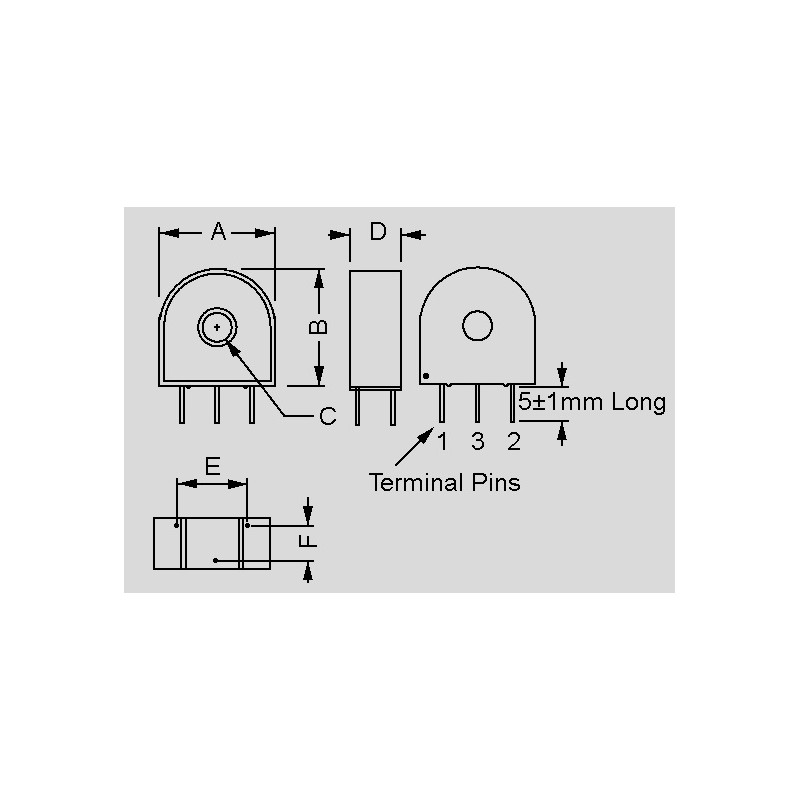

Specifications

manufacturer
Manufacturer's name ACX-1075
E [mm] 20,32
C Ø [mm] 11,4
Pin Ø [mm] 1
Pin Ø 1
A [mm] 30,2
E [mm] 20,32
B [mm] 30,2
D [mm] 14,3
F [mm] 10,16
Rated input current [A] 75
Data Sheet

Unit price

4,19 €

Stock: 454

Minimum order quantity 1 to 4 units or multiples of 5 plus 0 to 4 .
