ACX-1100

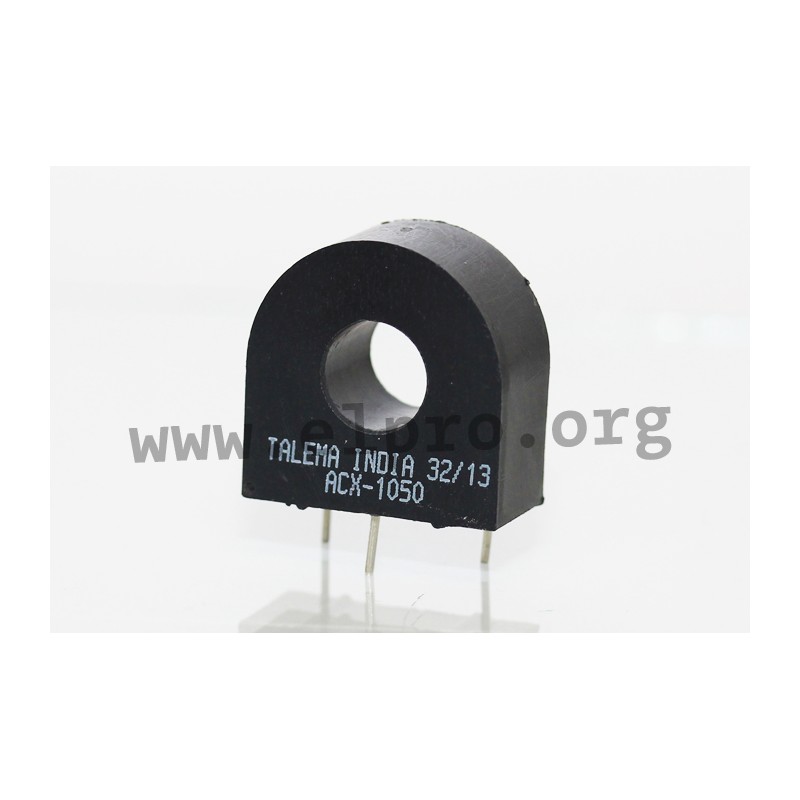

current transformers ACX by Talema

* for 50/60Hz
* for optimal PCB mounting
* high output voltage
* fully potted
* series: ACX
* centerhole for current-carrying line
* for primary current range 50...150A
* 1% accuracy
* turns ratio: 2500:1
* rated burdon resistor: 33Ω
* operating temperature: -40...+85°C
* by Talema

* AC series of current transformers operate as the sealed secondary of a current transformer, while the conductor carrying the current to be measured functions as a one turn primary. Measurement accuracy can be improved by increasing the number of primary turns.

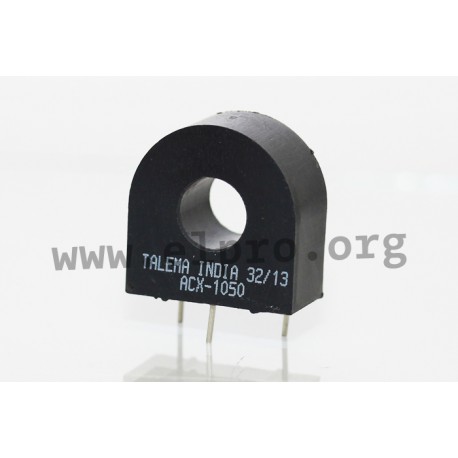

series ACX by Talema

ACX-1100

43266 ACX-1100 ACX-1100 current transformers ACX by Talema. * for 50/60Hz* for optimal PCB mounting* high output voltage* fully potted* series: ACX* centerhole for current-carrying line* for primary current range 50...150A* 1% accuracy* turns ratio: 2500:1* rated burdon resistor: 33Ω* operating temperature: -40...+85°C* by Talema* AC series of current transformers operate as the sealed secondary of a current transformer, while the conductor carrying the current to be measured functions as a one turn primary. Measurement accuracy can be improved by increasing the number of primary turns.

Specifications

manufacturer
Manufacturer's name ACX-1100

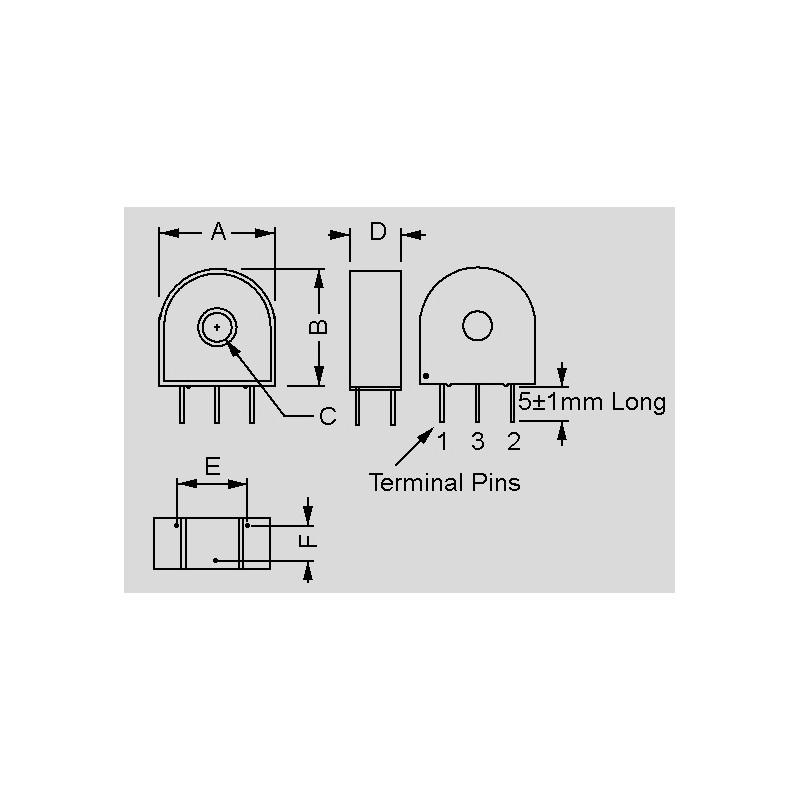

E [mm] 25,4
C Ø [mm] 14,6
Pin Ø [mm] 1
Pin Ø 1
A [mm] 34,9
E [mm] 25,4
B [mm] 34,9
D [mm] 14,3
F [mm] 10,16
Rated input current [A] 100
Data Sheet

Unit price

4,59 €

Stock: 425

Minimum order quantity 5 units or
multiples of 5.
