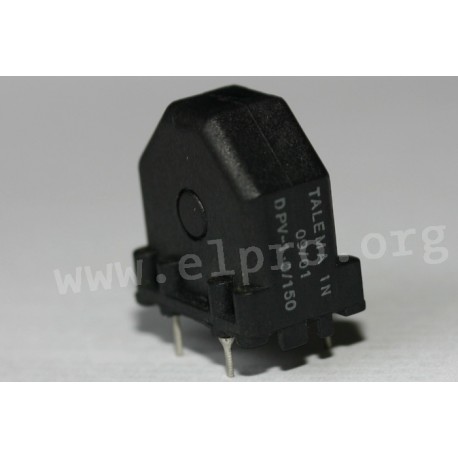

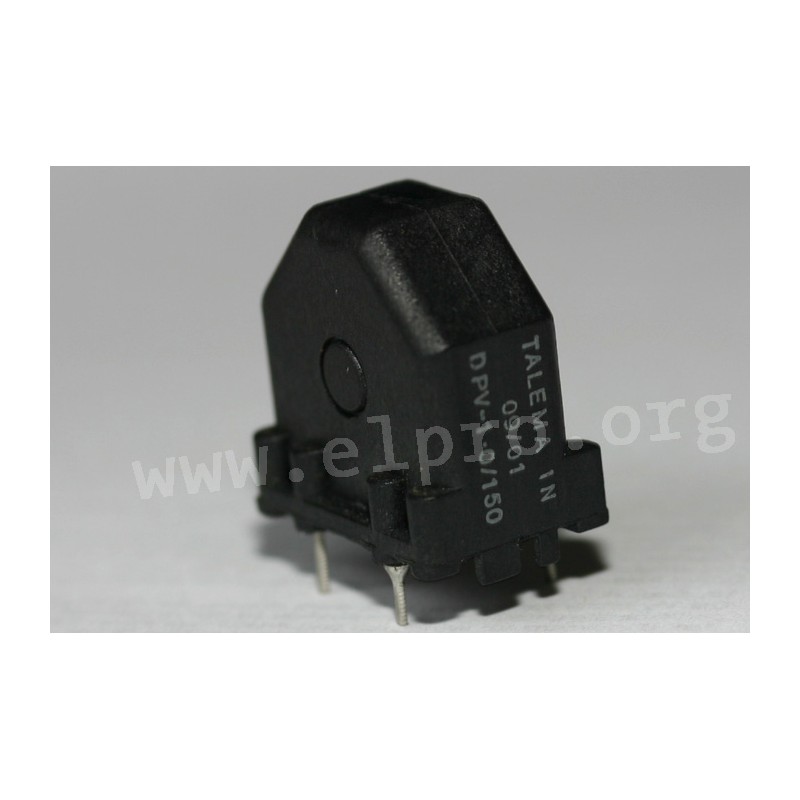

DPVG 330 µH/1 A

storage chokes for switching power supplies

* partially potted
* vertical
* by Talema
* hot solder, pre-tinned leads for easy PC board mounting
* compact size
* operating frequency to 100kHz

DPVG 330 µH/1 A

6400 DPVG 330 µH/1 A DPV-1.0-330 DPV-1.0-330 storage chokes for switching power supplies. * partially potted * vertical * by Talema* hot solder, pre-tinned leads for easy PC board mounting* compact size* operating frequency to 100kHz

Specifications

manufacturer
Manufacturer's name DPV-1.0-330

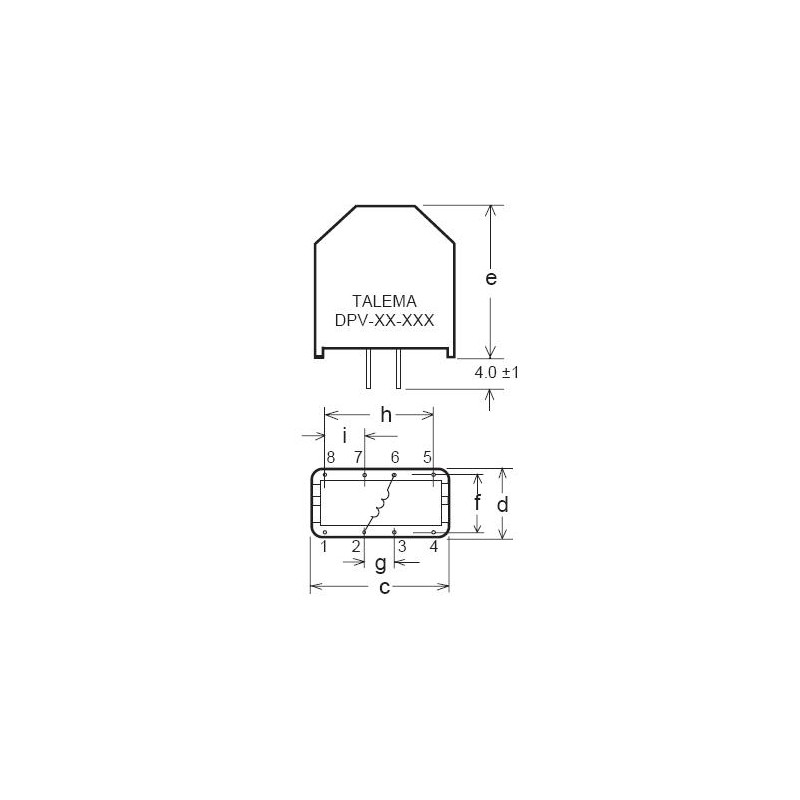

E [mm] 25mm
Rated current [mA] 1000
E [mm] 25
H [mm] 20
D [mm] 15,5
F [mm] 12,5
Internal resistance [mΩ] 193
Inductance [µH] 330
G [mm] 10
C [mm] 23
I [mm] 5
Data Sheet

Unit price

2,49 €

Stock: 3721

Minimum order quantity 1 unit or multiples of 10 plus 0 to 1 .
