SDF 250µH 1,0A

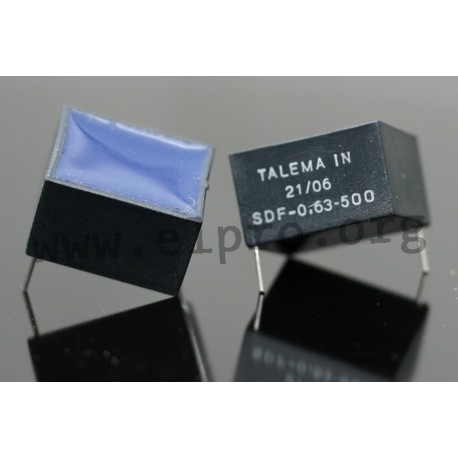

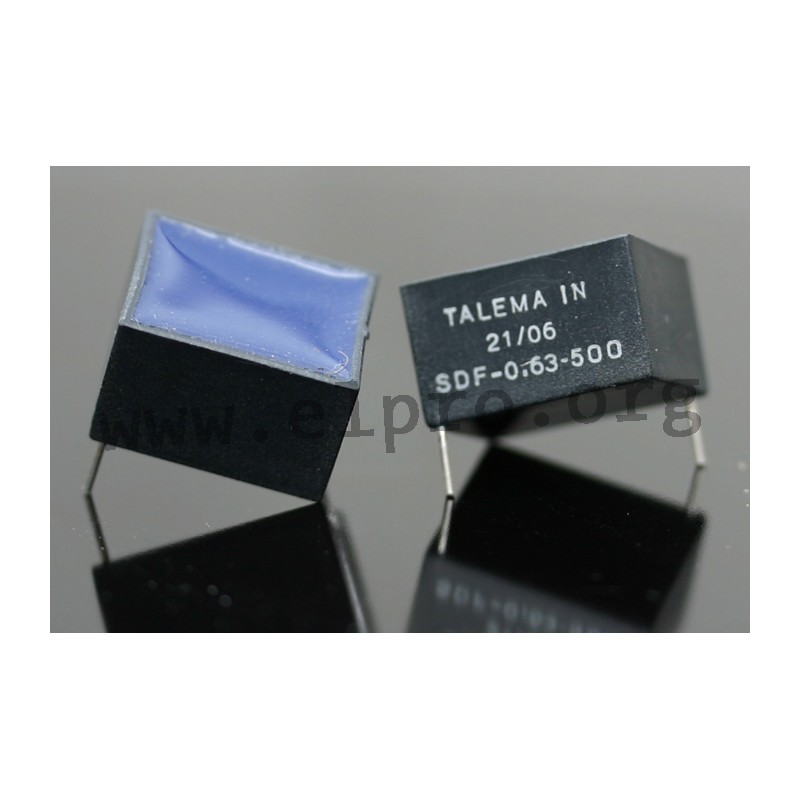

high efficiency storage chokes

* high efficiency and quality
* operating frequency up to 200kHz
* small compact size
* highly stable inductance
* meeting class GFK (-40...+125°C, humidity class F) per DIN40040

SDF 250µH 1,0A

6540 SDF 250µH 1,0A SDF-1.0-250 SDF-1.0-250 high efficiency storage chokes. * high efficiency and quality* operating frequency up to 200kHz* small compact size* highly stable inductance* meeting class GFK (-40...+125°C, humidity class F) per DIN40040

Specifications

manufacturer
Manufacturer's name SDF-1.0-250
Rated current [mA] 1000
D x L [mm] 1
Internal resistance [mΩ] 354
Inductance [µH] 250
Wire diameter [mm] 0,6
Data Sheet

Unit price

2,79 €

Stock: 1071
Further delivery:
CW 27/2025

Minimum order quantity 1 unit or multiples of 5 plus 0 to 1 .
