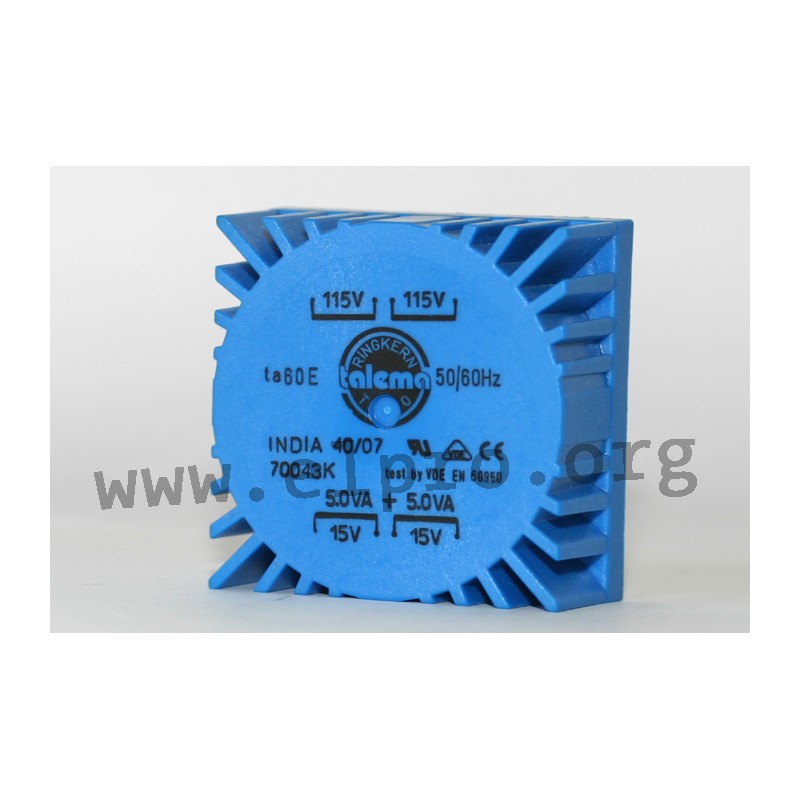

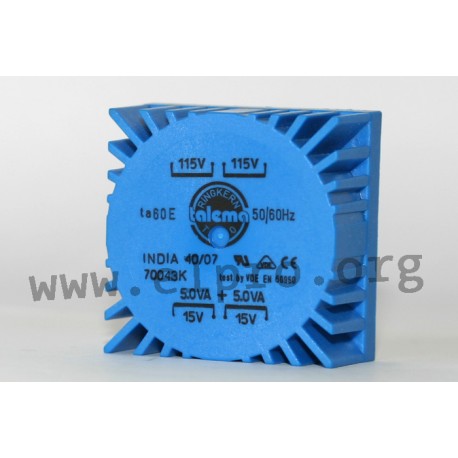

RKTV 10 VA 2x15 V

toroidal print transformers 10VA by Talema

• power: 10VA
• by Talema
• non short-circuit proof
• primary voltage (50/60Hz): 2x115V AC
• efficiency: 82%
• no-load current, I0typ.: 3mA


• test voltage (prim./sec.): 4kV
• temperature class: T60/E
• temperature rise at rated load: 24K
• protection, 230V, delayed fuse: 80mA
• insulation class: A(105°C): E(125°C)

Talema 70000K series

RKTV 10 VA 2x15 V

16510 RKTV 10 VA 2x15 V 70043K 70043K toroidal print transformers 10VA by Talema. • power: 10VA• by Talema• non short-circuit proof• primary voltage (50/60Hz): 2x115V AC• efficiency: 82%• no-load current, I0typ.: 3mA • test voltage (prim./sec.): 4kV• temperature class: T60/E• temperature rise at rated load: 24K• protection, 230V, delayed fuse: 80mA• insulation class: A(105°C): E(125°C)

Specifications

manufacturer
Manufacturer's name 70043K
Rated current [mA] 333
Secondary voltage [V] 2x15
Open circuit voltage [V] 2x18
Data Sheet

Unit price

16,79 €

Stock: 97
