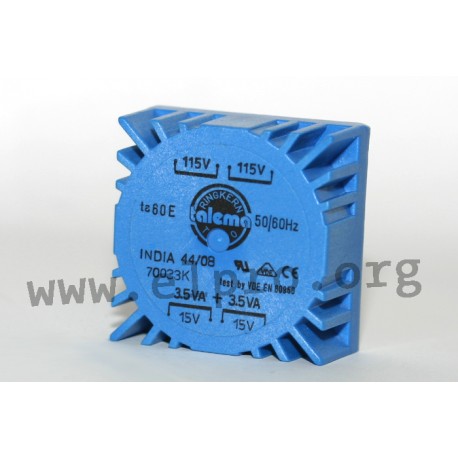

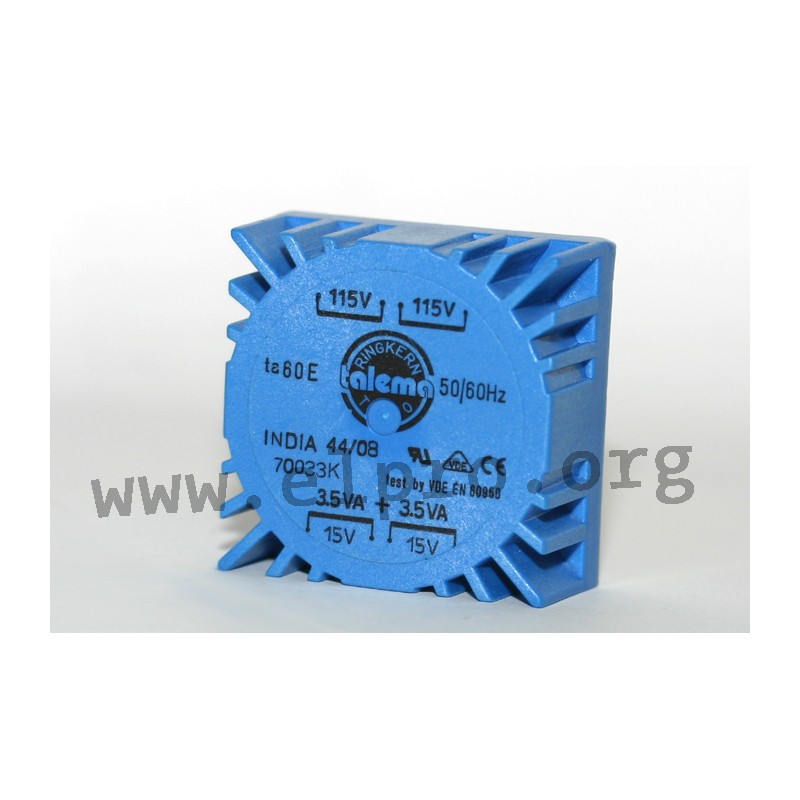

RKTV 7 VA 2x12 V

toroidal print transformers 7VA by Talema

• power: 7VA
• by Talema
• non short-circuit proof
• primary voltage (50/60Hz): 2x115V AC
• efficiency: 74%
• no-load current, I0typ.: 3mA


• test voltage (prim./sec.): 4kV
• temperature class: T60/E
• temperature rise at rated load: 25K
• protection, 230V, delayed fuse: 63mA
• insulation class: A(105°C): E(125°C)

RKTV 7 VA

RKTV 7 VA 2x12 V

16531 RKTV 7 VA 2x12 V 70032K 70032K toroidal print transformers 7VA by Talema. • power: 7VA• by Talema• non short-circuit proof• primary voltage (50/60Hz): 2x115V AC• efficiency: 74%• no-load current, I0typ.: 3mA • test voltage (prim./sec.): 4kV• temperature class: T60/E• temperature rise at rated load: 25K• protection, 230V, delayed fuse: 63mA• insulation class: A(105°C): E(125°C)

Specifications

manufacturer
Manufacturer's name 70032K
Rated current [mA] 292
Secondary voltage [V] 2x12
Open circuit voltage [V] 2x16,2
Data Sheet

Unit price

14,39 €

Stock: 84
