RKT 300 VA 2x22 V

toroidal transformers 300VA by Talema

• power: 300VA
• primary voltage, ±10%: 230V
• open style
• by Talema
• copper loss, typ. (120°C): 22.5W


• iron loss, typ.: 1.7W
• no-load current, typ. (230V): 17mA

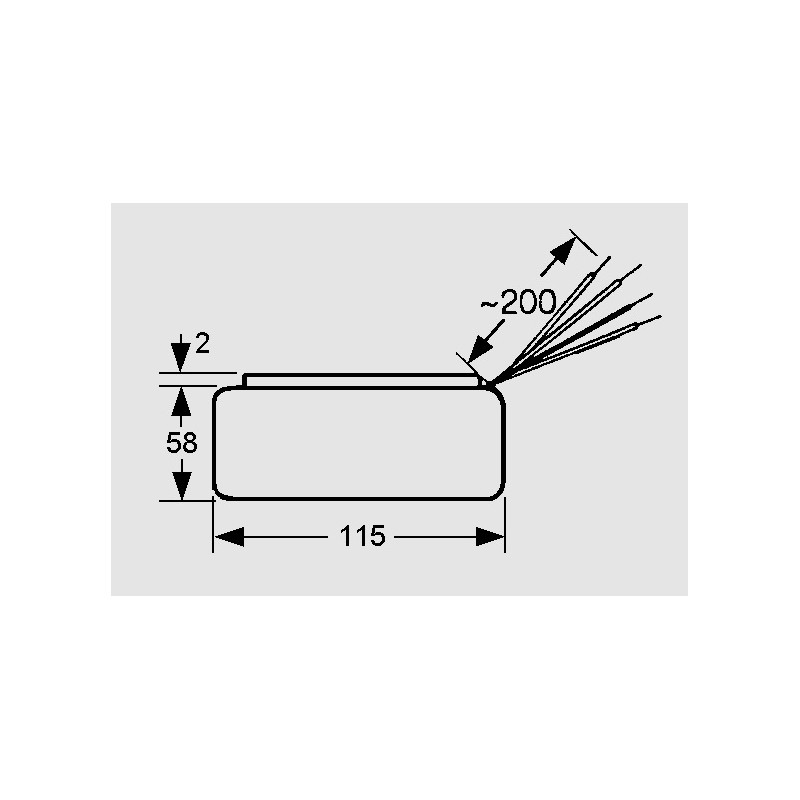

• dimensions: Ø115x58mm
• weight: 2.5kg

RKT 300 VA 2x22 V

RKT 300 VA 2x22 V

11348 RKT 300 VA 2x22 V 19455-P1S02 19455-P1S02 toroidal transformers 300VA by Talema. • power: 300VA• primary voltage, ±10%: 230V• open style• by Talema• copper loss, typ. (120°C): 22.5W • iron loss, typ.: 1.7W• no-load current, typ. (230V): 17mA• dimensions: Ø115x58mm• weight: 2.5kg

Specifications

manufacturer
Manufacturer's name 19455-P1S02
Power [VA] 300
Secondary voltage [V] 2x22
Data Sheet

Unit price

77,79 €

Stock: 0
Further delivery:
CW 08/2026

Minimum order quantity 24 units or
multiples of 24.
