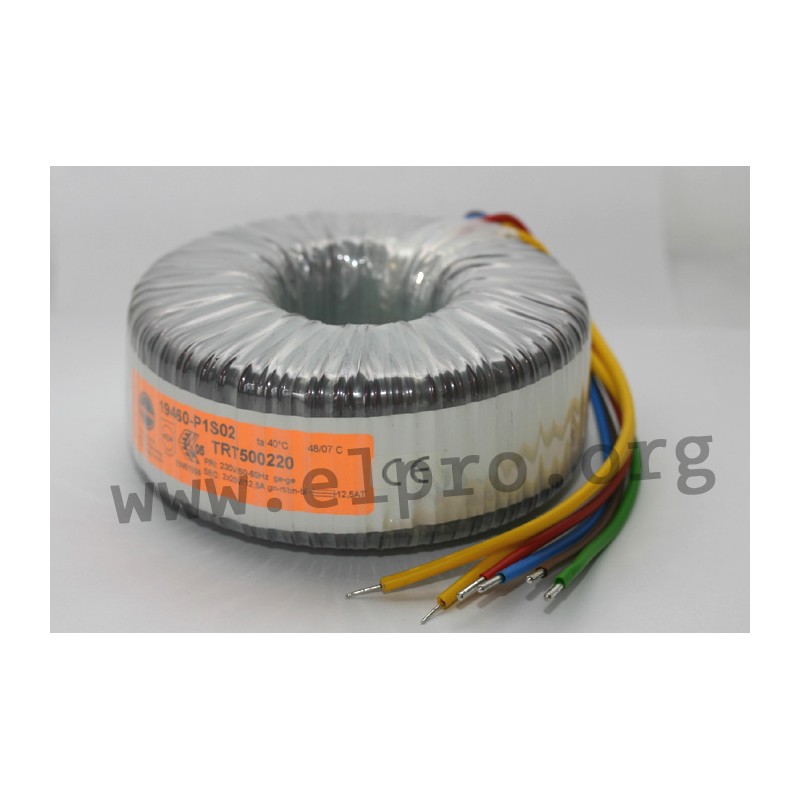

RKT 500 VA 2x55 V

toroidal transformers 500VA by Talema

• power: 500VA
• primary voltage, ±10%: 230V
• open style
• by Talema
• copper loss, typ. (120°C): 31W


• iron loss, typ.: 2.5W
• no-load current, typ. (230V): 23mA

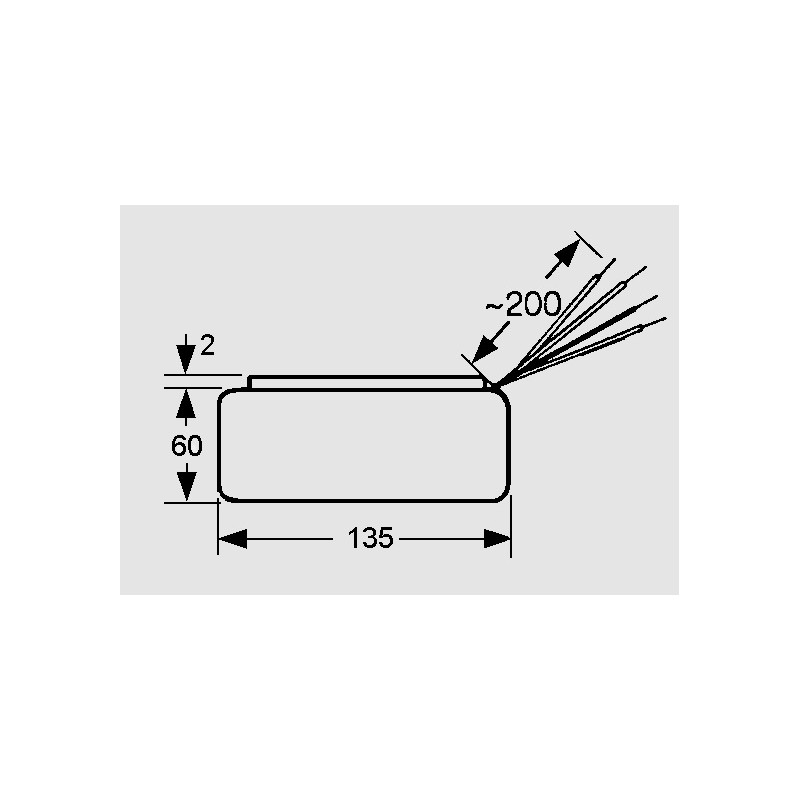

• dimensions: Ø135x60mm
• weight: 3.9kg

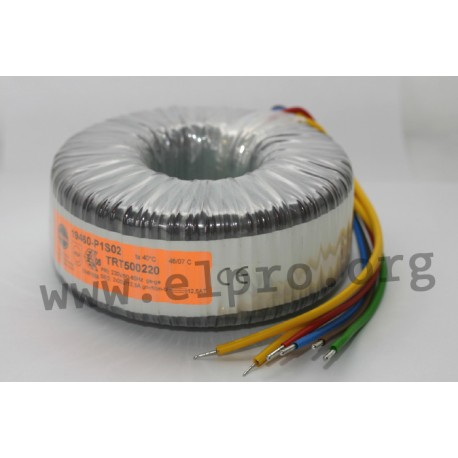

RKT 500 VA

RKT 500 VA 2x55 V

11377 RKT 500 VA 2x55 V 19463-P1S02 19463-P1S02 toroidal transformers 500VA by Talema. • power: 500VA• primary voltage, ±10%: 230V• open style• by Talema• copper loss, typ. (120°C): 31W • iron loss, typ.: 2.5W• no-load current, typ. (230V): 23mA• dimensions: Ø135x60mm• weight: 3.9kg

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 19463-P1S02
Power [VA] 500
Secondary voltage [V] 2x55
Data Sheet

Unit price

108,59 €

Stock: 22
