C 870

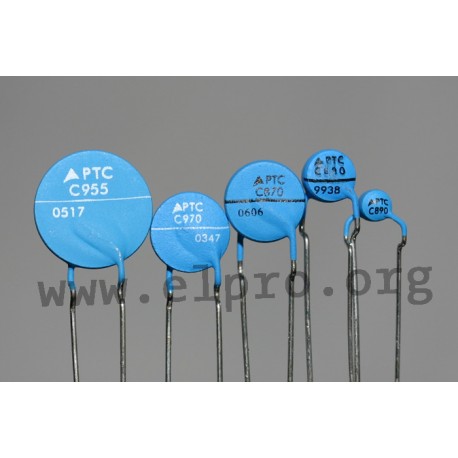

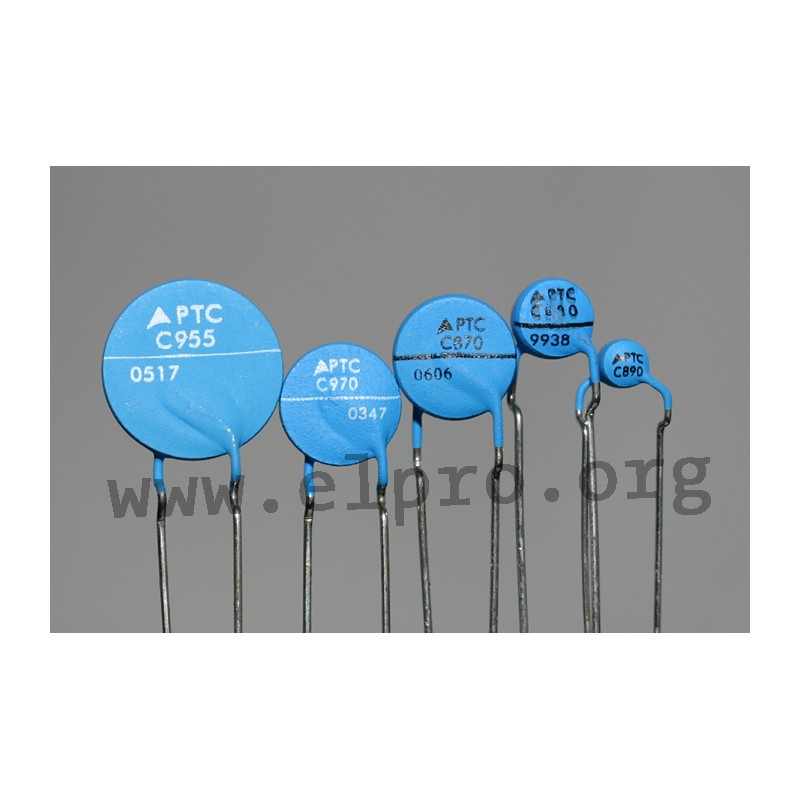

thermistors for overcurrent protection

* by Epcos
* overcurrent and short-current protection
* leaded discs coated
* pitch 5.08mm
* ceramic PTC thermistors provide overcurrent protection for single-phase motors, transformers etc. as well as electronic circuits (subscriber line interface cards)
* the ceramic PTC resistor contrary to PTC's are polymer-based and after repeated cooling returns to its initial resistance value
* by responding to inadmissibly high currents and protecting pre-selected temperature limits which have been exceeded: the thermal dissipation from the complete power circuit is limited, as the increased resistance of the current is reduced to a harmless residual value
* the PTC resistor must not be exchanged after the maximum temperature has been exceeded, as after a short cooling period, the protective function immediately takes over
C 8_/C 9_

C 870

14206 C 870 B59870C0080A070 B59870C0080A070 thermistors for overcurrent protection. * by Epcos* overcurrent and short-current protection* leaded discs coated* pitch 5.08mm* ceramic PTC thermistors provide overcurrent protection for single-phase motors, transformers etc. as well as electronic circuits (subscriber line interface cards)* the ceramic PTC resistor contrary to PTC's are polymer-based and after repeated cooling returns to its initial resistance value* by responding to inadmissibly high currents and protecting pre-selected temperature limits which have been exceeded: the thermal dissipation from the complete power circuit is limited, as the increased resistance of the current is reduced to a harmless residual value* the PTC resistor must not be exchanged after the maximum temperature has been exceeded, as after a short cooling period, the protective function immediately takes over

Specifications

manufacturer
Manufacturer's name B59870C0080A070
Reverse current [A] 0,005
Rated current [mA] 60
Operating voltage [V] 265

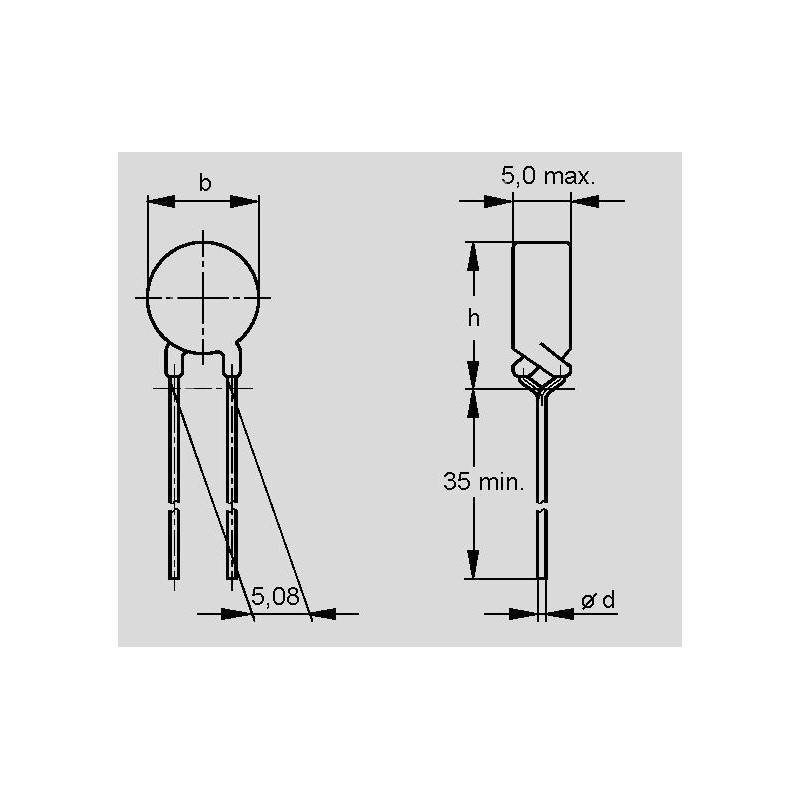

B [mm] 9
H [mm] 12,5
D [mm] 0,6
Nominal resistance [Ω] 25
Switching current [A] 0,13
Reference temperature [°C] 80
Data Sheet

Unit price

0,792 €

Stock: 3175
Further delivery:
CW 37/2024

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
