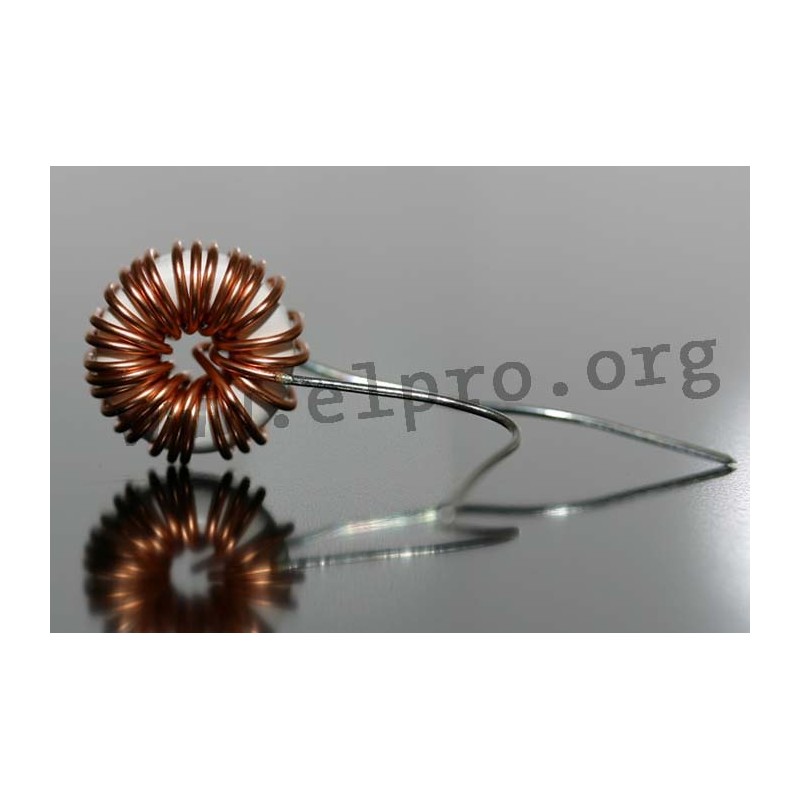

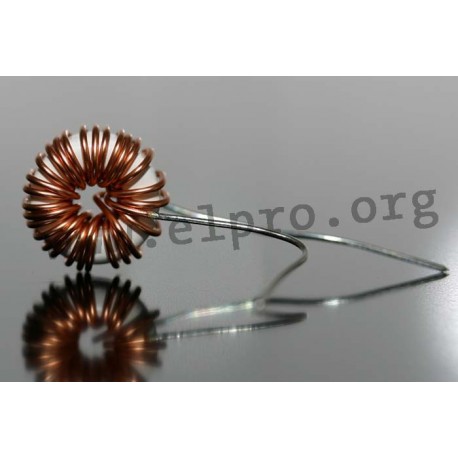

SD 26 µH/2 A

suppression chokes for thyristor circuits

* the TDK SF core is outstanding in preventing electromagnetic interference (EMI) and conduction malfunctions which are produced by thyristors
* compared to conventional ferrite or silicon steel cores, EMI/RFI prevention is outstanding
* the SF coil is extremely effective against EMI/RFI entering through or leaking out of power supply lines
* the temperature characteristics within the range -20°C to +60°C have excellent linearity
SD

SD 26 µH/2 A

6529 SD 26 µH/2 A SF-T8-30S-PF SF-T8-30S-PF suppression chokes for thyristor circuits. * the TDK SF core is outstanding in preventing electromagnetic interference (EMI) and conduction malfunctions which are produced by thyristors* compared to conventional ferrite or silicon steel cores, EMI/RFI prevention is outstanding* the SF coil is extremely effective against EMI/RFI entering through or leaking out of power supply lines* the temperature characteristics within the range -20°C to +60°C have excellent linearity

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name SF-T8-30S-PF
Rated current [mA] 2000

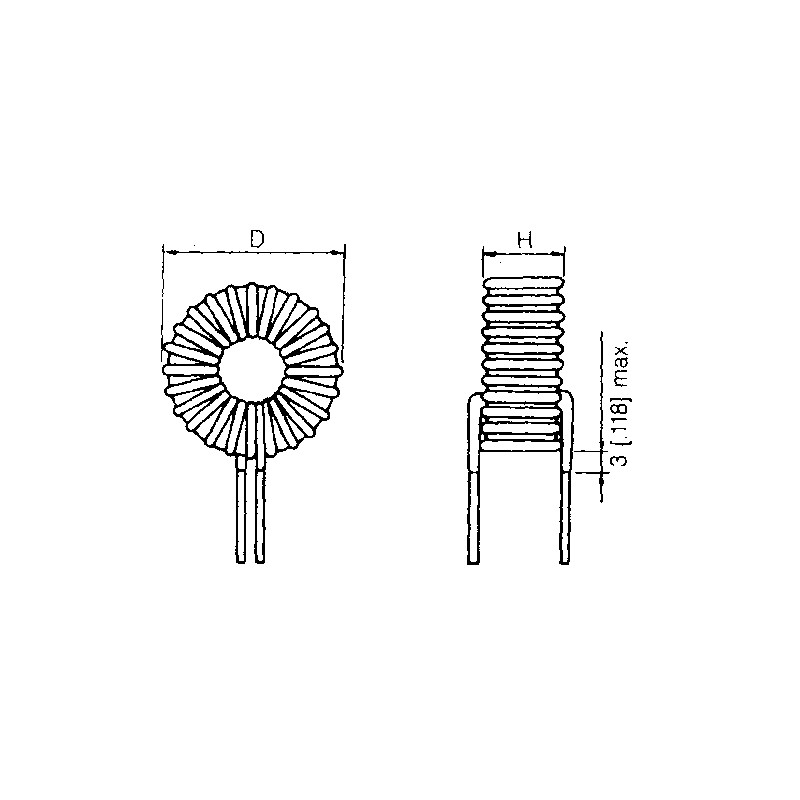

Height [mm] 9,5
D [mm] 17
Inductance [µH] 26
DC resistance [Ω] 55
Wire diameter [mm] 0,6
Wire length [mm] 30
Data Sheet

Unit price

0,59 €

Stock: 6
