Manufacturers

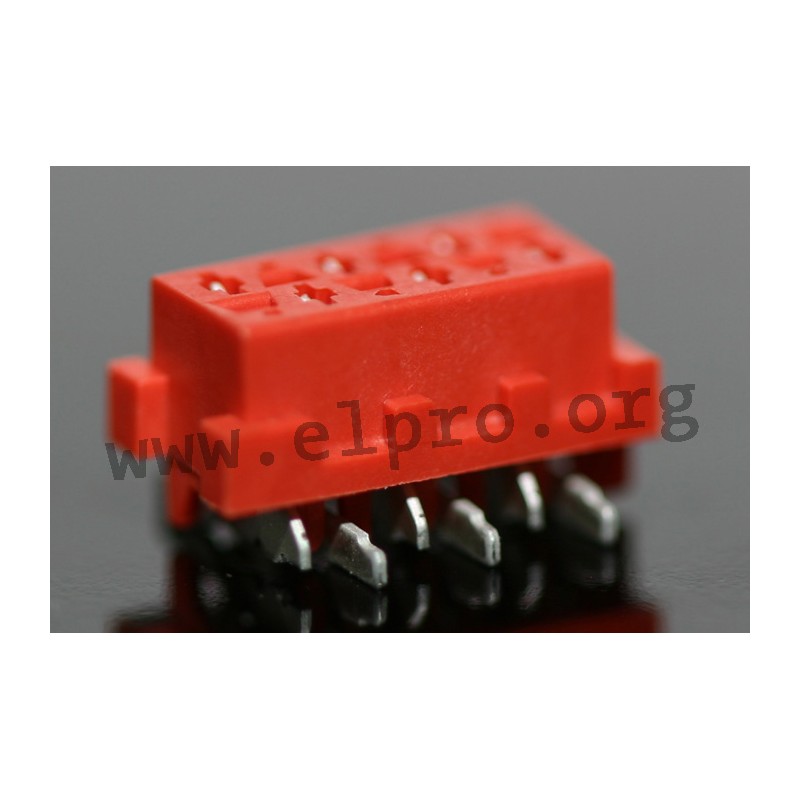

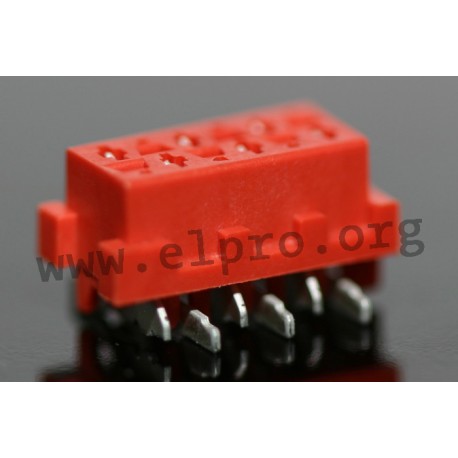

0-188275-8

• series Micro-MaTch by TE Connectivity
• pitch: 1.27mm
• housing material: thermoplastic, polyester
• colour: red
• flammability: UL94V-0
• contact material: phosphor bronze
• contact surface: tinned
• contact resistance: 10mΩ
• insulation resistance: 1000MΩ
• rated voltage: 230V
• rated current: 1,5A
• operating temperature range: -40...+105°C

suitable pin headers for flat cables

0-188275-8

11534 0-188275-8 188275-8 188275-8 • series Micro-MaTch by TE Connectivity• pitch: 1.27mm• housing material: thermoplastic, polyester• colour: red• flammability: UL94V-0• contact material: phosphor bronze• contact surface: tinned• contact resistance: 10mΩ• insulation resistance: 1000MΩ• rated voltage: 230V• rated current: 1,5A• operating temperature range: -40...+105°Csuitable pin headers for flat cables

Specifications

manufacturer
Manufacturer's name 188275-8
Number of poles 8
A [mm] 8,89
Width [mm] 12,2

Unit price

0,729 €

Stock: 2747
Next incoming goods:
CW 48/2024
1000 units


Further delivery:
CW 11/2025

Minimum order quantity 1 to 7 units or multiples of 10 plus 0 to 7 .
