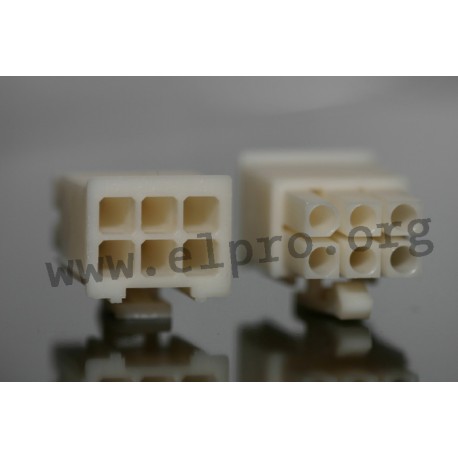

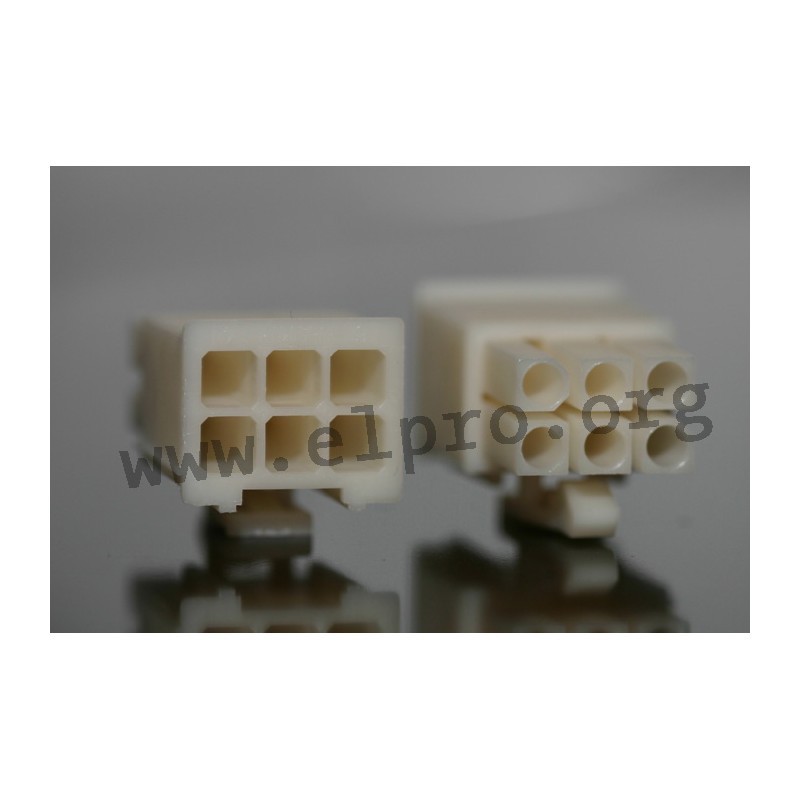

172168-1

plug housings

* by AMP/Tyco
* series: Mini-Universal MATE-N-LOK
* pitch 4.14mm
* tinned CuZn contacts
* 600V rated voltage
* insulation section: 1.5...2.5mm
* temperature range: -55 to +105°C
* for wire cross section: 0.3 to 0.89mm²
172168-1

172168-1

11570 172168-1 0-172168-1 0-172168-1 plug housings. * by AMP/Tyco* series: Mini-Universal MATE-N-LOK* pitch 4.14mm* tinned CuZn contacts* 600V rated voltage* insulation section: 1.5...2.5mm* temperature range: -55 to +105°C* for wire cross section: 0.3 to 0.89mm²

Specifications

manufacturer
Manufacturer's name 0-172168-1
Number of poles 6

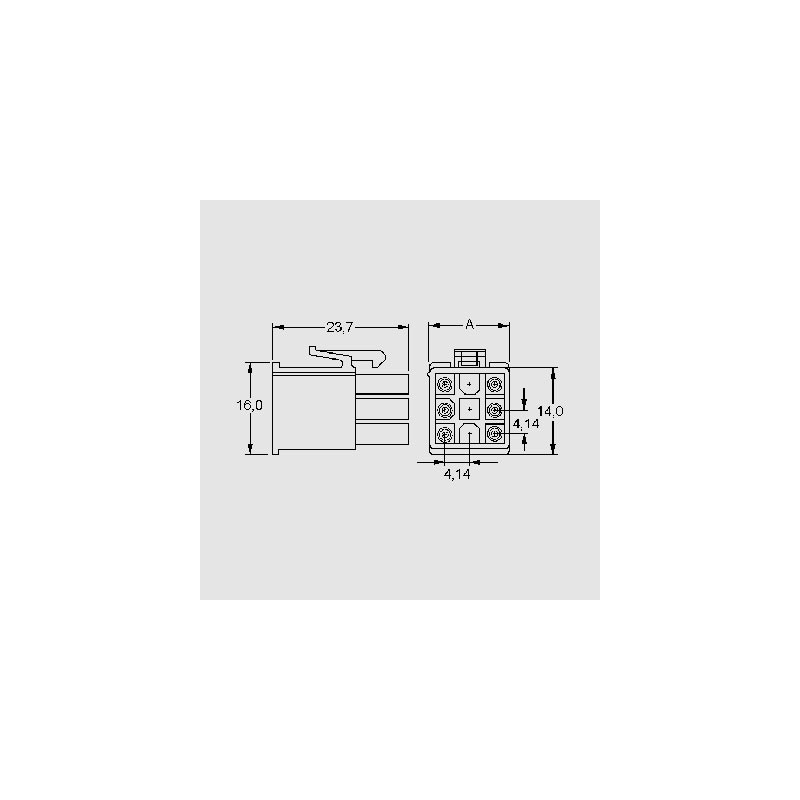

A [mm] 14
Data Sheet

Unit price

0,557 €

Stock: 357
Further delivery:
CW 12/2027

Minimum order quantity 1 to 7 units or multiples of 25 plus 0 to 7 .
