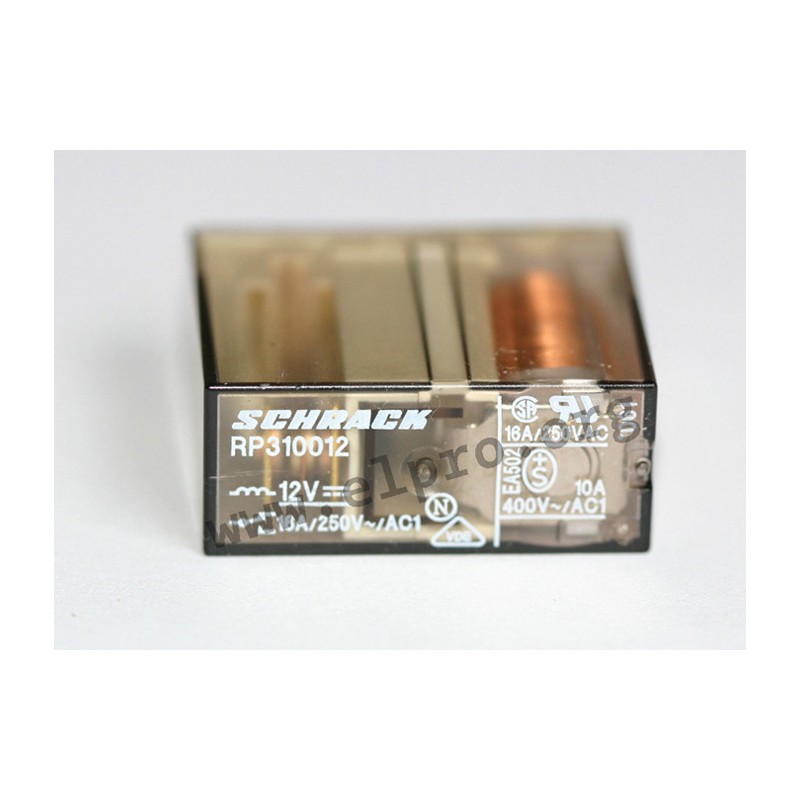

RP 310 12V

rated current: 16A

• flux proof
• sensitive coil: 500mW
• insulation to VDE0110b: C/250
• relay protection class RTII

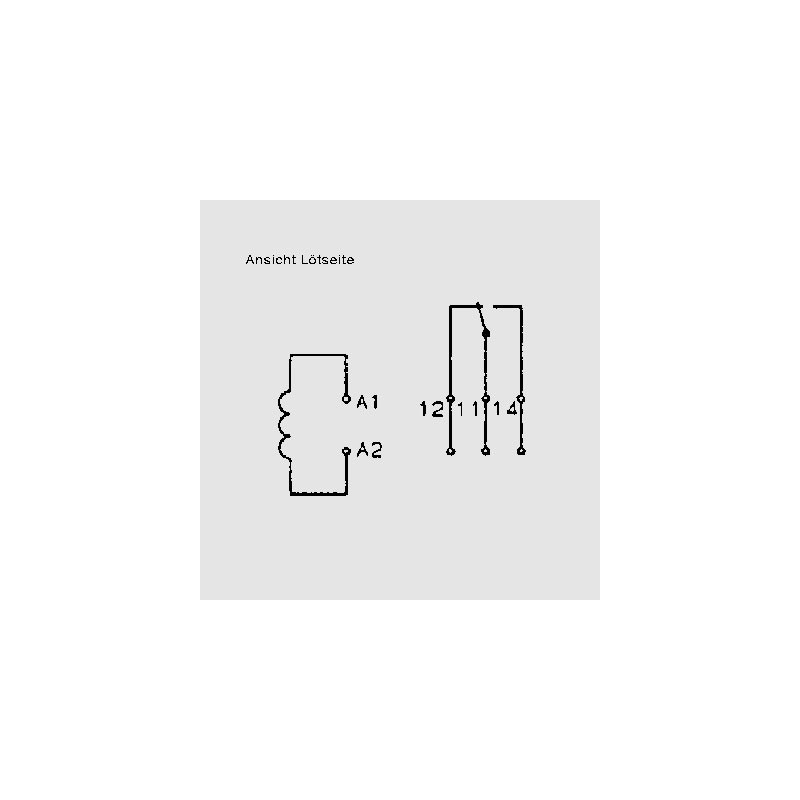

• contact: SPDT (single contact)
• contact material: AgCdO
• rated current: 16A
• max. switching current: 25A
• max. switching voltage: 440V AC
• max. switching power: 4000VA
• creepage/clearance: 8/8mm
• operate/release time: 8/2ms
• testing voltage
coil/contact: 4000Vrms
opening contact: 1000Vrms
• lifetime
mechanical: 30x106 operations
operating temperature: -40...+70°C
• weight approx.: 18g

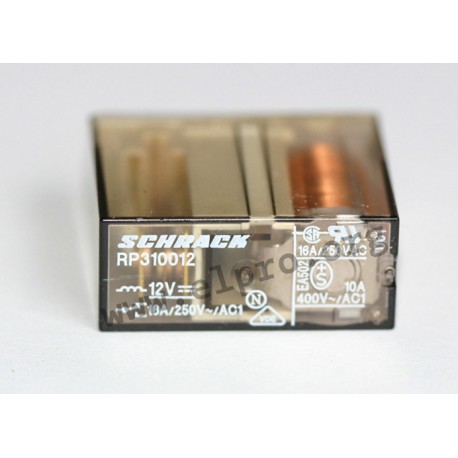

Schrack RP 310 series

RP 310 12V

12008 RP 310 12V 2-1393230-9 2-1393230-9 rated current: 16A. • flux proof• sensitive coil: 500mW• insulation to VDE0110b: C/250• relay protection class RTII• contact: SPDT (single contact)• contact material: AgCdO• rated current: 16A• max. switching current: 25A• max. switching voltage: 440V AC• max. switching power: 4000VA• creepage/clearance: 8/8mm• operate/release time: 8/2ms• testing voltagecoil/contact: 4000Vrmsopening contact: 1000Vrms• lifetimemechanical: 30x106 operationsoperating temperature: -40...+70°C• weight approx.: 18g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 2-1393230-9
Rated current [mA] 44,4
Nominal resistance [Ω] 270
Response voltage [V] 8,4...21,6
Max. switching voltage [V] 250
Max. switching power [VA] 4000
Data Sheet

Unit price

3,49 €

Stock: 1
