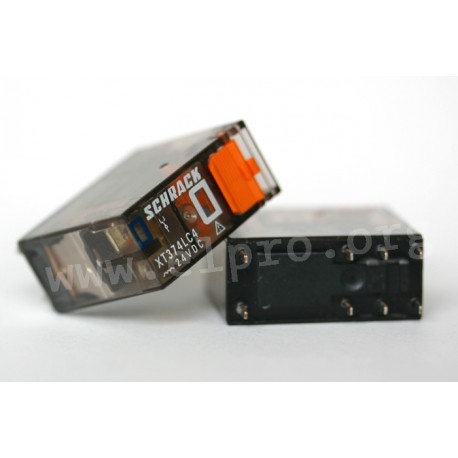

XT 374-LC4

rated current: 8-16A

• industrial relays with solder/plug-in terminals
• versions with AC coil or 400mW sensitive DC coil
• 4kV/8mm coil-contact
• relays protection class RTII
• contact: SPDT
• contact material: AgNi 90/10
• rated current: 16A
• max. switching current: 30A
• max. switching voltage: 400V AC
• max. switching power: 4000VA
• creepage/clearance: 8/8mm
• operate/release time: 9/6ms
• testing voltage
coil/contact: 4000Vrms
contact/contact: 2500Vrms
opening contact: 1000Vrms
• lifetime
mechanical (DC): >10x106 cycles
mechanical (AC): >5x106 cycles
• operating temperature: -40...+70°C
• weight approx.: 16g

XT 374-LC4

XT 374-LC4

30244 XT 374-LC4 0-1887112-1 0-1887112-1 rated current: 8-16A. • industrial relays with solder/plug-in terminals• versions with AC coil or 400mW sensitive DC coil• 4kV/8mm coil-contact• relays protection class RTII• contact: SPDT• contact material: AgNi 90/10• rated current: 16A• max. switching current: 30A• max. switching voltage: 400V AC• max. switching power: 4000VA• creepage/clearance: 8/8mm• operate/release time: 9/6ms• testing voltagecoil/contact: 4000Vrmscontact/contact: 2500Vrmsopening contact: 1000Vrms• lifetimemechanical (DC): >10x106 cyclesmechanical (AC): >5x106 cycles• operating temperature: -40...+70°C• weight approx.: 16g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 0-1887112-1
Max. switching voltage [V] 240
Max. switching power [VA] 4000
Data Sheet

Unit price

3,49 €

Stock: 5
