> Passive elements>Electroacoustics>Loudspeakers>Visaton fullrange speakers, BF/FRWS/FRS/FR/SC series>FR 10 HM 4 Ohm

Manufacturers

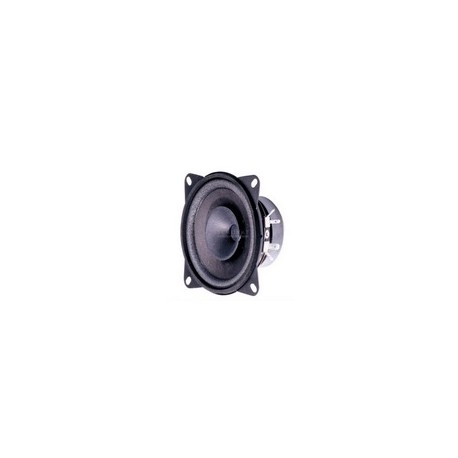

FR 10 HM 4 Ohm

Visaton fullrange speaker series BF/FRWS/FRS/FR/SC

These speakers are characterized by a balanced frequency response and a very high efficiency. Their temperature range is from -25 to 100°C. We offer various types of this Visaton series as well as matching protective grids.

fullrange speakers by Visaton

FR 10 HM 4 Ohm

108793 FR 10 HM 4 Ohm 4898 4898 Visaton fullrange speaker series BF/FRWS/FRS/FR/SC. These speakers are characterized by a balanced frequency response and a very high efficiency. Their temperature range is from -25 to 100°C. We offer various types of this Visaton series as well as matching protective grids.

Specifications

manufacturer
Manufacturer's name 4898
Voice coil-∅[mm] 14
W [g] 340
Cut-out diameter [mm] 94
Height of winding [mm] 5
Height of front pole-plate [mm] 2
Resonant frequency [Hz] 120
Sound pressure level [dB] 86
Frequency response [Hz] 95...22000
Music power rating [W] 30
Rated power [W] 20
Impedance [Ω] 4
Data Sheet

Unit price

6,89 €

Stock: 4
Further delivery:
CW 51/2025
