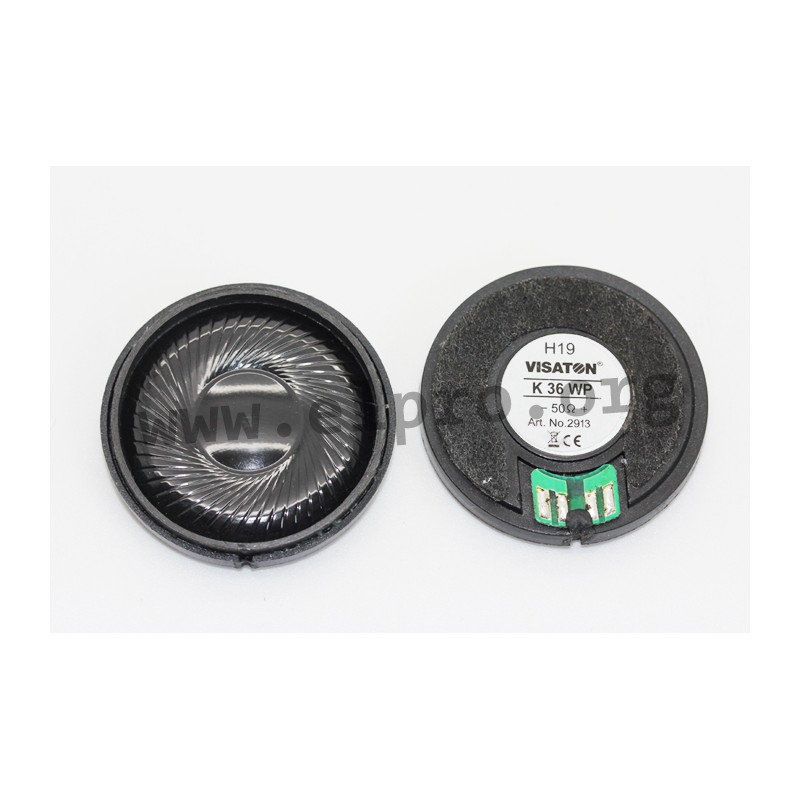

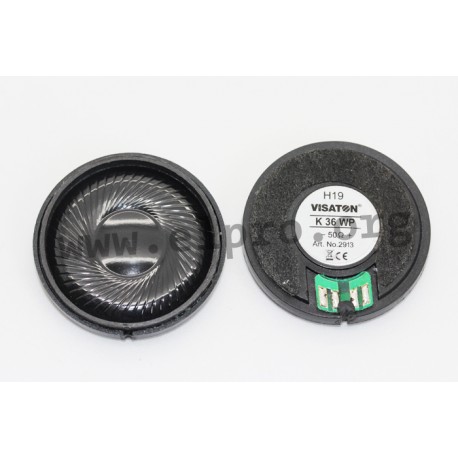

K 36 WP 50 Ohm

Visaton miniature speaker series K, SL and R

Miniature loudspeakers and fullrange speakers by Visaton for voice and signal output. Due to the dimensions they are suited to applications in very small devices. We offer various types of this Visaton series.

K 36 WP 50 Ohm

108779 K 36 WP 50 Ohm 2913 2913 Visaton miniature speaker series K, SL and R. Miniature loudspeakers and fullrange speakers by Visaton for voice and signal output. Due to the dimensions they are suited to applications in very small devices. We offer various types of this Visaton series.

Specifications

manufacturer
Manufacturer's name 2913
Voice coil-∅[mm] 10
W [g] 6
Cut-out diameter [mm] 31
Height of winding [mm] 2
Height of front pole-plate [mm] 2
Resonant frequency [Hz] 500
Sound pressure level [dB] 77
Frequency response [Hz] 300...20000
Music power rating [W] 2
Rated power [W] 1
Impedance [Ω] 50
Data Sheet

Unit price

4,19 €

Stock: 10
Further delivery:
CW 15/2024

Minimum order quantity 5 units or
multiples of 5.
