K 50 WP 50 Ohm

Visaton miniature speaker series K, SL and R

Miniature loudspeakers and fullrange speakers by Visaton for voice and signal output. Due to the dimensions they are suited to applications in very small devices. We offer various types of this Visaton series.

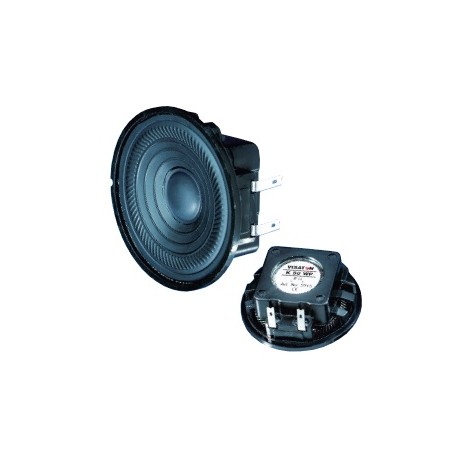

miniature speakers by Visaton

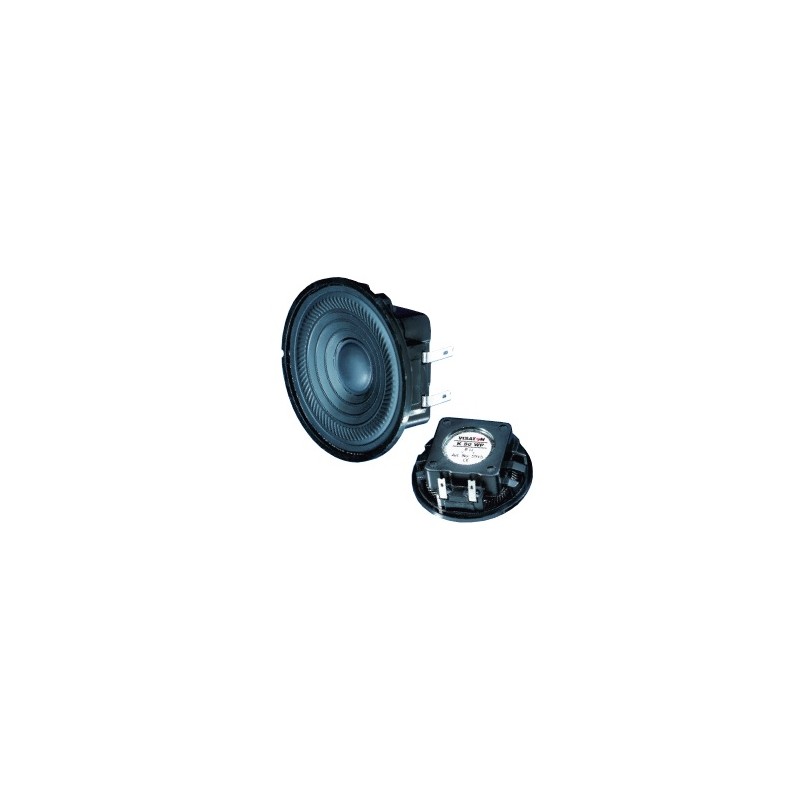

K 50 WP 50 Ohm

108785 K 50 WP 50 Ohm 2916 2916 Visaton miniature speaker series K, SL and R. Miniature loudspeakers and fullrange speakers by Visaton for voice and signal output. Due to the dimensions they are suited to applications in very small devices. We offer various types of this Visaton series.

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 2916
Voice coil-∅[mm] 10
W [g] 48
Cut-out diameter [mm] 46
Height of winding [mm] 2,5
Height of front pole-plate [mm] 2
Resonant frequency [Hz] 300
Sound pressure level [dB] 84
Frequency response [Hz] 180...17000
Music power rating [W] 3
Rated power [W] 2
Impedance [Ω] 50
Data Sheet

Unit price

4,39 €

Stock: 10

Minimum order quantity 5 units or
multiples of 5.
