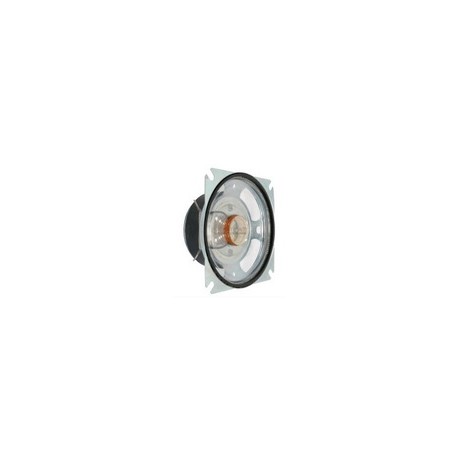

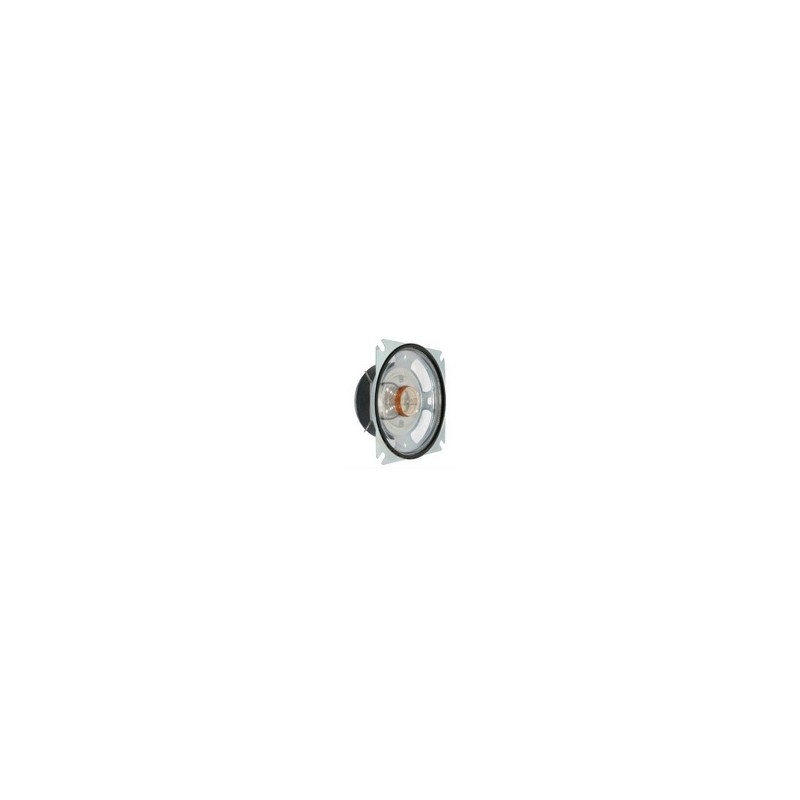

SL 87 XA 8 Ohm

Visaton miniature speaker series K, SL and R

Miniature loudspeakers and fullrange speakers by Visaton for voice and signal output. Due to the dimensions they are suited to applications in very small devices. We offer various types of this Visaton series.

fullrange speakers by Visaton

SL 87 XA 8 Ohm

108789 SL 87 XA 8 Ohm 2096 2096 Visaton miniature speaker series K, SL and R. Miniature loudspeakers and fullrange speakers by Visaton for voice and signal output. Due to the dimensions they are suited to applications in very small devices. We offer various types of this Visaton series.

Specifications

manufacturer
Manufacturer's name 2096
Voice coil-∅[mm] 20
W [g] 380
Cut-out diameter [mm] 80
Height of winding [mm] 4
Height of front pole-plate [mm] 3
Resonant frequency [Hz] 560
Sound pressure level [dB] 94
Frequency response [Hz] 350...5800
Music power rating [W] 30
Rated power [W] 20
Impedance [Ω] 8
Data Sheet

Unit price

10,59 €

Stock: 2
Further delivery:
CW 18/2024

Minimum order quantity 5 units or
multiples of 5.
