2 W 02 G

Vishay rectifier series 2W_G

  • bridge rectifiers
  • glass passivated
  • in a WOG housing
  • comply with UL94V-0
  • maximal solderability: 260°C (40s)
  • operating temperature: -55 to +150°C
  • forward current: 2A

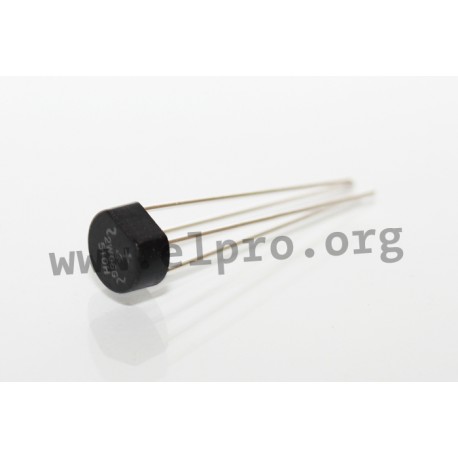

Series 2W_G by Vishay

2 W 02 G

45888 2 W 02 G 2W02G-E4/51 2W02G-E4/51 Vishay rectifier series 2W_G. bridge rectifiers glass passivated in a WOG housing comply with UL94V-0 maximal solderability: 260°C (40s) operating temperature: -55 to +150°C forward current: 2A

Specifications

manufacturer
Manufacturer's name 2W02G-E4/51

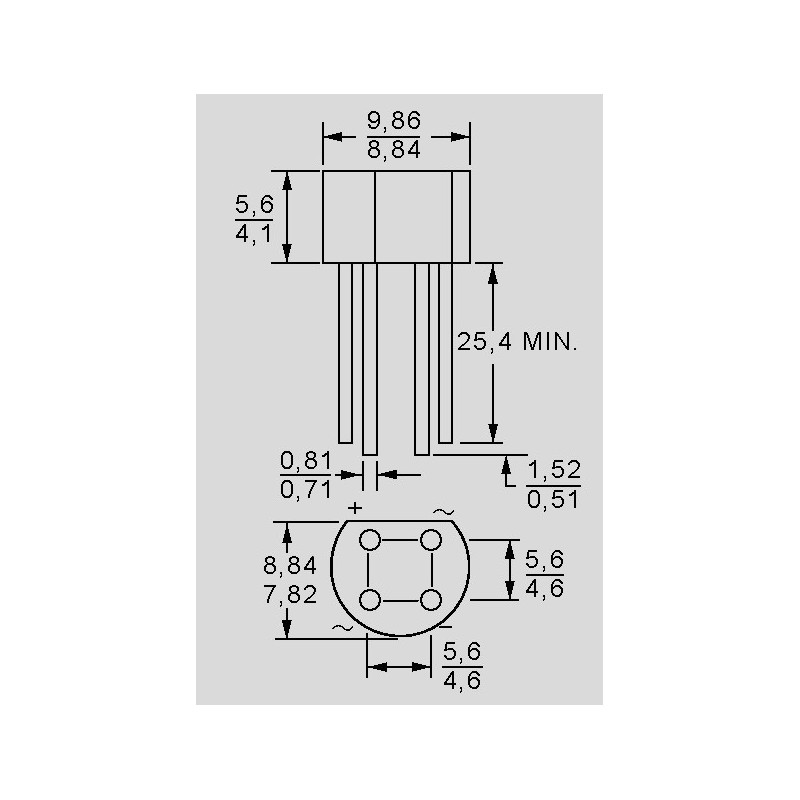

Case WOG
(Max.) peak recurrent reverse voltage [V] 200
Forward voltage [V] 1,1
Reverse current [µA] 5
(Max.) average forward (rectified) current [A] 2
(Max.) RMS voltage [V] 140
Data Sheet

Unit price

0,404 €

Stock: 900
Further delivery:
CW 27/2024

Minimum order quantity 50 units or
multiples of 50.
