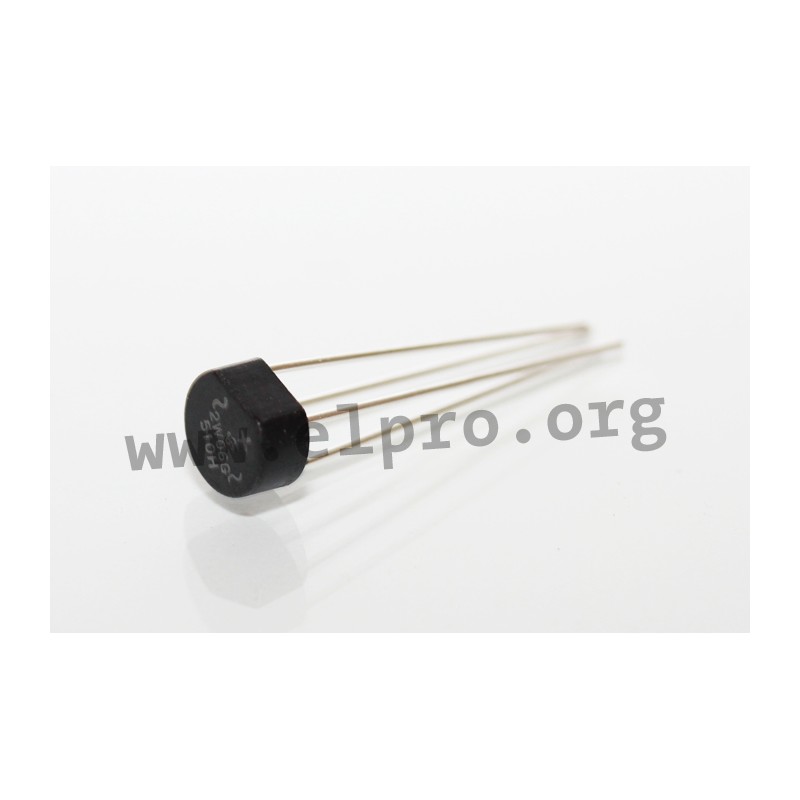

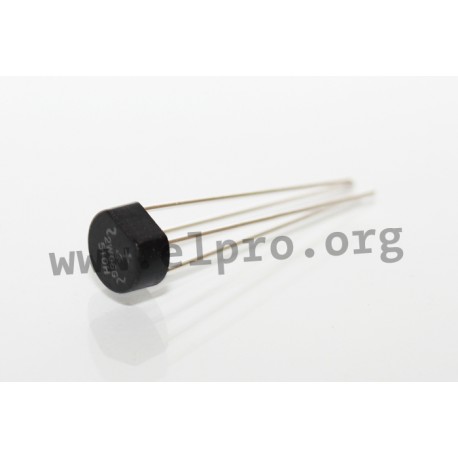

2 W 06 G

Vishay rectifier series 2W_G

  • bridge rectifiers
  • glass passivated
  • in a WOG housing
  • comply with UL94V-0
  • maximal solderability: 260°C (40s)
  • operating temperature: -55 to +150°C
  • forward current: 2A
2 W 06 G

2 W 06 G

45889 2 W 06 G 2W06G-E4/51 2W06G-E4/51 Vishay rectifier series 2W_G. bridge rectifiers glass passivated in a WOG housing comply with UL94V-0 maximal solderability: 260°C (40s) operating temperature: -55 to +150°C forward current: 2A

Specifications

manufacturer
Manufacturer's name 2W06G-E4/51
Case WOG
(Max.) peak recurrent reverse voltage [V] 600
Forward voltage [V] 1,1
Reverse current [µA] 5
(Max.) average forward (rectified) current [A] 2
(Max.) RMS voltage [V] 420
Data Sheet

Unit price

0,29 €

Stock: 2647
Further delivery:
CW 06/2026

Minimum order quantity 1 to 47 units or multiples of 50 plus 0 to 47 .
