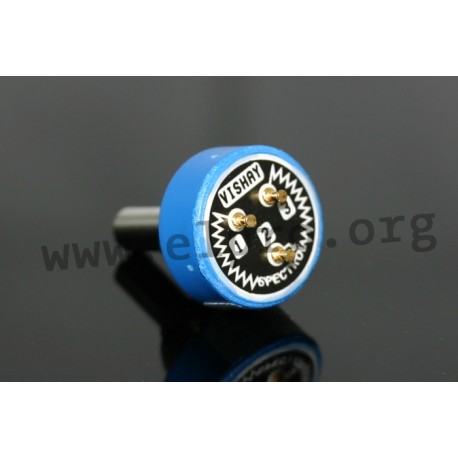

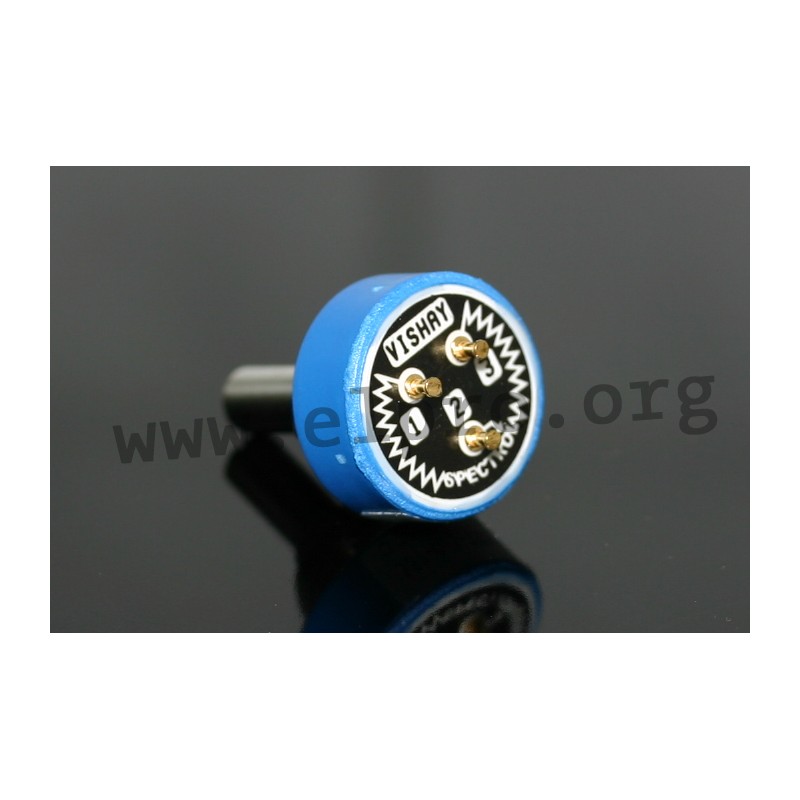

357B0502MA1S22

conductive plastic precision potentiometers

* power rating (TU = 70°C): 1W
* dielectric strength (RMS): 1000V
* standard tolerance: ±20%
* resistive element: conductive plastic
* end resistance (typ.): 0.5% from final value
* rotation angle
mechanical: 360° continuous
electrical: 340° ±3°
* operating torque, max.: 3.68mNm
* temperature range: -55...+125°C
* weight: 17.5g

357B0502MA1S22

29948 357B0502MA1S22 357BO502MAB251S22 357BO502MAB251S22 conductive plastic precision potentiometers. * power rating (TU = 70°C): 1W* dielectric strength (RMS): 1000V* standard tolerance: ±20%* resistive element: conductive plastic* end resistance (typ.): 0.5% from final value* rotation anglemechanical: 360° continuouselectrical: 340° ±3°* operating torque, max.: 3.68mNm* temperature range: -55...+125°C* weight: 17.5g

Specifications

manufacturer
Manufacturer's name 357BO502MAB251S22
Resistance [Ω] 5k
Power, max. [W] 1
Data Sheet

Unit price

24,99 €

Stock: 26
Further delivery:
CW 31/2024
