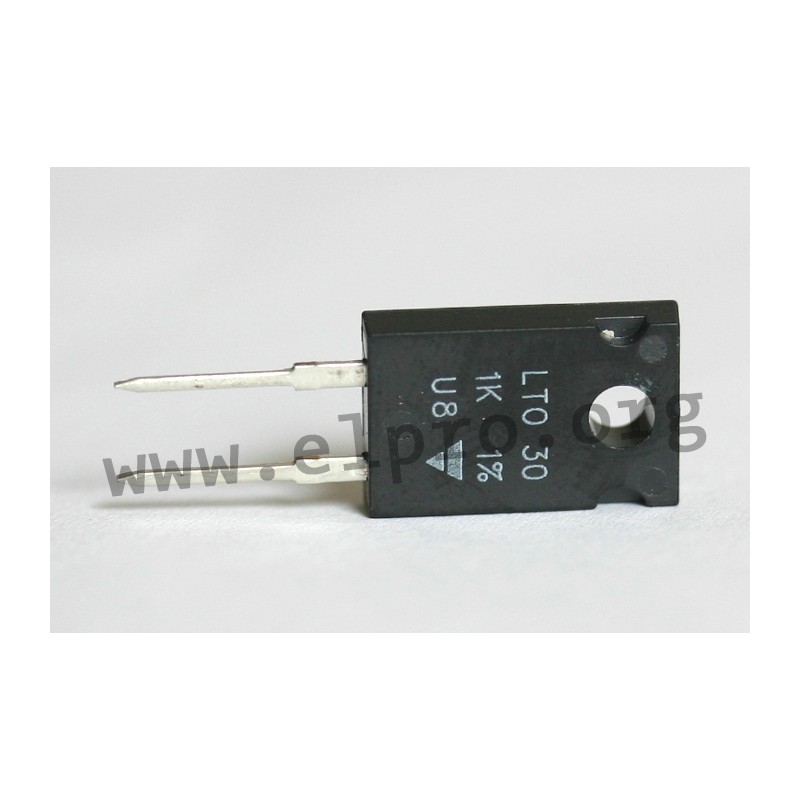

LTO 30 F 10 k

thick-film resistors

• by Vishay
• series LTO30
• low inductance
• compact size
• easy mounting due to TO220-package
• direct ceramic mounting design (no metal tab)
• tolerance: ±1%
• power rating with heatsink: 30 Watt
• power rating without heatsink: 2.25W
• operating voltage, max.: 250V
• dielectric strength: 1500Vrms
• operating temperature range: -55 to 155°C
• climatic category: 55/155/56

LTO 30 F 1 k

LTO 30 F 10 k

4701 LTO 30 F 10 k LTO030F10001FTE3 LTO030F10001FTE3 thick-film resistors. • by Vishay• series LTO30• low inductance• compact size• easy mounting due to TO220-package• direct ceramic mounting design (no metal tab)• tolerance: ±1%• power rating with heatsink: 30 Watt• power rating without heatsink: 2.25W• operating voltage, max.: 250V• dielectric strength: 1500Vrms• operating temperature range: -55 to 155°C• climatic category: 55/155/56

Specifications

manufacturer
Manufacturer's name LTO030F10001FTE3

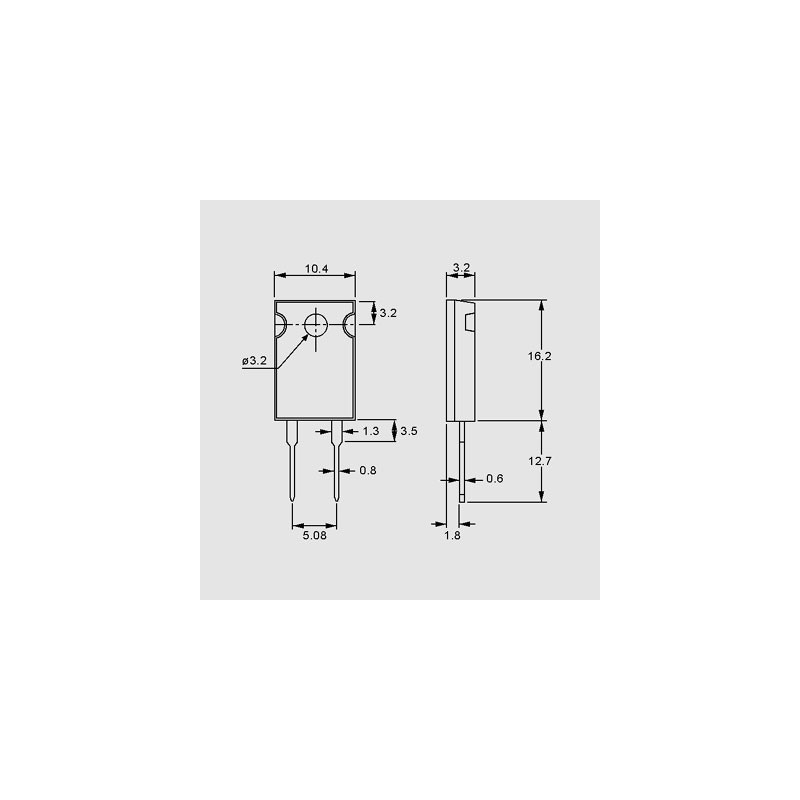

Design TO220
Resistance [Ω] 10k
Power [W] 2,25/30
Tolerance [%] 1
Data Sheet

Unit price

4,89 €

Stock: 31
Further delivery:
CW 37/2024

Minimum order quantity 1 unit or multiples of 2 plus 0 to 1 .
