P 16 NP lin 4,7 k

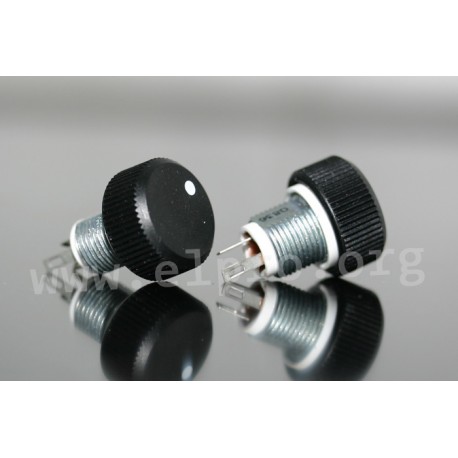

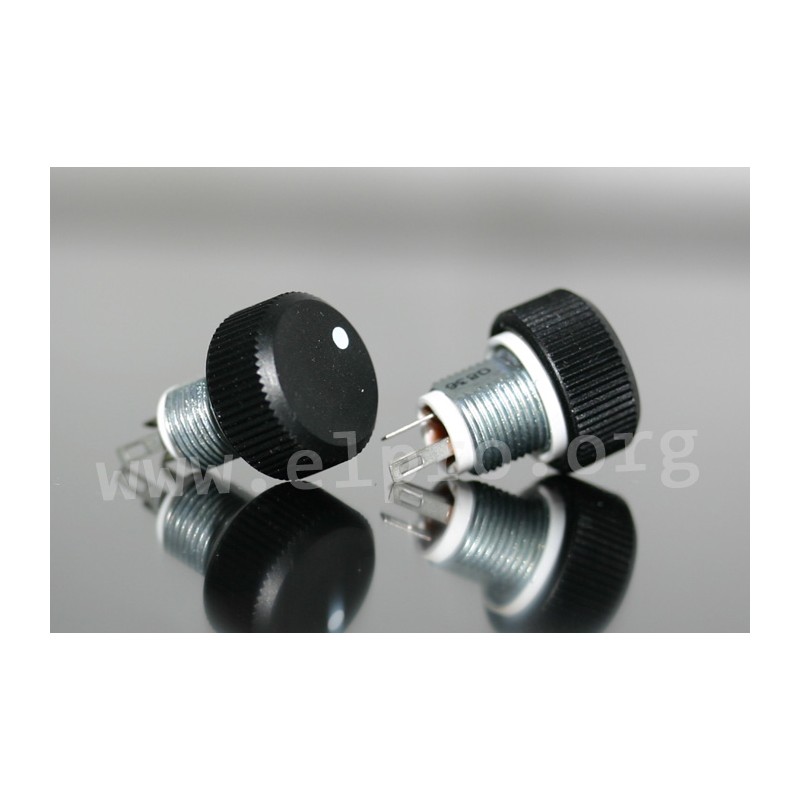

cermet precision potentiometers P16N by Vishay

• series: P16N
• linear, plastic knob
• housing: Ø16mm
• high performance
• compact form
• excellent stability
• completely sealed
• high mechanical strength
• power rating (TU = 40°C): 1W
• hold-off voltage: 350V
• dielectric strength (RMS): 2500V
• insulation: 106MΩ
• standard tolerance: ±20%
• resistive element: cermet
• end resistance (typ.): 1Ω
• rotation angle mechanical: 300° ±5°
• rotation angle electrical: 270° ±10°
• operating torque, typ.: 2Ncm
• end stop torque:, max.: 25Ncm
• temperature range: -40...+125°C
• temperature coefficient (typ.): ±150ppm/°C
• climatic category: 40/100/56
• sealing: IP67
• by Vishay

P 16 NP lin 4,7 k

5164 P 16 NP lin 4,7 k P16NP472MAB15 P16NP472MAB15 cermet precision potentiometers P16N by Vishay. • series: P16N• linear, plastic knob• housing: Ø16mm• high performance• compact form• excellent stability• completely sealed• high mechanical strength• power rating (TU = 40°C): 1W• hold-off voltage: 350V• dielectric strength (RMS): 2500V• insulation: 106MΩ• standard tolerance: ±20%• resistive element: cermet• end resistance (typ.): 1Ω• rotation angle mechanical: 300° ±5°• rotation angle electrical: 270° ±10°• operating torque, typ.: 2Ncm• end stop torque:, max.: 25Ncm• temperature range: -40...+125°C• temperature coefficient (typ.): ±150ppm/°C• climatic category: 40/100/56• sealing: IP67• by Vishay

Specifications

manufacturer
Manufacturer's name P16NP472MAB15
Resistance [Ω] 4,7k
Power, max. [W] 1
Transmission current, max. [mA] 14,6
Max. operating voltage [V] 68,5
Data Sheet

Unit price

10,89 €

Stock: 640
Further delivery:
CW 28/2024
