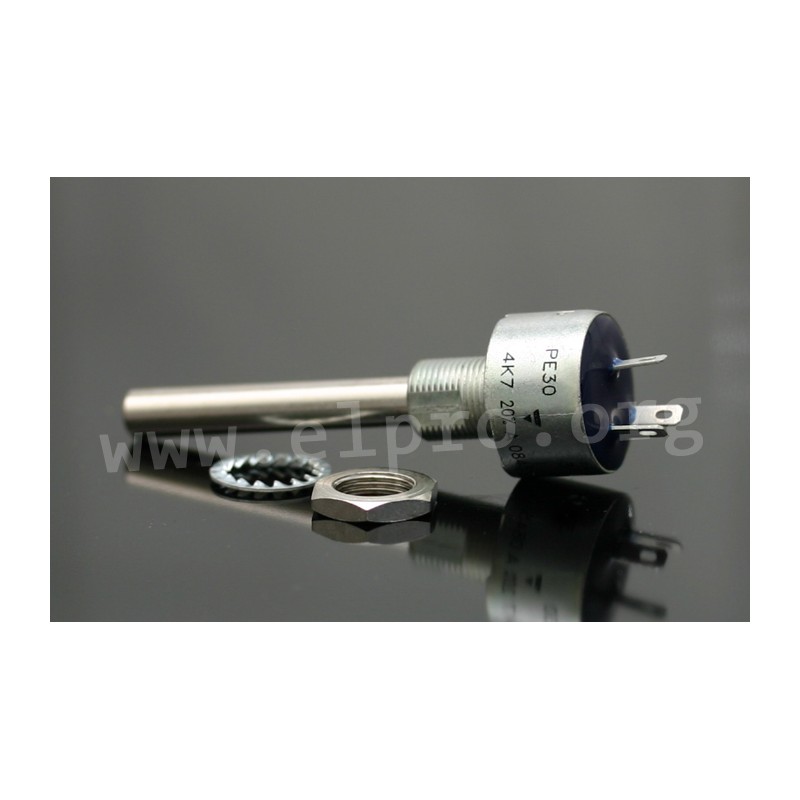

PE 30 lin 4,7 k

3W, cermet potentiometer

• linear
• power: 3 watt

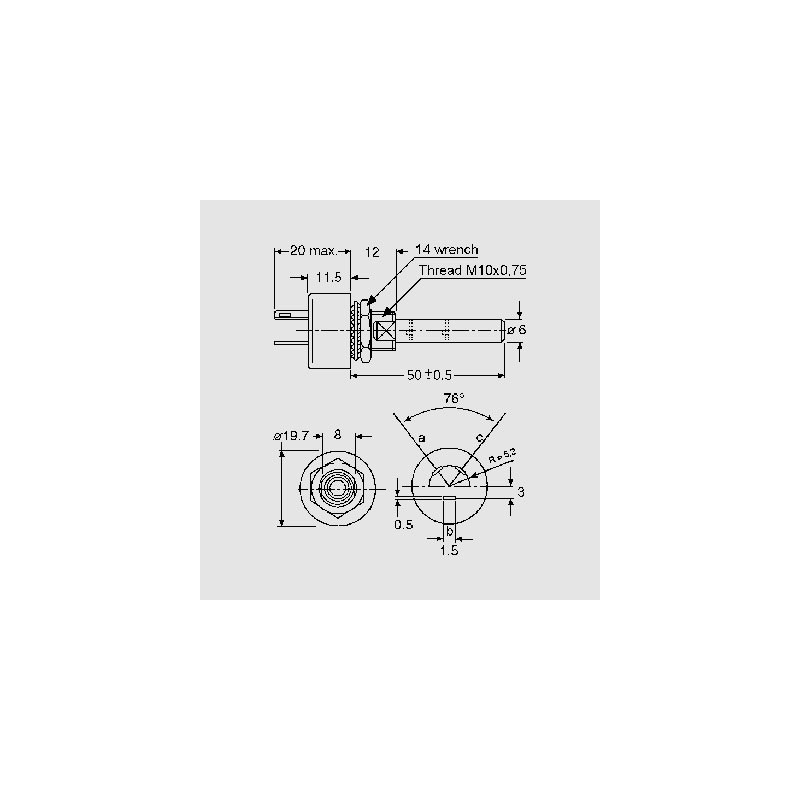

• shaft: metal, Ø6mm
• housing: Ø19,7mm
• high performance
• low temperature coefficient
• excellent stability
• completely sealed
• high mechanical strength
• hold-off voltage: 300V
• dielectric strength (RMS): 2500V
• standard tolerance: ±20%
• resistive element: cermet
• end resistance (typ.): 1Ω
• mechanical rotation angle: 300° ±5°
• electrical rotation angle: 270° ±10°
• operating torque, max.: 3Ncm
• stop end torque, max.: 120Ncm
• temperature range: -55...+125°C
• temperature coefficient (typ.): ±150ppm/°C
• climatic category: 55/125/56
• sealing: IP67
• by vishay

PE 30 lin 4,7 k

5169 PE 30 lin 4,7 k PE30L0FR472MAB PE30L0FR472MAB 3W, cermet potentiometer. • linear• power: 3 watt• shaft: metal, Ø6mm• housing: Ø19,7mm• high performance• low temperature coefficient• excellent stability• completely sealed• high mechanical strength• hold-off voltage: 300V• dielectric strength (RMS): 2500V• standard tolerance: ±20%• resistive element: cermet• end resistance (typ.): 1Ω• mechanical rotation angle: 300° ±5°• electrical rotation angle: 270° ±10°• operating torque, max.: 3Ncm• stop end torque, max.: 120Ncm• temperature range: -55...+125°C• temperature coefficient (typ.): ±150ppm/°C• climatic category: 55/125/56• sealing: IP67• by vishay

Specifications

manufacturer
Manufacturer's name PE30L0FR472MAB
Resistance [Ω] 4,7k
Power, max. [W] 3
Transmission current, max. [mA] 25
Max. operating voltage [V] 119,9
Data Sheet

Unit price

19,99 €

Stock: 96
Further delivery:
CW 28/2024
