> Passive elements>Resistors>Thick-film resistors>Vishay thick-film resistors, 5%, 4/25W, RCH 25 series>RCH 25 47 R

Manufacturers

RCH 25 47 R

thick-film resistors

• by Vishay
• series RCH25
• loose
• compact size
• easy mounting
• high insulation resistance 106MΩ
• tolerance: ±5%
• power rating with heatsink: 25 Watt
• power rating without heatsink: 4W
• operating voltage, max.: 550V
• dielectric strength: 3500V
• operating temperature range: -55 to 125°C
• climatic category: 55/125/56

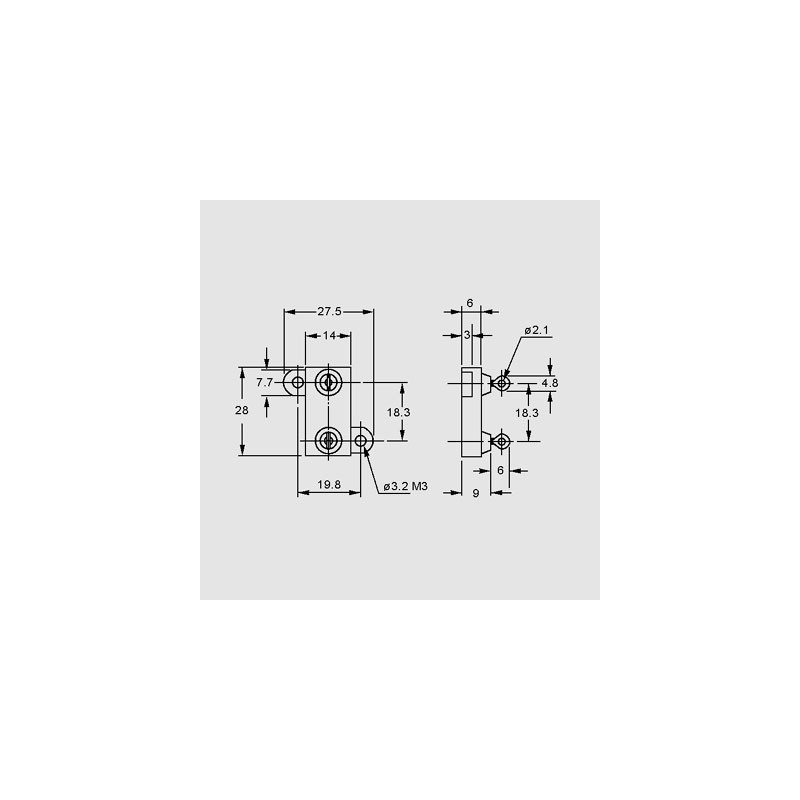

dimensions

RCH 25 47 R

4728 RCH 25 47 R RCH25S47R00JS06 RCH25S47R00JS06 thick-film resistors. • by Vishay• series RCH25• loose• compact size• easy mounting• high insulation resistance 106MΩ• tolerance: ±5%• power rating with heatsink: 25 Watt• power rating without heatsink: 4W• operating voltage, max.: 550V• dielectric strength: 3500V• operating temperature range: -55 to 125°C• climatic category: 55/125/56

Specifications

manufacturer
Manufacturer's name RCH25S47R00JS06
Resistance [Ω] 47
Power [W] 4/25
Tolerance [%] 5
Data Sheet

Unit price

6,99 €

Stock: 17
Next incoming goods:
CW 27/2024
100 units

Further delivery:
CW 32/2024

Minimum order quantity 2 units or
multiples of 2.
