> Passive elements>Resistors>Thick-film resistors>Vishay thick-film resistors, TO220, 5%, 2,25/50W, RTO 50 series>RTO 50 F 47 R

Manufacturers

RTO 50 F 47 R

thick-film resistors

• by Vishay
• series RTO50
* low inductance
• compact size
• easy mounting due to TO220-package
• tolerance: ±5%
• power rating with heatsink: 50 Watt
• power rating without heatsink: 2.25W
• operating voltage, max.: 300V
• dielectric strength: 2000Vrms
• operating temperature range: -55 to 155°C
• climatic category: 55/155/156

Vishay series RTO 50 F

RTO 50 F 47 R

4768 RTO 50 F 47 R RTO050F47R00JTE1 RTO050F47R00JTE1 thick-film resistors. • by Vishay• series RTO50* low inductance• compact size• easy mounting due to TO220-package• tolerance: ±5%• power rating with heatsink: 50 Watt• power rating without heatsink: 2.25W• operating voltage, max.: 300V• dielectric strength: 2000Vrms• operating temperature range: -55 to 155°C• climatic category: 55/155/156

Specifications

manufacturer
Manufacturer's name RTO050F47R00JTE1

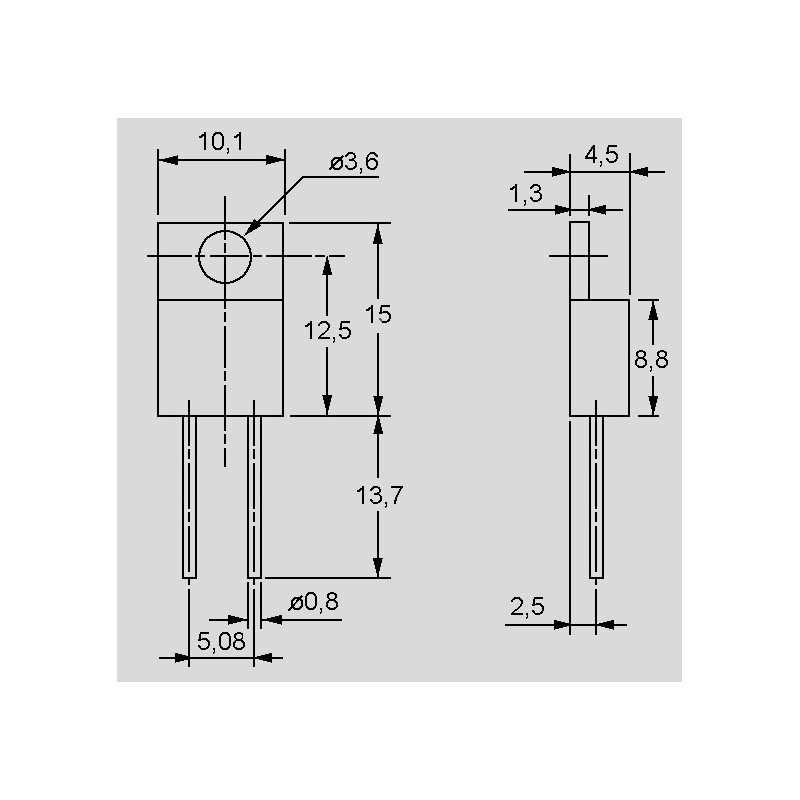

Design TO220
Resistance [Ω] 47
Power [W] 2,25/50
Tolerance [%] 5
Data Sheet

Unit price

6,99 €

Stock: 94
Further delivery:
CW 08/2026

Minimum order quantity 2 units or
multiples of 2.
