> Passive elements>Potentiometers>Trimmer potentiometers>Vishay multiturn trimmers, 0,25W, precision trimmers 1/4", T63 series>3266 X 470 R

Manufacturers

3266 X 470 R

1/4, 0.25 Watt

* vertical
* standard tolerance: ±10%
* resistive element: Cermet
* sealing: IP67
* mechanical travel: 15 ±5
* operating torque, end position: clutch action
* operating torque (max.): 1 Ncm
* weight: 0.5g

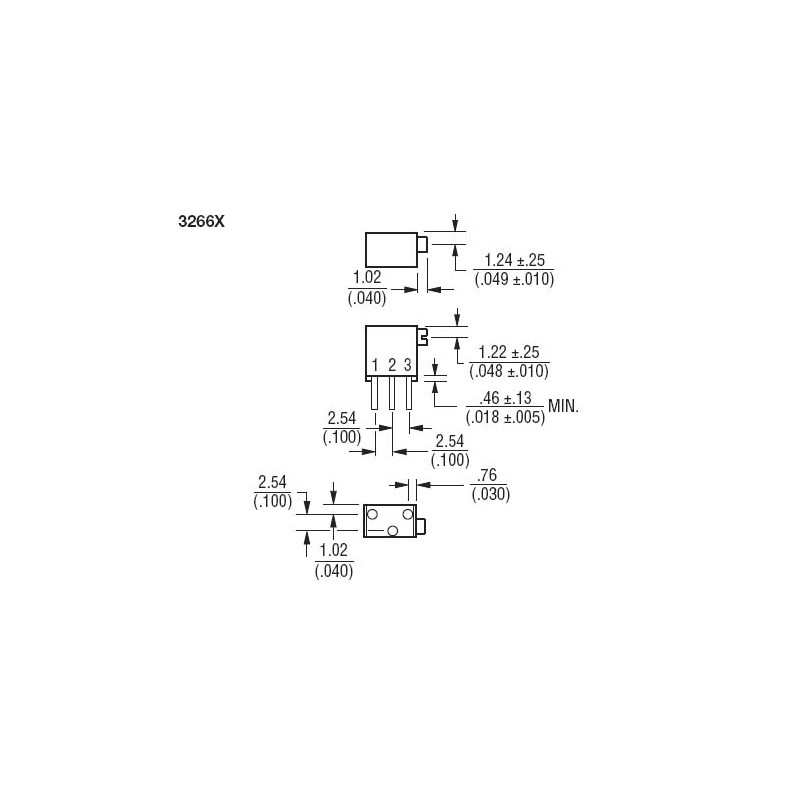

3266 X

3266 X 470 R

27644 3266 X 470 R T63XB471KT20 T63XB471KT20 1/4, 0.25 Watt. * vertical* standard tolerance: ±10%* resistive element: Cermet* sealing: IP67* mechanical travel: 15 ±5* operating torque, end position: clutch action* operating torque (max.): 1 Ncm* weight: 0.5g

Specifications

manufacturer
Manufacturer's name T63XB471KT20
Resistance [Ω] 470
Power, max. [W] 0,25
Transmission current, max. [mA] 23
Max. operating voltage [V] 10,8
Data Sheet

Unit price

2,29 €

Stock: 204
Further delivery:
CW 18/2027

Minimum order quantity 1 to 4 units or multiples of 10 plus 0 to 4 .
