> Passive elements>Potentiometers>Trimmer potentiometers>Vishay multiturn trimmers, 0,25W, precision trimmers 1/4", T63 series>3266 W 10 k

Manufacturers

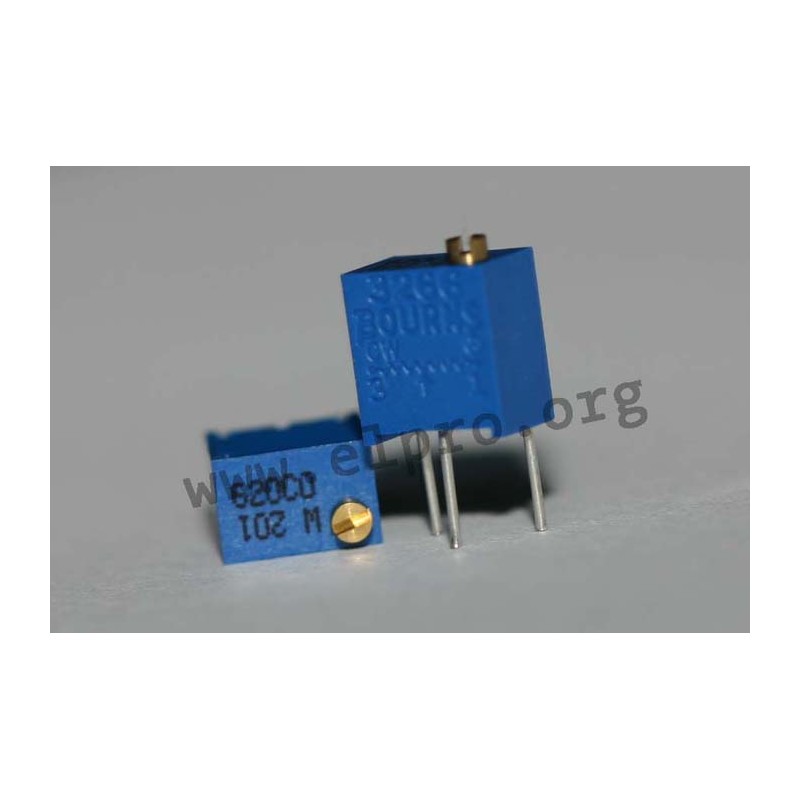

3266 W 10 k

1/4, 0.25 Watt

* vertical
* standard tolerance: ±10%
* resistive element: Cermet
* sealing: IP67
* mechanical travel: 15 ±5
* operating torque, end position: clutch action
* operating torque (max.): 1 Ncm
* weight: 0.5g

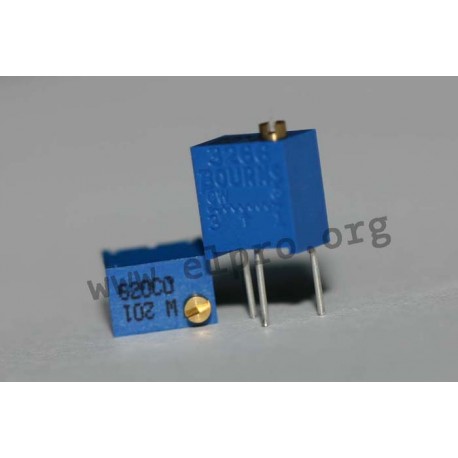

3266 W

3266 W 10 k

6145 3266 W 10 k T63YB103KT20 T63YB103KT20 1/4, 0.25 Watt. * vertical* standard tolerance: ±10%* resistive element: Cermet* sealing: IP67* mechanical travel: 15 ±5* operating torque, end position: clutch action* operating torque (max.): 1 Ncm* weight: 0.5g

Specifications

manufacturer
Manufacturer's name T63YB103KT20
Resistance [Ω] 10k
Power, max. [W] 0,25
Transmission current, max. [mA] 5
Max. operating voltage [V] 50
Data Sheet

Unit price

1,92 €

Stock: 5
Next incoming goods:
CW 44/2026
300 units

Further delivery:
CW 46/2026

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
