> Passive elements>Potentiometers>Trimmer potentiometers>Vishay multiturn trimmers, 0,25W, precision trimmers 1/4", T63 series>3266 W 500 R

Manufacturers

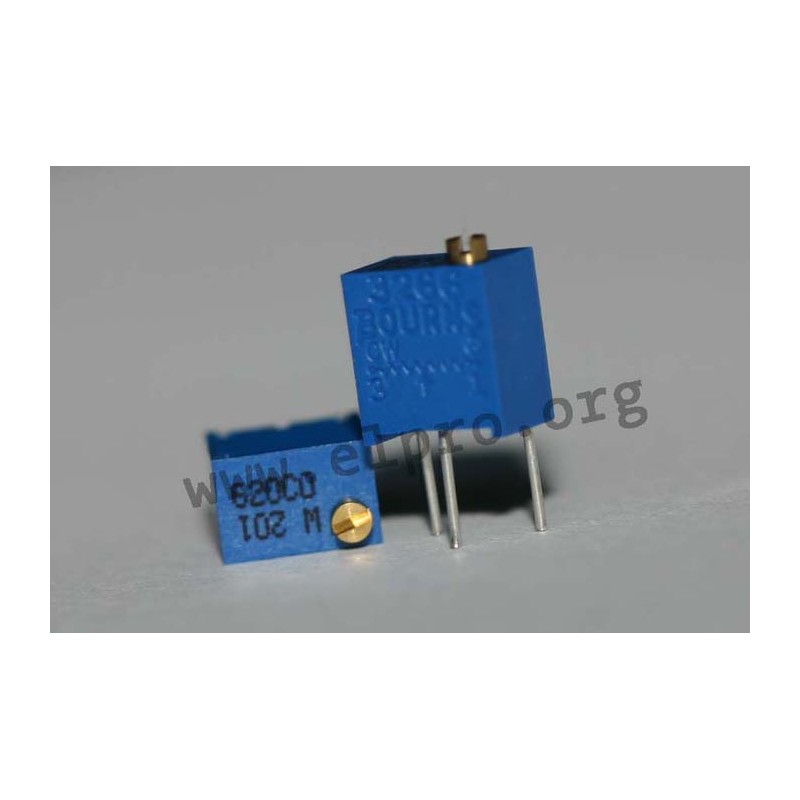

3266 W 500 R

1/4, 0.25 Watt

* vertical
* standard tolerance: ±10%
* resistive element: Cermet
* sealing: IP67
* mechanical travel: 15 ±5
* operating torque, end position: clutch action
* operating torque (max.): 1 Ncm
* weight: 0.5g

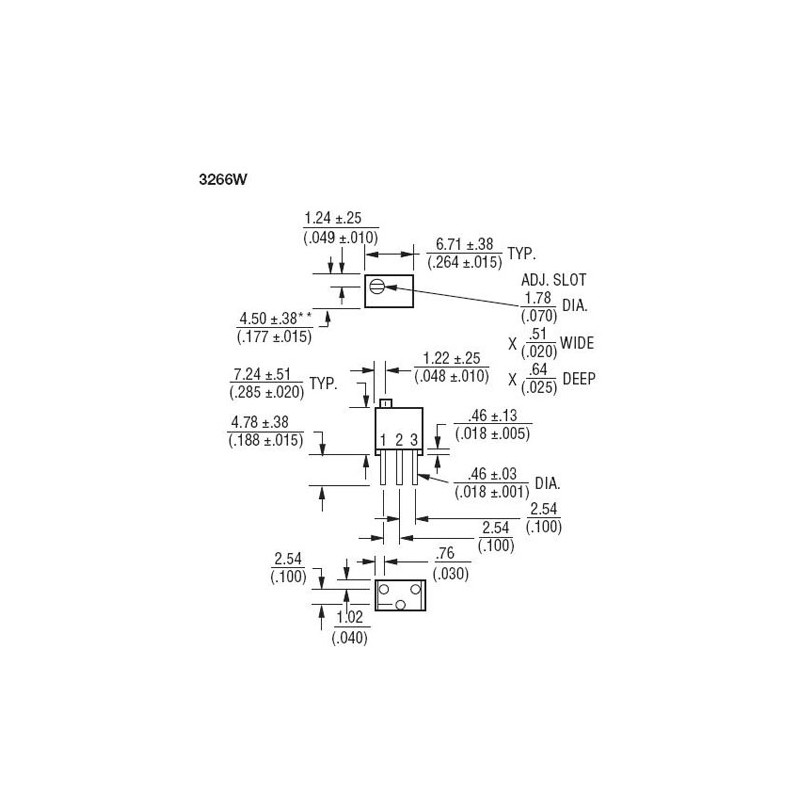

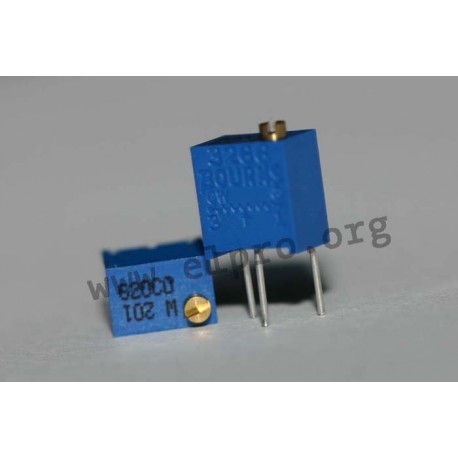

3266 W

3266 W 500 R

6154 3266 W 500 R T63YB471KT20 T63YB471KT20 1/4, 0.25 Watt. * vertical* standard tolerance: ±10%* resistive element: Cermet* sealing: IP67* mechanical travel: 15 ±5* operating torque, end position: clutch action* operating torque (max.): 1 Ncm* weight: 0.5g

Specifications

manufacturer
Manufacturer's name T63YB471KT20
Resistance [Ω] 500
Power, max. [W] 0,25
Transmission current, max. [mA] 23
Max. operating voltage [V] 10,8
Data Sheet

Unit price

2,09 €

Stock: 6
Next incoming goods:
CW 09/2027
450 units

Further delivery:
CW 11/2027

Minimum order quantity 1 to 6 units or multiples of 10 plus 0 to 6 .
