T7 YA 100 k

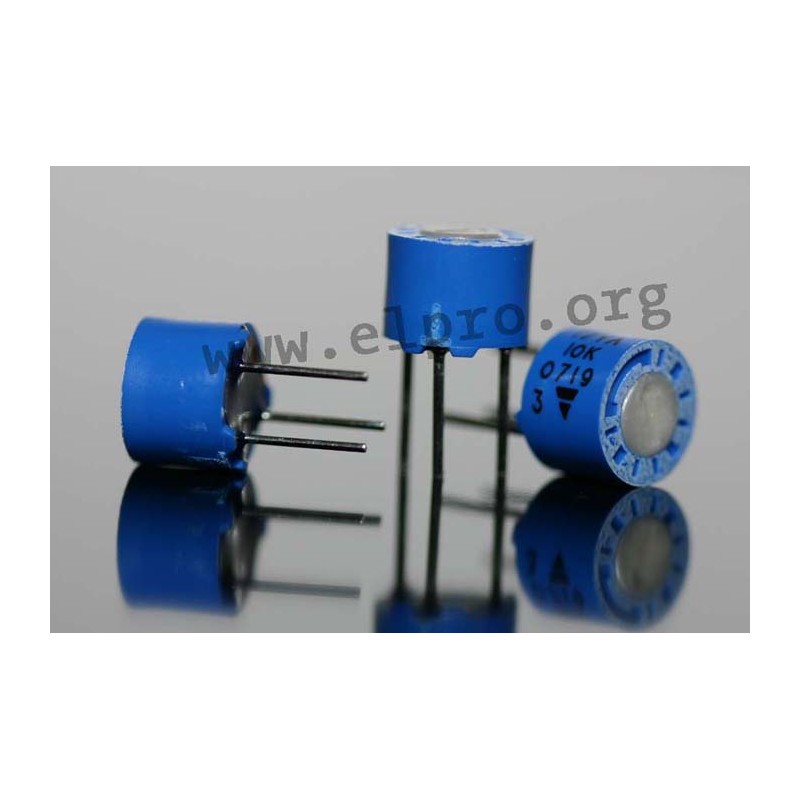

Vishay trimmer potentiometers series T7YA

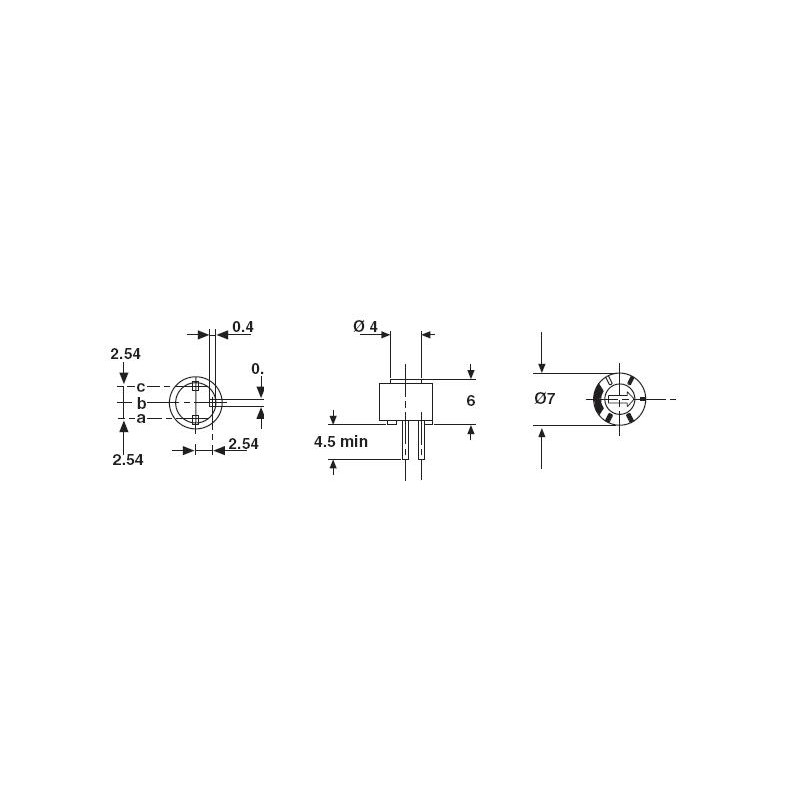

High stability trimmer potentiometers with a low temperature coefficient and easy to read scale. They are only 7mm (0.275”) in diameter and come in a sealed plastic case. We offer various types of this Vishay series.

  • taper: linear
  • power rating (TU = 85°C): 0.5W
  • operating voltage, max.: 250V
  • temperature range: -55 to +125°C
  • protection class: IP64

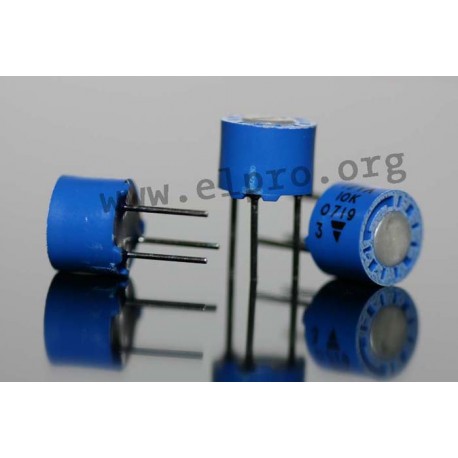

Vishay series T7 YA

T7 YA 100 k

27638 T7 YA 100 k T7YA104MT20 T7YA104MT20 Vishay trimmer potentiometers series T7YA. High stability trimmer potentiometers with a low temperature coefficient and easy to read scale. They are only 7mm (0.275”) in diameter and come in a sealed plastic case. We offer various types of this Vishay series. taper: linear power rating (TU = 85°C): 0.5W operating voltage, max.: 250V temperature range: -55 to +125°C protection class: IP64

Specifications

manufacturer
Manufacturer's name T7YA104MT20
Resistance [Ω] 100k
Power, max. [W] 0,5
Data Sheet

Unit price

2,09 €

Stock: 425
Further delivery:
CW 10/2026

Minimum order quantity 25 units or
multiples of 25.
