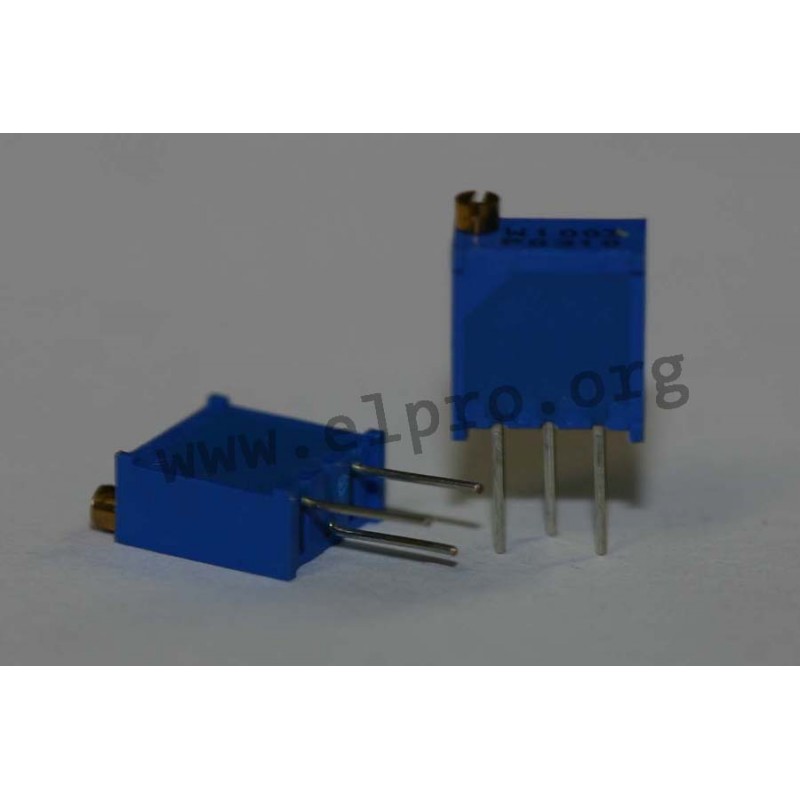

64 Y 100 R

3/8, 0.5W

* developed for compact packing as the housing width is only 5mm
* wiper in precise multi-functional finger design
* contact resistance variation <1% (typical)
* standard tolerance: ±10%
* resistive element: cermet
* temperature range: -55...+155°C

64 Y

64 Y 100 R

6221 64 Y 100 R T93YB101KT20 T93YB101KT20 3/8, 0.5W. * developed for compact packing as the housing width is only 5mm* wiper in precise multi-functional finger design* contact resistance variation &lt;1% (typical)* standard tolerance: ±10%* resistive element: cermet* temperature range: -55...+155°C

Specifications

manufacturer
Manufacturer's name T93YB101KT20
Resistance [Ω] 100
Power, max. [W] 0,5
Data Sheet

Unit price

0,854 €

Stock: 790
Next incoming goods:
CW 23/2024
1000 units

Further delivery:
CW 33/2024

Minimum order quantity 10 units or
multiples of 10.
