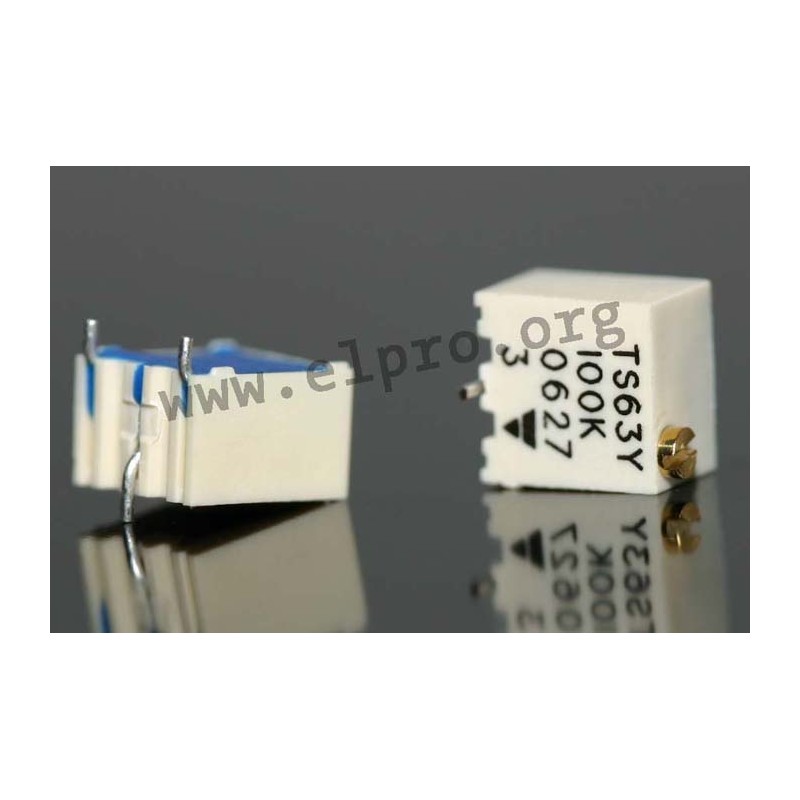

64 Y 500 R SMD

0.25 W, SMD

* standard tolerance: ±10%
* resistive element: cermet
* temperature range: -55...+155°C
* climatic category: 55/125/56
* sealing: IP67
* mechanical travel: 15 ±5
* operating torque, end position: clutch action
* operating torque (max.): 1.5Ncm
* weight: 0.5

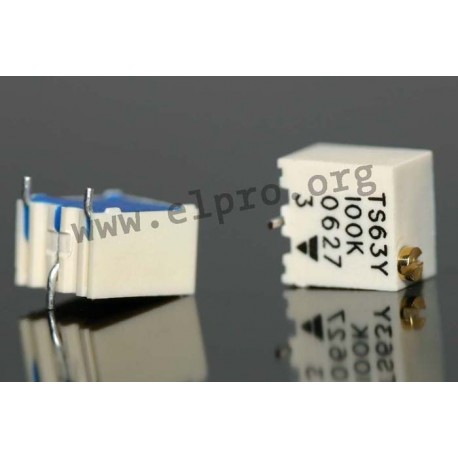

Vishay series TS63Y

64 Y 500 R SMD

6197 64 Y 500 R SMD TS63Y501KT20 TS63Y501KT20 0.25 W, SMD. * standard tolerance: ±10%* resistive element: cermet* temperature range: -55...+155°C* climatic category: 55/125/56* sealing: IP67* mechanical travel: 15 ±5* operating torque, end position: clutch action* operating torque (max.): 1.5Ncm* weight: 0.5

Specifications

manufacturer
Manufacturer's name TS63Y501KT20
Resistance [Ω] 500
Power, max. [W] 0,25
Data Sheet

Unit price

2,19 €

Stock: 8
Next incoming goods:
CW 24/2024
100 units

Further delivery:
CW 31/2024

Minimum order quantity 1 to 8 units or multiples of 10 plus 0 to 8 .
