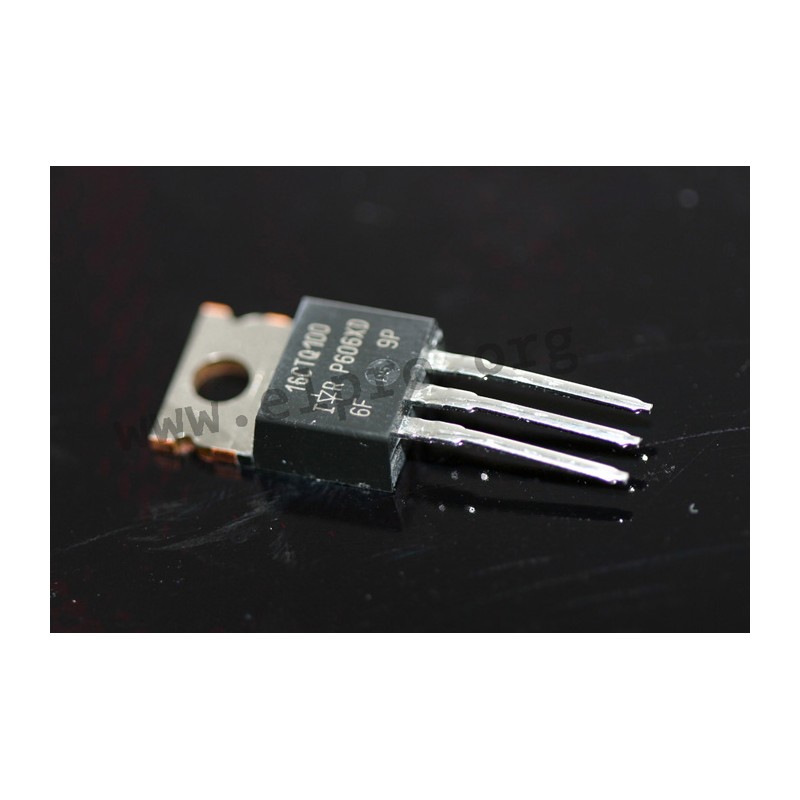

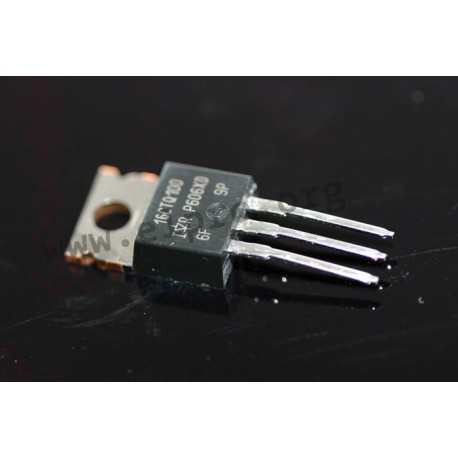

10 CTQ 150

Vishay Schottky diode series VS

  • Schottky diodes
  • in a TO220AB (10 C_/16 C_) resp. TO247AC housing (30 C_/40 C_)
  • operating temperature: -55 to +175°C

10 CTQ 150

114 10 CTQ 150 VS-10CTQ150-M3 VS-10CTQ150-M3 Vishay Schottky diode series VS. Schottky diodes in a TO220AB (10 C_/16 C_) resp. TO247AC housing (30 C_/40 C_) operating temperature: -55 to +175°C

Data sheet

manufacturer
manufacturer's name VS-10CTQ150-M3

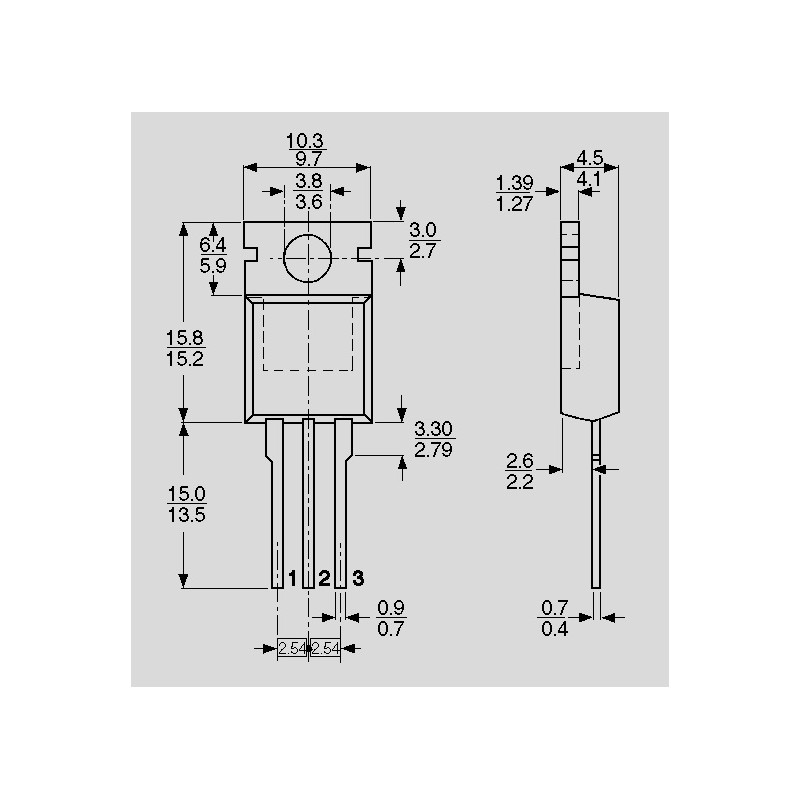

case TO220AB
(max.) peak recurrent reverse voltage [V] 150
forward voltage [V] 0,93
(max.) average forward (rectified) current [A] 2x5
reverse current [µA] 0,05

Download

Data Sheet

3,19 €

Volume discounts

10 pcs. / 0,851 €

stock: 466
