> Passive elements>Resistors>Wire resistors>Vitrohm wire resistors, 0613 housing, 5%, 2,5W, CR series>AC 03 3 k

Manufacturers

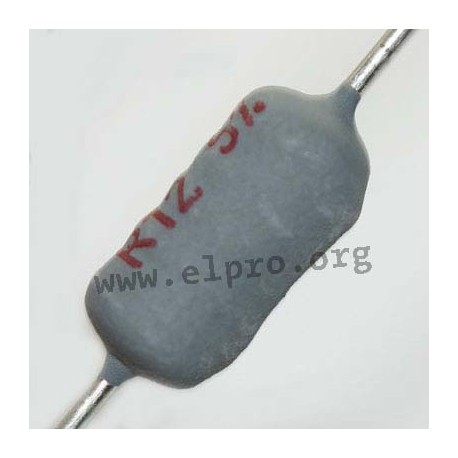

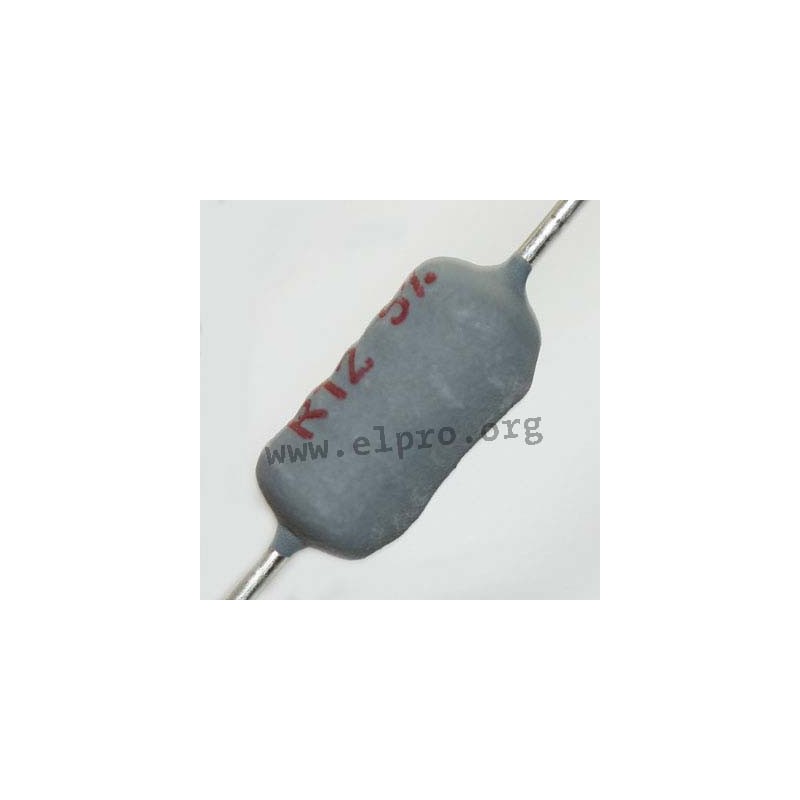

AC 03 3 k

cemented wire resistors

* taped
* wound on a ceramic core
* enamelled resistor core
* resistance tolerance: ±5%
* power rating(P70): 2.5W
* insulation voltage, max.: 75Veff
* temperature range: -55...+350°C

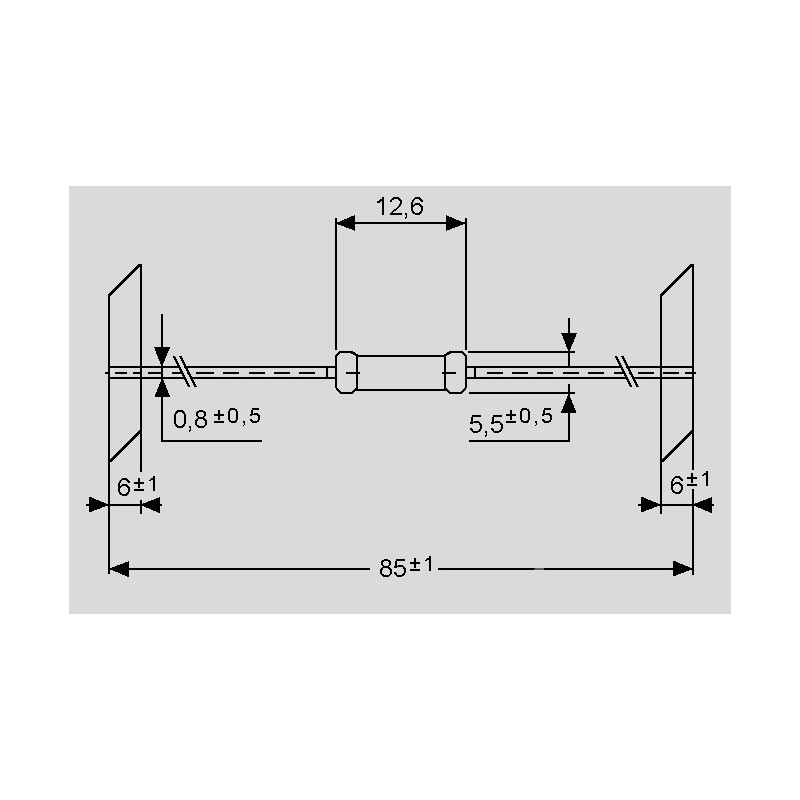

0613 housing

AC 03 3 k

7001 AC 03 3 k AC 03 3 k cemented wire resistors. * taped * wound on a ceramic core * enamelled resistor core * resistance tolerance: ±5% * power rating(P70): 2.5W * insulation voltage, max.: 75Veff * temperature range: -55...+350°C

Discontinued items. Only remainder of stock available.

Specifications

Design 0613
Resistance [Ω] 3k
Power [W] 2,5
Tolerance [%] 5
Data Sheet

Unit price

0,17 €

Stock: 78
