> Passive elements>Resistors>Metal oxide resistors>Vitrohm metal oxide resistors, 0414 housing, 5%, 2W, POS series>593-0 10 M

Manufacturers

593-0 10 M

metal oxide resistors

• taped
• rugged metal oxide film
• high power dissipation in small size
• high temperature coating, non-flammable
• resistance tolerance: ±5%
• power (70°C): 2 Watt
• operating voltage: 500Veff
• thermal resistance, min.: 80K/W
• insulation resistance: >1000MΩ
• insulation voltage (1 min): 500Veff
• temperature range: -55...+235°C

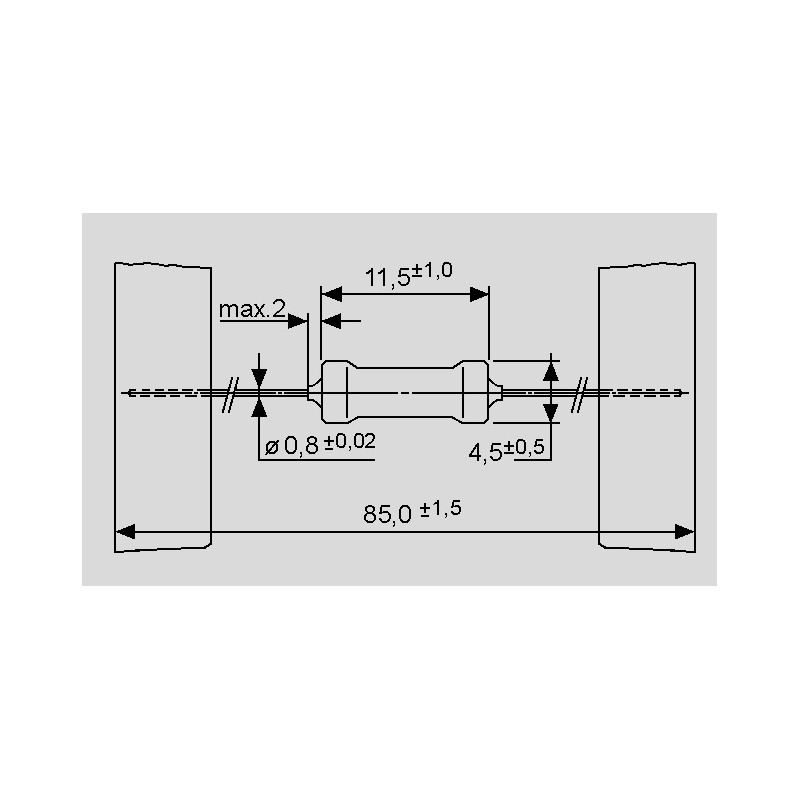

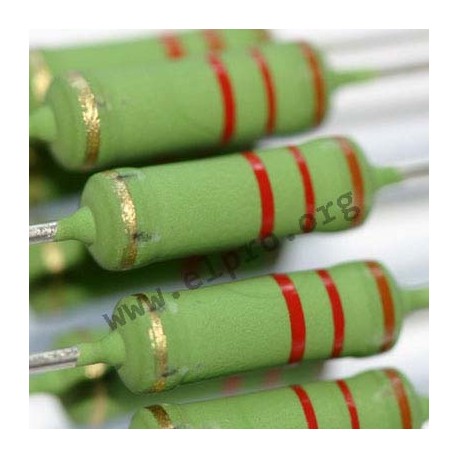

0414 housing

593-0 10 M

5724 593-0 10 M 593-0 10 M metal oxide resistors. • taped• rugged metal oxide film• high power dissipation in small size• high temperature coating, non-flammable• resistance tolerance: ±5%• power (70°C): 2 Watt• operating voltage: 500Veff• thermal resistance, min.: 80K/W• insulation resistance: >1000MΩ• insulation voltage (1 min): 500Veff• temperature range: -55...+235°C

Specifications

Design 0414
Resistance [Ω] 10M
Power [W] 2
Tolerance [%] 5
Data Sheet

Unit price

0,09 €

Stock: 14
