> Passive elements>Resistors>Metal oxide resistors>Vitrohm metal oxide resistors, 0414 housing, 5%, 2W, POS series>593-0 4,7 R

Manufacturers

593-0 4,7 R

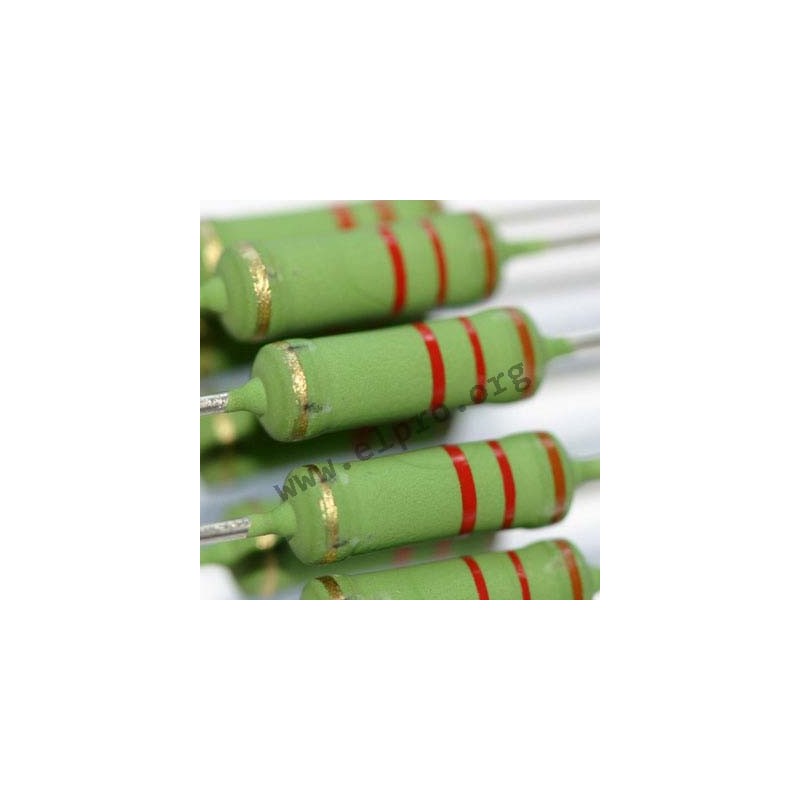

metal oxide resistors

• taped
• rugged metal oxide film
• high power dissipation in small size
• high temperature coating, non-flammable
• resistance tolerance: ±5%
• power (70°C): 2 Watt
• operating voltage: 500Veff
• thermal resistance, min.: 80K/W
• insulation resistance: >1000MΩ
• insulation voltage (1 min): 500Veff
• temperature range: -55...+235°C

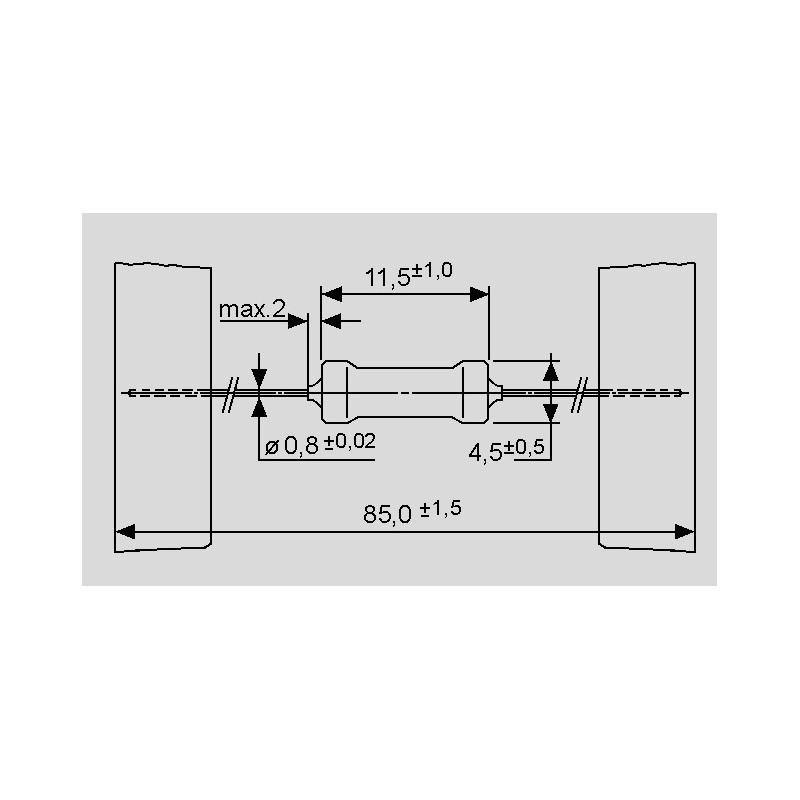

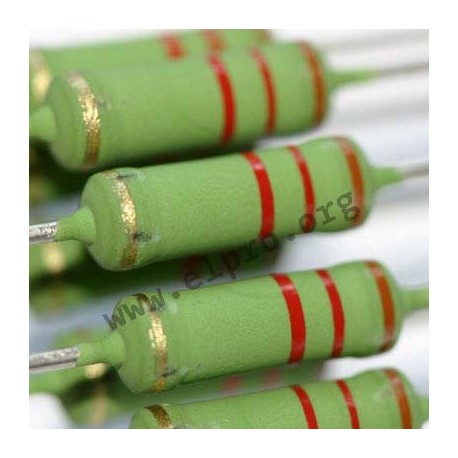

0414 housing

593-0 4,7 R

5770 593-0 4,7 R 593-0 4,7 R metal oxide resistors. • taped• rugged metal oxide film• high power dissipation in small size• high temperature coating, non-flammable• resistance tolerance: ±5%• power (70°C): 2 Watt• operating voltage: 500Veff• thermal resistance, min.: 80K/W• insulation resistance: >1000MΩ• insulation voltage (1 min): 500Veff• temperature range: -55...+235°C

Discontinued items. Only remainder of stock available.

Specifications

Design 0414
Resistance [Ω] 4,7
Power [W] 2
Tolerance [%] 5
Data Sheet

Unit price

0,09 €

Stock: 4
