> Passive elements>Resistors>Metal oxide resistors>Vitrohm metal oxide resistors, 0207 housing, 5%, 1W, POS series>595-0 6,8 R

Manufacturers

595-0 6,8 R

metal oxide resistors

* taped
* rugged metal oxide film
* high power dissipation in small size
* high temperature coating, non-flammable
* resistance tolerance: ±5%
* power (70°C): 1W
* operating voltage, max.: 500Veff
* thermal resistance, min.: 140K/W
* insulation resistance, max.: 1000MΩ
* insulation voltage (1 min), max.: 500Veff
* temperature range: -55...+250°C

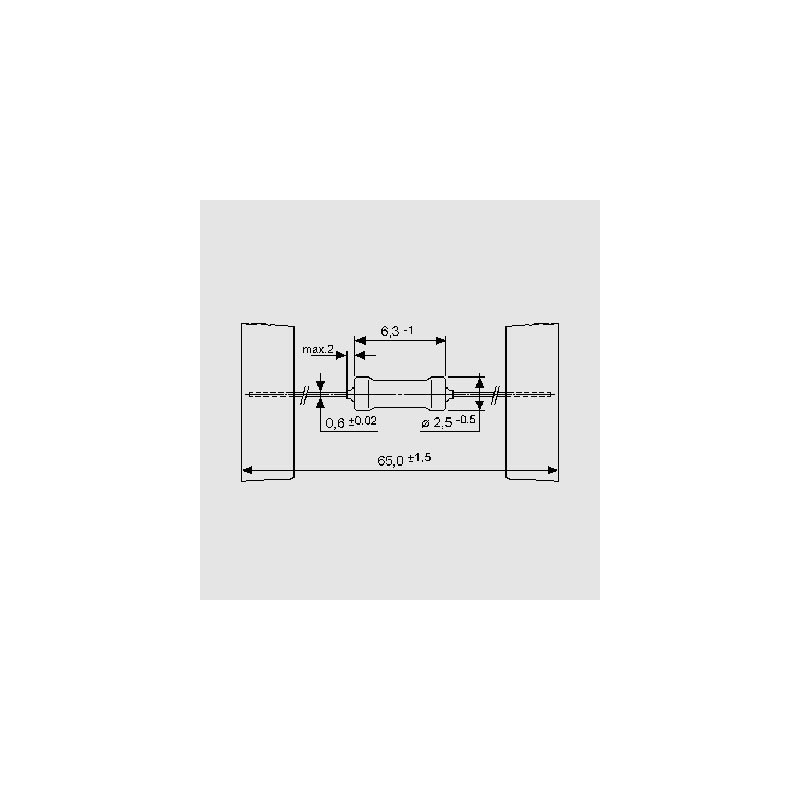

0207 housing

595-0 6,8 R

5915 595-0 6,8 R 595-0 6,8 R metal oxide resistors. * taped * rugged metal oxide film * high power dissipation in small size * high temperature coating, non-flammable * resistance tolerance: ±5% * power (70°C): 1W * operating voltage, max.: 500Veff * thermal resistance, min.: 140K/W * insulation resistance, max.: 1000MΩ * insulation voltage (1 min), max.: 500Veff * temperature range: -55...+250°C

Discontinued items. Only remainder of stock available.

Specifications

Design 0207
Resistance [Ω] 6,8
Power [W] 1
Tolerance [%] 5

Unit price

0,05 €

Stock: 56
