FSG 6,3x0,8

Vogt and Osterrath flat tab series FS and 61

  • flat tabs for soldering, screwing or crimping
  • with a width of 6,3mm
  • crimping plier for FS 6,3x0,8 1mm² and FS 6,3x0,8 2,5mm²: EWZ 301
  • matching insulation housings available (ITFS 2,5mm)
FSG 6,3x0,8

FSG 6,3x0,8

32797 FSG 6,3x0,8 FSG 6,3x0,8 Vogt and Osterrath flat tab series FS and 61. flat tabs for soldering, screwing or crimping  with a width of 6,3mm crimping plier for FS 6,3x0,8 1mm² and FS 6,3x0,8 2,5mm²: EWZ 301 matching insulation housings available (ITFS 2,5mm)

Discontinued items. Only remainder of stock available.

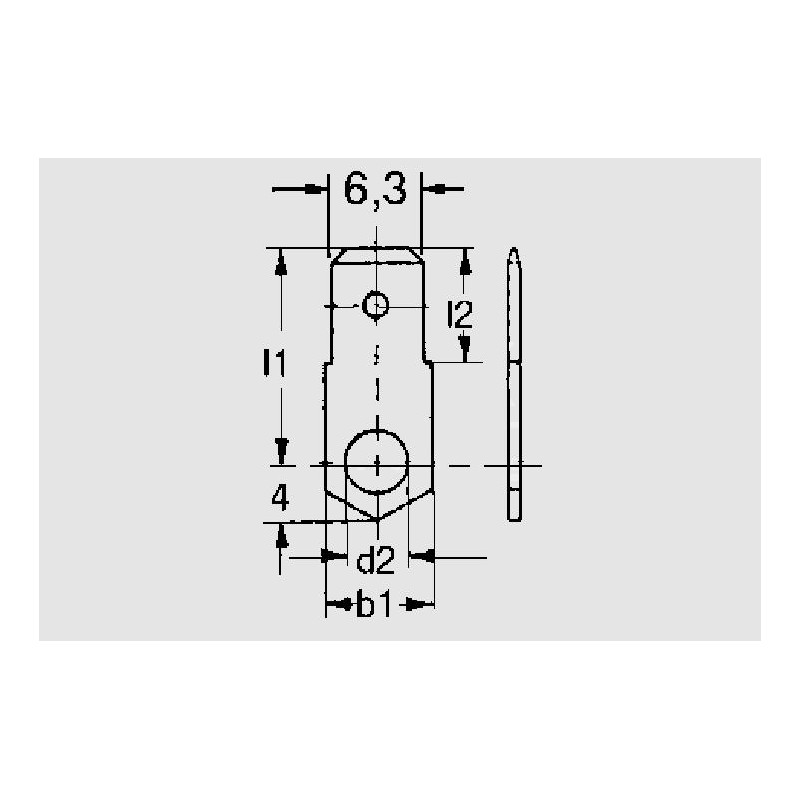

Specifications

d2 [mm] 4,3
I1 [mm] 15
I2 [mm] 8
Workmanship schrauben, löten
Material strength [mm] 0,8
B1 [mm] 7

Unit price

0,09 €

Stock: 70
