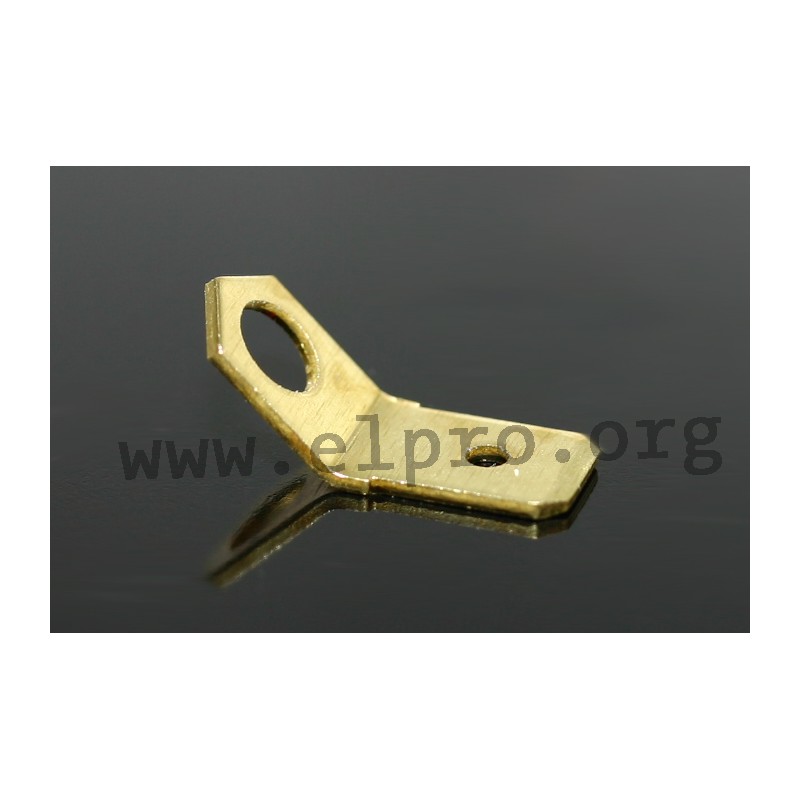

FSW 6,3x0,8

Vogt and Osterrath flat tab series FS and 61

  • flat tabs for soldering, screwing or crimping
  • with a width of 6,3mm
  • crimping plier for FS 6,3x0,8 1mm² and FS 6,3x0,8 2,5mm²: EWZ 301
  • matching insulation housings available (ITFS 2,5mm)

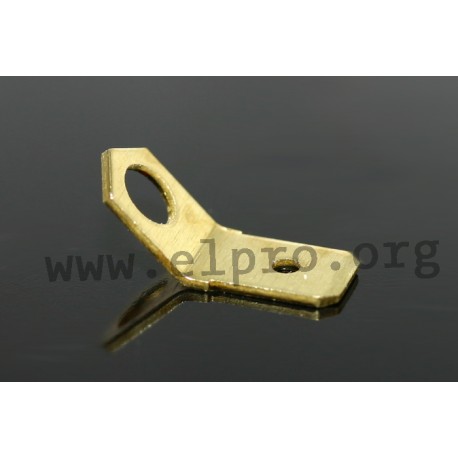

FSW 6,3x0,8

FSW 6,3x0,8

32809 FSW 6,3x0,8 17.441.123.003 17.441.123.003 Vogt and Osterrath flat tab series FS and 61. flat tabs for soldering, screwing or crimping  with a width of 6,3mm crimping plier for FS 6,3x0,8 1mm² and FS 6,3x0,8 2,5mm²: EWZ 301 matching insulation housings available (ITFS 2,5mm)

Specifications

Manufacturer's name 17.441.123.003
I3 [mm] 5
d2 [mm] 4,3
Angle [°] 45
I4 [mm] 10
I1 [mm] 19
I2 [mm] 8
Workmanship schrauben, löten
Material strength [mm] 0,8
B1 [mm] 7

Unit price

0,095 €

Stock: 16900
Next incoming goods:
CW 22/2024
10500 units

Further delivery:
CW 25/2024

Minimum order quantity 100 units or
multiples of 100.
