2060-452/998-404

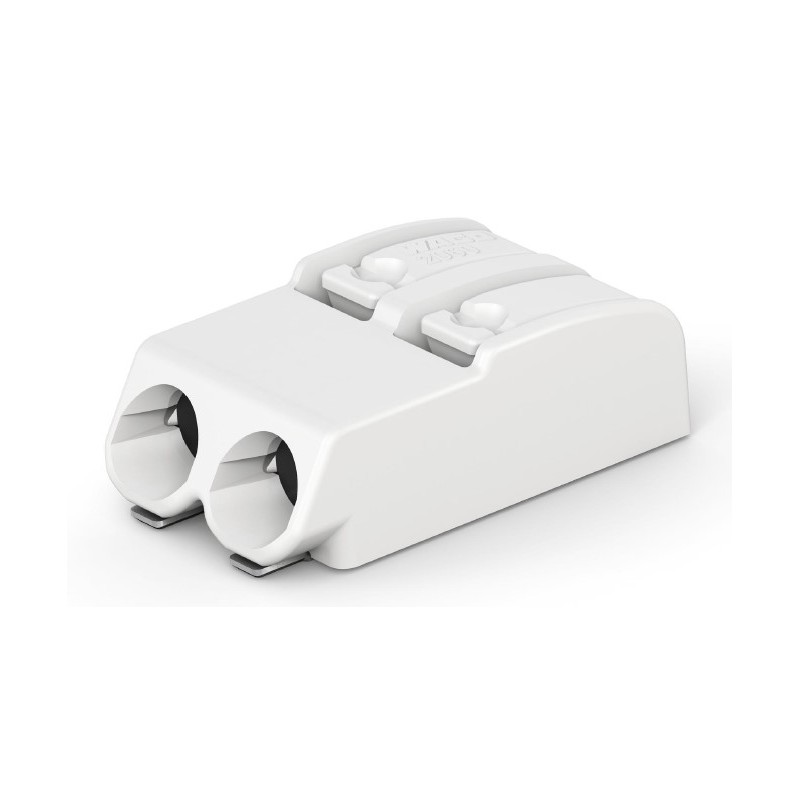

Wago SMD spring force terminals of the series 2060

  • with push-in CAGE CLAMP® connection technology
  • without lever
  • conductor: horizontal
  • 1- to 3-pole
  • rated voltage: 160V or 630V
  • rated current: 9A
  • nominal cross section solid-core wire: 0,2mm² to 0,75mm²
  • nominal cross section fine-stranded wire: 0,2mm² to 0,75mm²
  • strip length: 7mm to 9mm
  • pitch: 4mm or 8mm
  • operating temperature: -60°C to +105°C
  • insulating material: Polyphtalamide (PPA GF)
  • flammability class: UL94-0
  • color: white
  • taped

2060-452/998-404

112400 2060-452/998-404 2060-452/998-404 Wago SMD spring force terminals of the series 2060. with push-in CAGE CLAMP® connection technologywithout leverconductor: horizontal1- to 3-polerated voltage: 160V or 630Vrated current: 9Anominal cross section solid-core wire: 0,2mm² to 0,75mm²nominal cross section fine-stranded wire: 0,2mm² to 0,75mm²strip length: 7mm to 9mmpitch: 4mm or 8mmoperating temperature: -60°C to +105°Cinsulating material: Polyphtalamide (PPA GF)flammability class: UL94-0color: whitetaped

Specifications

manufacturer
Manufacturer's name 2060-452/998-404
Design without lever
Number of poles 2
Pitch [mm] 4
Length [mm] 7,9
Data Sheet

Unit price

0,63 €

Stock: 1080
Further delivery:
CW 24/2024

Minimum order quantity 10 units or
multiples of 10.
