2070-451/998-406

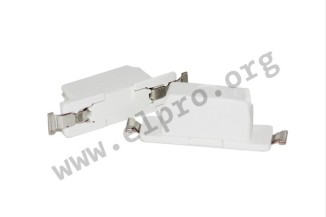

Wago circuit board clamp series 2070 and 2075

  • surface mount spring force terminals with a screwless connection without a lever
  • contact spacing: 6,5 (2070_) resp. 3mm (2075_)
  • actuation tool for 2070 series is available seperately (2070-400)
  • for the back-side wiring of LED modules
  • series 2075_ comes with no case
  • rated current: 9A

2070-451/998-406

2070-451/998-406

131586 2070-451/998-406 2070-451/998-406 Wago circuit board clamp series 2070 and 2075. surface mount spring force terminals with a screwless connection without a lever contact spacing: 6,5 (2070_) resp. 3mm (2075_)  actuation tool for 2070 series is available seperately (2070-400) for the back-side wiring of LED modules series 2075_ comes with no case rated current: 9A

Specifications

manufacturer
Manufacturer's name 2070-451/998-406
Data Sheet

Unit price

0,378 €

Stock: 954
Further delivery:
CW 03/2025

Minimum order quantity 5 units or
multiples of 5.
