2606-1108/020-000

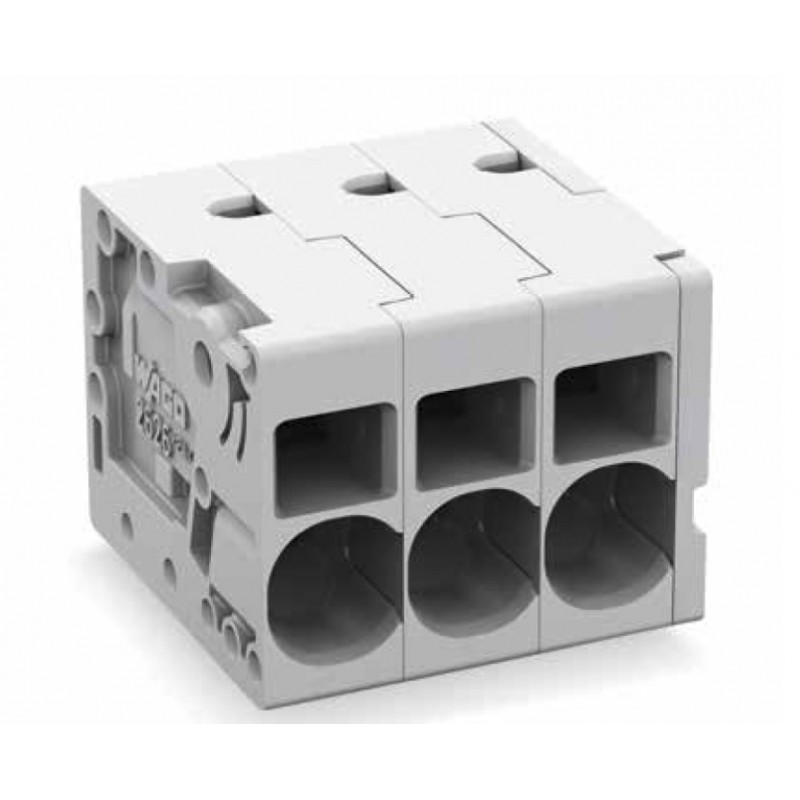

Wago spring force terminal series 2606 and 2626

PCB terminal blocks (6mm²) with tool operation. We are offering various types by WAGO in a straight or angled design.

  • rated cross section single stranded wire: 0.5 to 10mm2
  • rated cross section fine stranded wire: 0.5 to 10mm2
  • stripped length: 11 to 13mm
  • insulating material: PA 6.6
  • temperature range: -60 to +105°C
  • flammability class: UL94V-0
  • colour: grey

2606-1108/020-000

131560 2606-1108/020-000 2606-1108/020-000 Wago spring force terminal series 2606 and 2626. PCB terminal blocks (6mm²) with tool operation. We are offering various types by WAGO in a straight or angled design. rated cross section single stranded wire: 0.5 to 10mm2 rated cross section fine stranded wire: 0.5 to 10mm2 stripped length: 11 to 13mm insulating material: PA 6.6 temperature range: -60 to +105°C flammability class: UL94V-0 colour: grey

Specifications

manufacturer
Manufacturer's name 2606-1108/020-000
Design angled
Number of poles 8
Actuator lever
Data Sheet

Unit price

9,89 €

Stock: 30
Further delivery:
CW 50/2024

Minimum order quantity 3 units or
multiples of 3.
