2624-1103

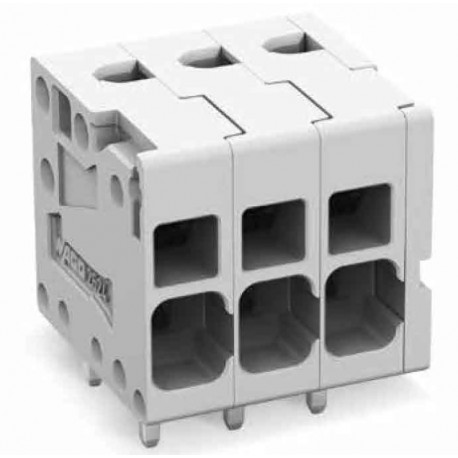

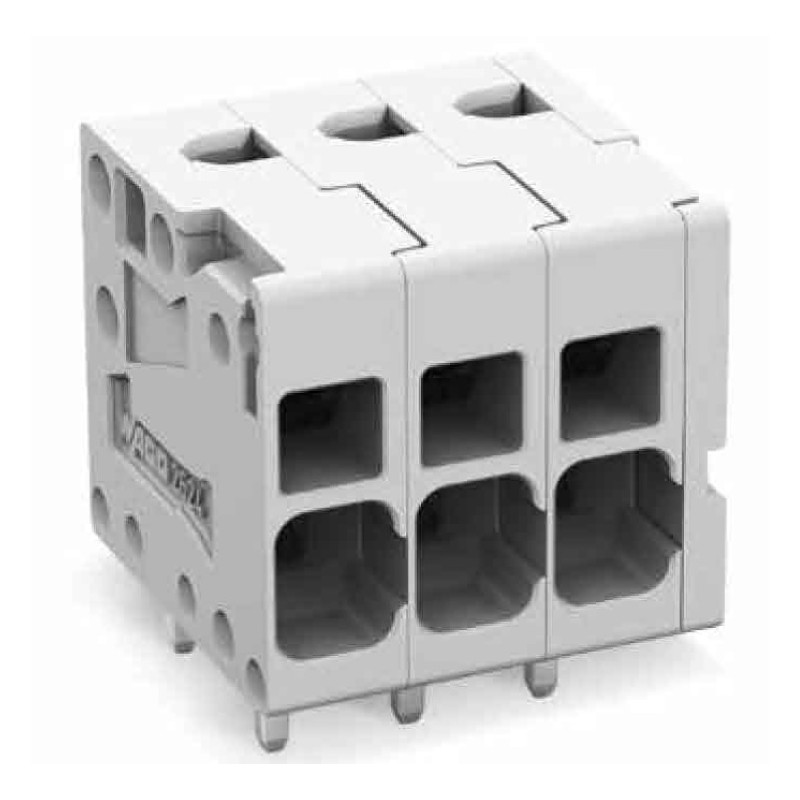

Wago spring force terminal series 2624

PCB terminal blocks (4mm²) with tool operation. We are offering various types of this Wago series in a straight or an angled design.

  • rated cross section single stranded wire: 0.2 to 6mm²
  • rated cross section fine stranded wire: 0.2 to 6mm²
  • stripped length: 10 to 12mm
  • insulating material: PA 6.6
  • temperature range: -60 to +105°C
  • flammability class: UL94V-0
  • colour: grey

2624-1103

109196 2624-1103 2624-1103 Wago spring force terminal series 2624. PCB terminal blocks (4mm²) with tool operation. We are offering various types of this Wago series in a straight or an angled design. rated cross section single stranded wire: 0.2 to 6mm² rated cross section fine stranded wire: 0.2 to 6mm² stripped length: 10 to 12mm insulating material: PA 6.6 temperature range: -60 to +105°C flammability class: UL94V-0 colour: grey

Specifications

manufacturer
Manufacturer's name 2624-1103
Design angled
Number of poles 3
Actuator tool
Data Sheet

Unit price

1,69 €

Stock: 30
Further delivery:
CW 18/2024

Minimum order quantity 5 units or
multiples of 5.
