> Passive elements>Resistors>Wire resistors>wire resistors, 0411 housing, 5%, 1W>0411 5% 6,8 R

Manufacturers

0411 5% 6,8 R

wirewound resistors

* housing: 0411
* taped
* wound on a ceramic core
* resistance wire securely crimped to the terminals
* small size
* electrical and mechanical stability and high reliability
* resistance tolerance: ±5%
* power rating (TU = 40°C): 1W
* temperature coefficient: ±100ppm/°C
* insulation resistance: >100MΩ

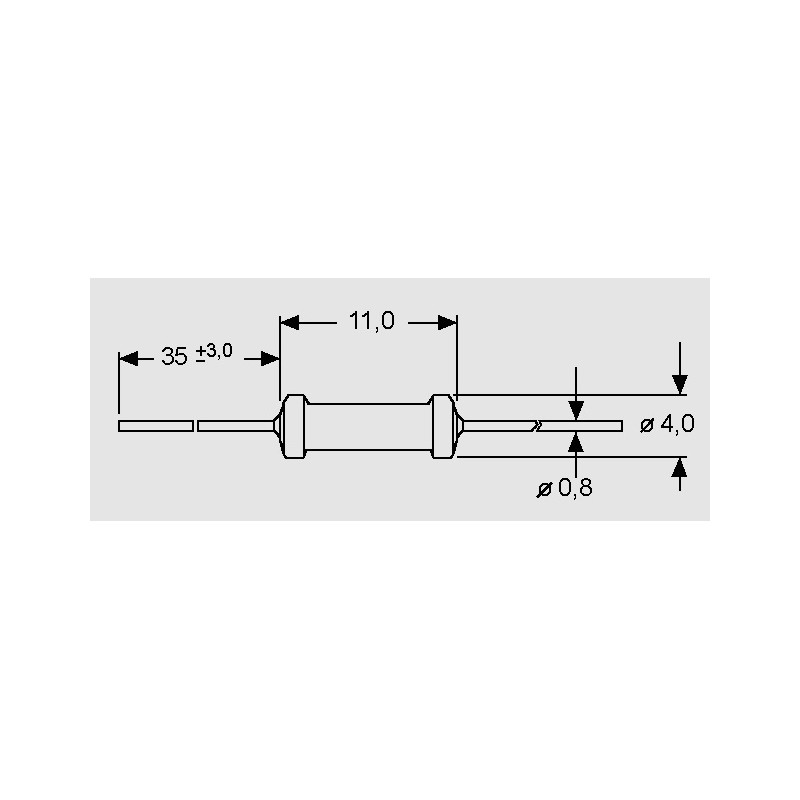

dimensions

0411 5% 6,8 R

42322 0411 5% 6,8 R KNP100JT-73-6R8 KNP100JT-73-6R8 wirewound resistors. * housing: 0411* taped* wound on a ceramic core* resistance wire securely crimped to the terminals* small size* electrical and mechanical stability and high reliability* resistance tolerance: ±5%* power rating (TU = 40°C): 1W* temperature coefficient: ±100ppm/°C* insulation resistance: >100MΩ

Specifications

manufacturer
Manufacturer's name KNP100JT-73-6R8
Design 0411
Resistance [Ω] 6,8
Power [W] 1
Tolerance [%] 5

Unit price

0,108 €

Stock: 4990
Further delivery:
CW 36/2024

Minimum order quantity 1 to 90 units or multiples of 100 plus 0 to 90 .
