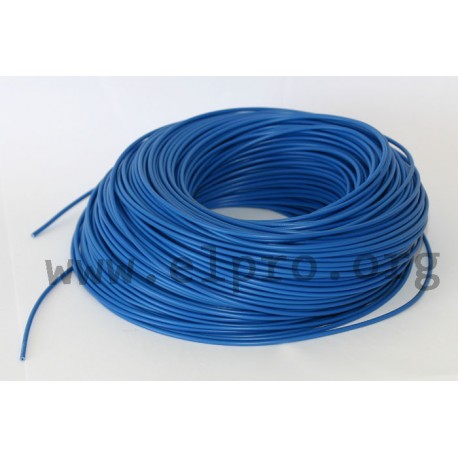

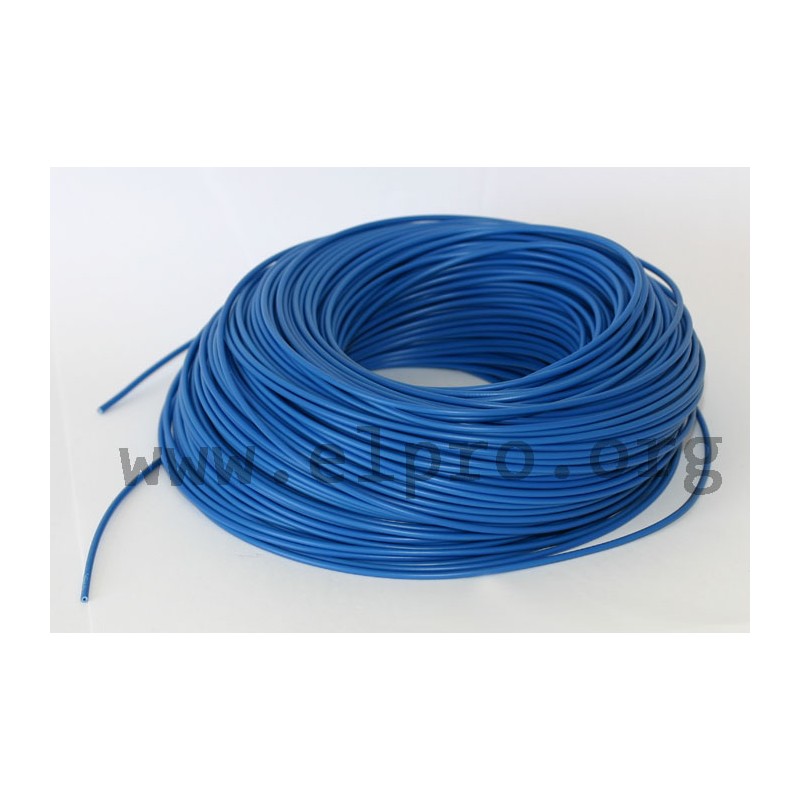

H05VK 0,5 blau

PVC stranded hook-up wires

• conductor cross-section: 0.5mm²
• colour: blue
• harmonized PVC stranded hook-up wires
• for internal wiring of devices
• being used to wire lighting, tubes, surfaces and concealed installations for signal systems
• stranded copper wire conductor according to VDE 0295 class 5
• insulated with PVC TI 1 according to HD 21.1 S3
• conductor identification meets VDE 0293
• outer diameter: 2.15mm
• rated voltage, UO / U: 300V/500V
• test voltage: 2000V
• conductor composition: 16x0.195mm
• minimum bend radius: 4 x diameter
• temperature range fixed installation: -40 to +70°C
• temperature range at installation: +5 to +70°C
• 1 pc. corresponds to a 100-meter ring in dispenser box

H05VK 0,5 blue

H05VK 0,5 blau

30065 H05VK 0,5 blau 20015003 100M KARTON 20015003 100M KARTON PVC stranded hook-up wires. • conductor cross-section: 0.5mm²• colour: blue• harmonized PVC stranded hook-up wires• for internal wiring of devices• being used to wire lighting, tubes, surfaces and concealed installations for signal systems• stranded copper wire conductor according to VDE 0295 class 5• insulated with PVC TI 1 according to HD 21.1 S3• conductor identification meets VDE 0293• outer diameter: 2.15mm• rated voltage, UO / U: 300V/500V• test voltage: 2000V• conductor composition: 16x0.195mm• minimum bend radius: 4 x diameter• temperature range fixed installation: -40 to +70°C• temperature range at installation: +5 to +70°C• 1 pc. corresponds to a 100-meter ring in dispenser box

Specifications

manufacturer
Manufacturer's name 20015003 100M KARTON
Colour blue
Cross section 0,5mm²

Unit price

14,59 €

Stock: 22
Further delivery:
CW 25/2024
